PPC-154 User’s Manual
30
3.
Lift the right side of the rear cover first to remove it.

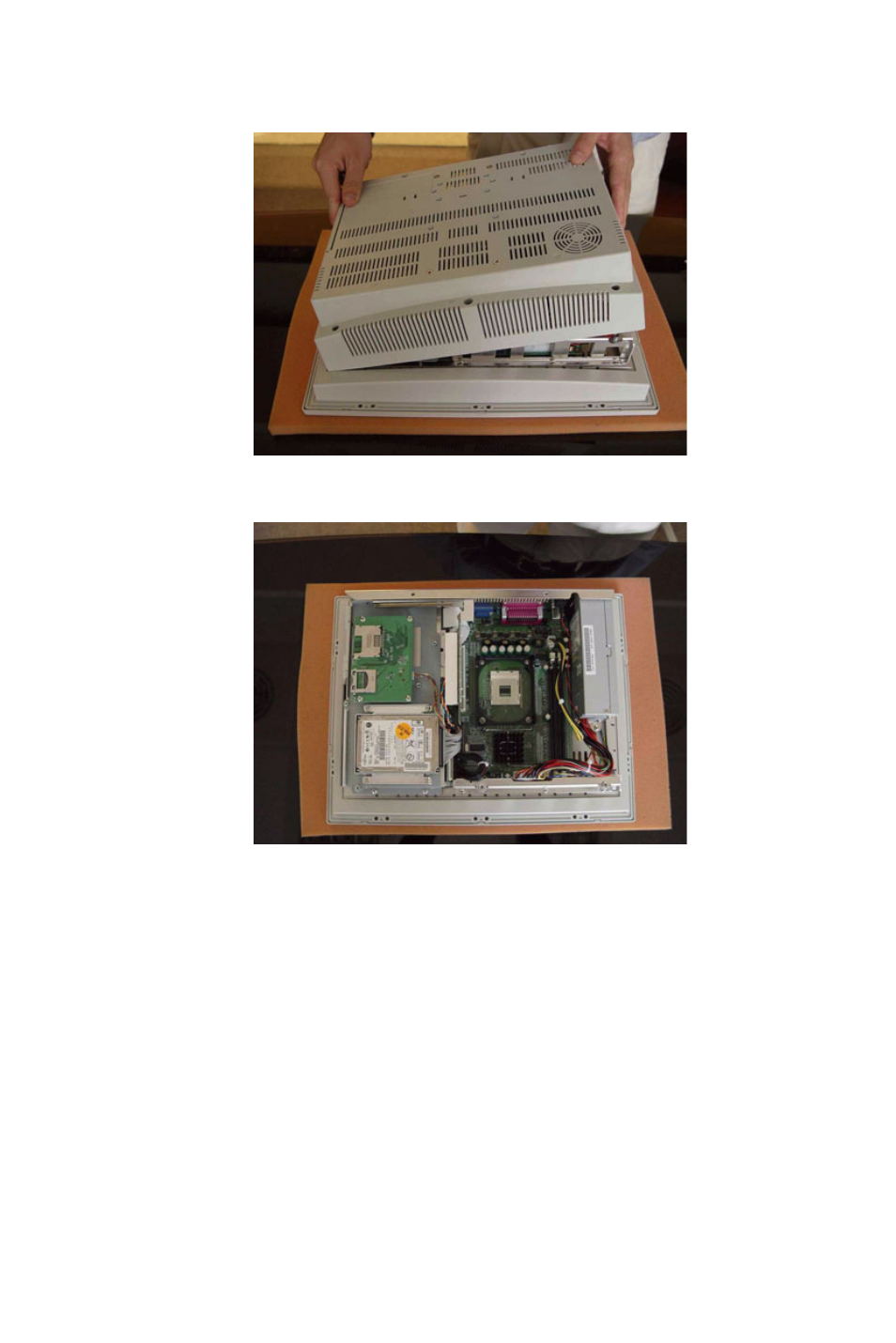

Figure 4.3: Opening the rear cover
Figure 4.4: The PPC without the Rear Cover
4.
Unscrew the four screws that secure the CPU cover.
5.
Remove the floppy drive, HDD, and CD-ROM cables; then remove
the side panel.
6.
Unscrew the ten screws of the shielding case, and remove it.
