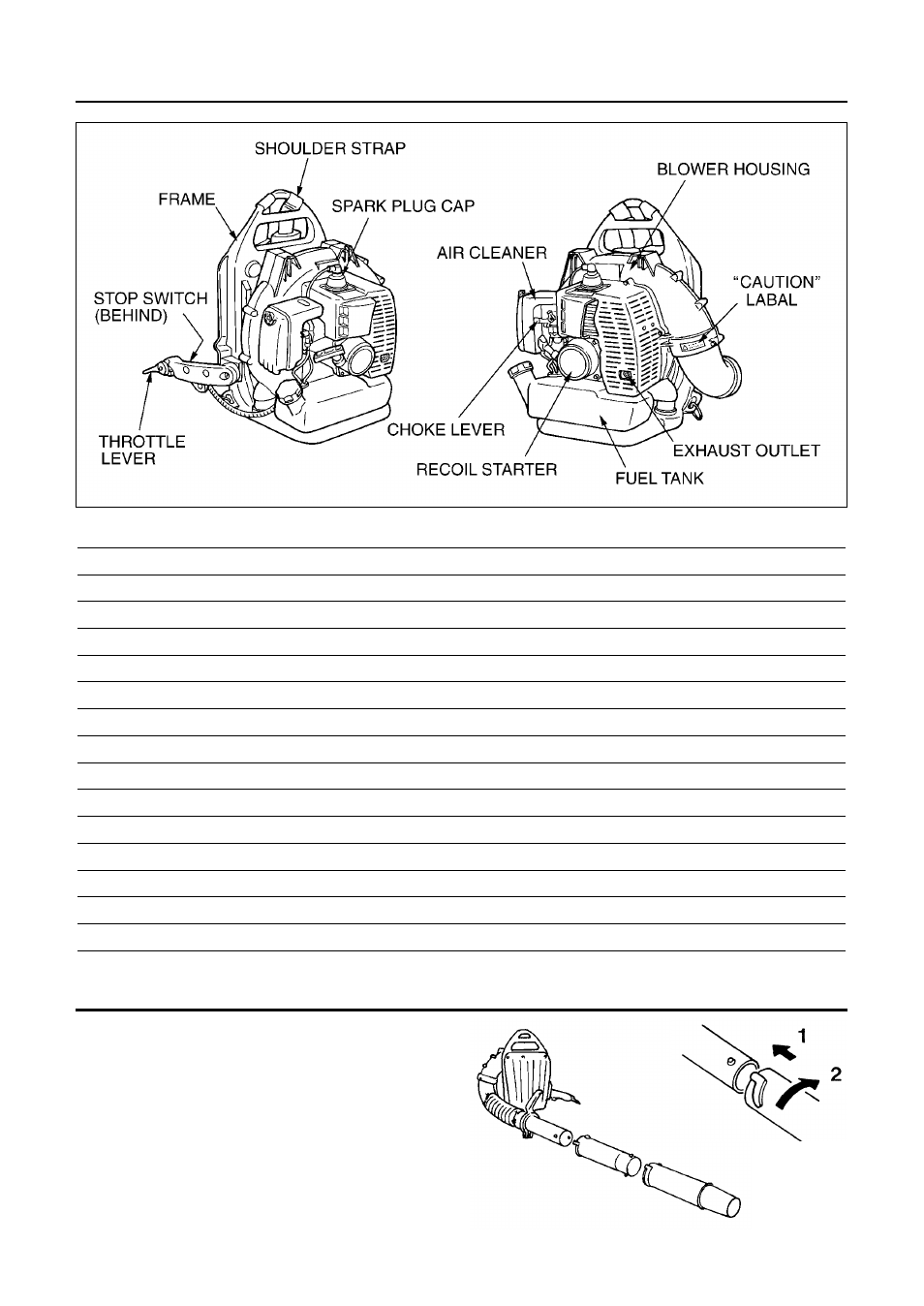

Parts Location & Specifications
Assembly
■ BLOWER TUBES
1.Connect the blower and swivel joint with
flexible hose. Clamp both ends of the
flexible hose securely with the hardware
supplied with the unit.
2.Align the protrusion and the groove
provided on the tube ends and twist the
tube until connection is locked up.
MODEL EB4300
Dimensions ( L x W x H ) mm ( in ) 480 x 535 x 495 (189 x 211 x 195)
Dry Weight kg ( lbs ) 8.4 (18.4)
Fuel Tank Capacity liter ( fl. oz ) 2.0 (67.6)
Engine Type Air cooled 2-cycle gasoline engine
Piston Displacement cc ( cu. in ) 41.5 (2.53)
Air Filter Regular size
Carburetor ( Diaphragm ) valve type Rotary
Ignition System C.D.I
Spark Plug Champion RJ6C (Noise-proof)
Muffler Spark arrester equipped
Operating Engine Speed rpm 2000 to 6500
Fuel Consumption liter/h ( fl. oz/h ) 1.7 (57.5)
Air Volume (w/std Pipes) cu. m/min ( cfm ) 12 (423)
Air Volume (w/o Pipes) cu. m/min ( cfm ) 16 (564)
Air Velocity m/sec ( mph ) 72 (160)
