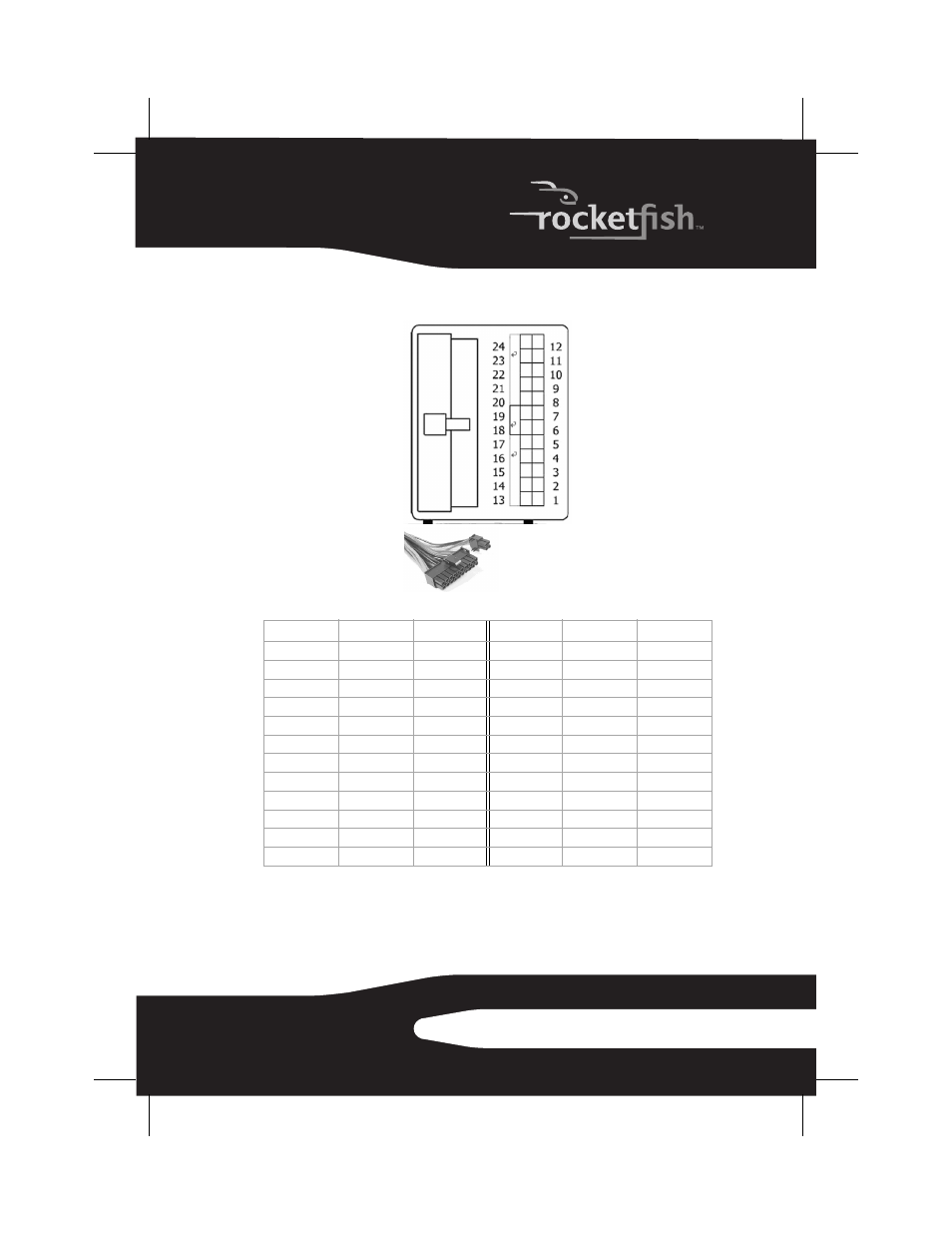

Main power connector
Signal Color Pin Pin Color Signal
+3.3 V Orange 1 13 Orange +3.3 V
+3.3 V Orange 2 14 Blue -12 V
COM Black 3 15 Black COM
+5 V Red 4 16 Green PS_ON#
COM Black 5 17 Black COM
+5 V Red 6 18 Black COM
COM Black 7 19 Black COM
PWR ON Gray 8 20 N/C N/C
+5 Vsb Purple 9 21 Red +5 V
+12 DC Yellow 10 22 Red +5 V
+12 DC Yellow 11 23 Red +5 V
+3.3 V Orange 12 24 Black COM
