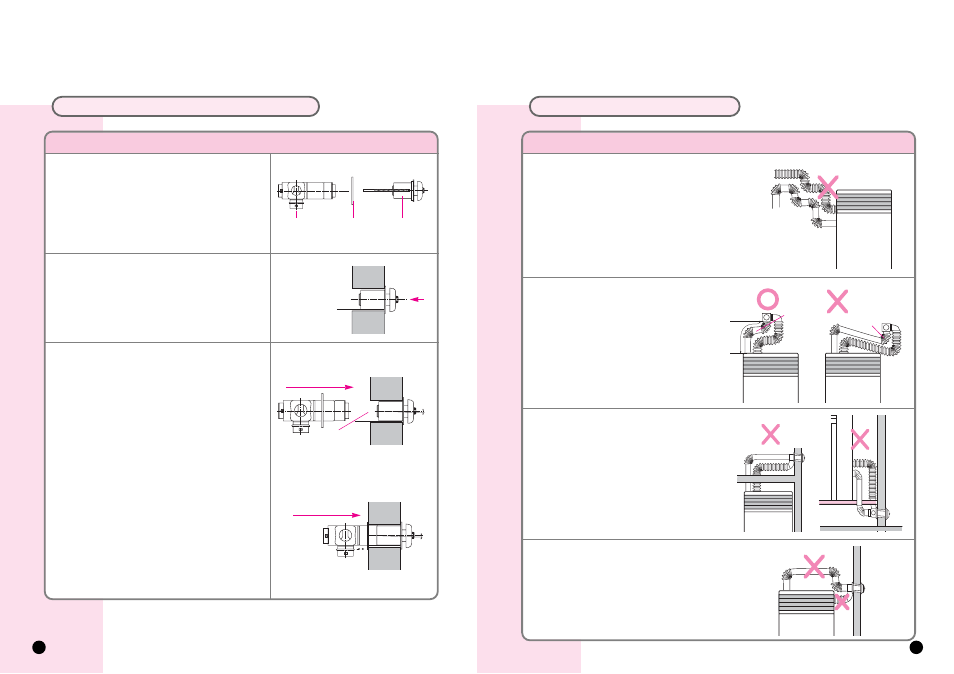

Separate the Terminal into 3 parts; sleeve plate,
connection manifold, and the terminal body.
ing
Push the terminal body through from outside.
ing
Insert the sleeve plate over the spring loaded
ties of the terminal body. Be careful not
to damage the O-ring on the body.
Pull the ties tight so the sleeve plate
sticks to the wall then fix the ties on sleeve plate
lugs. They will extend 2-3 slots past start point.
ties the tie.
stick through
Extension tube (optional extra) is needed for any
extension.
Maximum extension is 5m in length
This allows for a maximum of bends
Maximum 3 bends
Maximum 5m length
Condensed water can form in the tube
when extended. Make sure there are no
low spots. Do not run
If condensed water comes in to the
heater, the water tray can overflow. Do
not run flue more than 2m vertically.
s
of flue tube must be same.
Low Spot
23 24
This is done by pulling the outside terminal
from the connection manifold, then pull sleeve
off outer terminal. Spread springs out so they
are slightly bigger than the hole.
-Install the terminal body tilting at a slight angle to
the surface and stick it firmly to the wall.
-Put silicon between the wall and the flue terminal
so there is no gap after fixing the flue terminal.
- Flange is marked This way up with an arrow
or the word Top, and must be installed this
way.
- Secure the sleeve to the wall using the 4
holes of the flange.
- After sleeve is secure, cut off the rest of the
tie. (The parts that stick through to the inside.)
- Insert connection manifold into Sleeve.
Secure with the 3 screws provided. The
manifold can be turned to any angle.
