Ranger RCI-6300F TB - Manual (Page 23)

- 22 -
PART LIST:
RCI-6300F HP / RCI-6300F TB ROTARY SW P.C.B
ITEM REFERENCE NUMBER RANGER PART
NUMBER
DESCRIPTION
1 EPT690020Z ROTARY SW P.C.B
2 R300-R310,D325,
D331,D336
RCY010004Z 0 OHM 0.1W
3 R312-R325 RCY011024Z 1K OHM 0.1W
4 R327 RCY012224Z 2.2K OHM 0.1W
5 R326 RCY014724Z 4.7K OHM 0.1W
6 D340 EDSS00355Y DIODE 1SS355
7 Q304 TY2SC2712G TR 2SC2712GR
8 J303-J305 EX07N48223 PCB CONN/S 2PIN
9 J301 EX07N48209 PCB CONN/S 10PIN
10 S301 EWRT32000S ROTARY SW
REMARK:

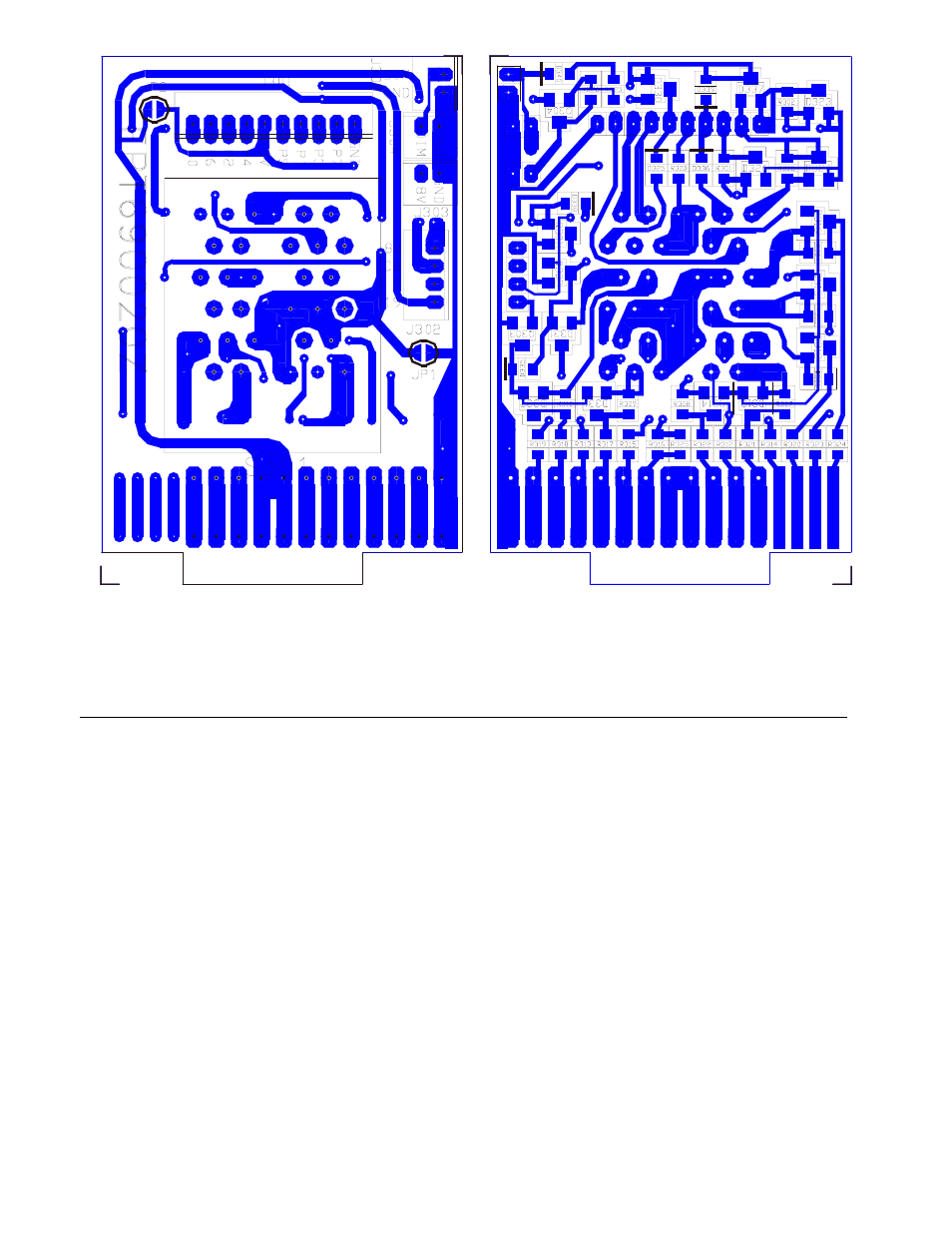

LEFT: COMPONENT SIDE (BLUE)
RIGHT: COPPER SIDE (BLUE)
