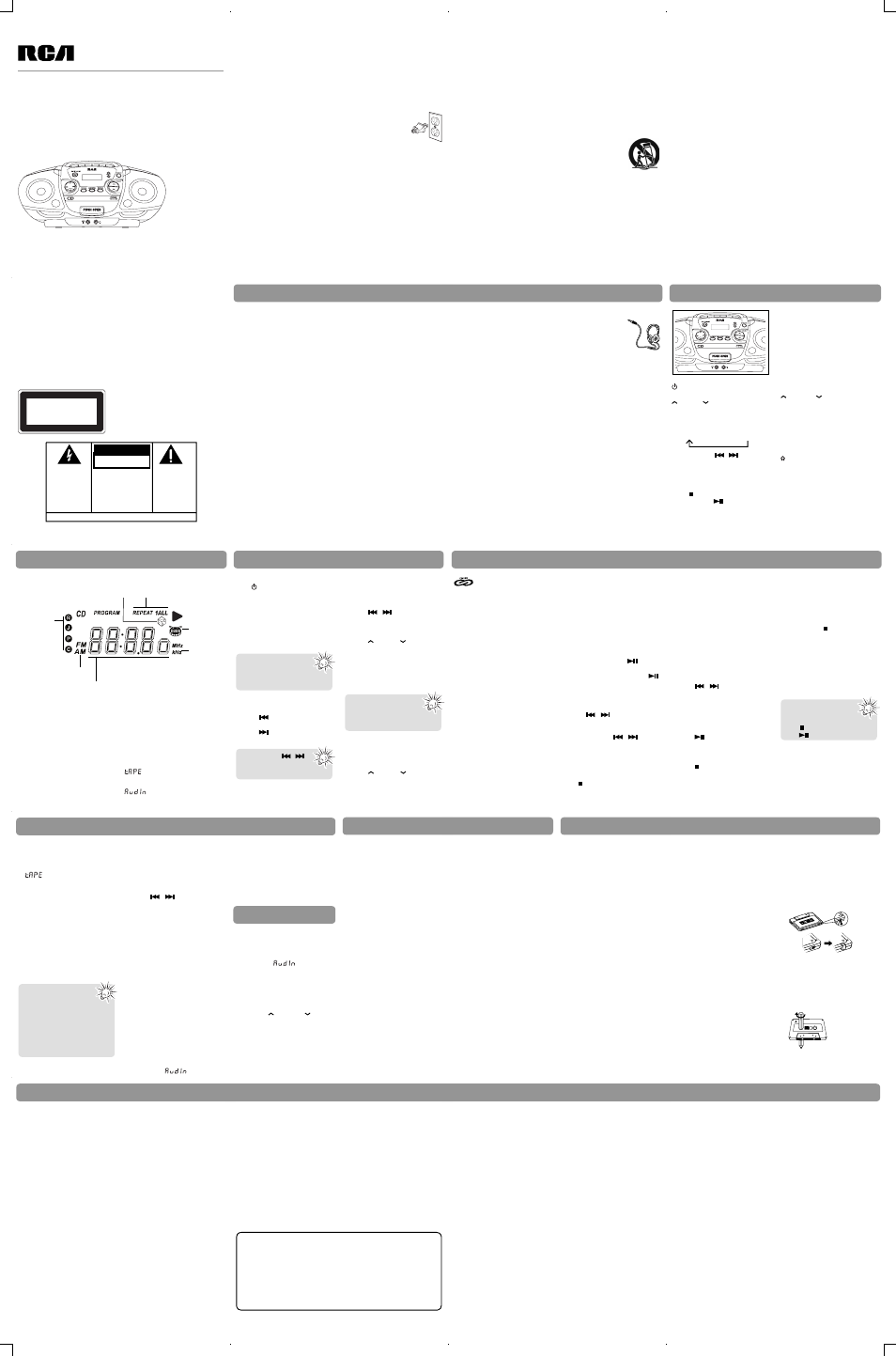

BAND / MODE –
In radio mode – Selects radio
band.
In CD mode – Selects among
playback modes (repeat 1 / repeat
all / random).
EQ / DBBS – Press to select among
sound effects (Flat / Rock / Jazz
/ Pop / Classic); press and hold
to turn DBBS (digital bass boost
system) On/Off.
VOLUME – Increases or
decreases output volume.
PUSH OPEN – Opens the CD door.
PUSH TO CLOSE – Push to close
the CD door.
AUX IN – Connects external
device with an audio cable (not
provided).
PHONE – connects headphone.
Cassette Player
REC – Starts tape recording.
PLAY – Starts tape playback.
REW – Rewinds tape.
FWD – Fast forwards tape.
STOP/EJECT – Stops tape play-
back, winding or recording, opens
cassette door.
PAUSE – Pauses tape playback.
user manual
manual de usuario
EN/E
It is important to read this instruction prior to using your new product for the fi rst time.
Es importante leer este manual antes de usar por vez primera su equipo.
RCD175
v1.0 (EN/E) PLEASE READ AND SAVE THIS FOR FUTURE REFERENCE
IMPORTANT SAFETY INSTRUCTIONS
Before you begin General controls
Display CD player
Tape player
Limited warranty
Important Battery Precautions
• Any battery may present a risk
of fi re, explosion, or chemical
burn if abused. Do not try to
charge a battery that is not
intended to be recharged, do
not incinerate, and do not
puncture.
• Non-rechargeable batteries,
such as alkaline batteries, may
leak if left in your product for
a long period of time. Remove
the batteries from the product
if you are not going to use it
for a month or more.
• If your product uses more
than one battery, do not mix
types and make sure they are
inserted correctly. Mixing types
or inserting incorrectly may
cause them to leak.
• Discard any leaky or deformed
battery immediately. They
may cause skin burns or other
personal injury.
• Batteries shall not be exposed
to excessive heat such as sun-
shine, fi re or the like.
• Please help to protect the
environment by recycling or
disposing of batteries accord-
ing to federal, state, and local
regulations.
Some of the following informa-
tion may not apply to your par-
ticular product; however, as with
any electronic product, precau-
tions should be observed during
handling and use.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near
water.
• Clean only with dry cloth.
• Do not block any ventilation
openings. Install in accordance
with the manufacturer’s in-
structions.
• Do not install near any heat
sources such as radiators, heat
registers, stoves, or other ap-
paratus (including amplifi ers)
that produce heat.
• Do not defeat the safety
purpose of the polarized or
grounding-type plug. A polar-
ized plug has two blades with
one wider than the other. A
grounding type plug has two
blades and a third grounding
prong. The wide blade or the
third prong is provided for
your safety. If the provided
plug does not fi t into your
outlet, consult an electrician
for replacement of the obso-
lete outlet.
• Protect the power cord from
being walked on or pinched
particularly at plugs, conve-
nience receptacles, and the
point where they exit from the
apparatus.
• Only use attachments/accesso-
ries specifi ed by the manufac-
turer.
• Use only with the
cart, stand, tripod,
bracket, or table
specifi ed by the
manufacturer, or
sold with the ap-
paratus. When a
cart is used, use caution when
moving the cart/apparatus
combination to avoid injury
from tip-over.
• Unplug this apparatus during
lightning storms or when un-
used for long periods of time.
• Refer all servicing to qualifi ed
service personnel. Servicing is
required when the apparatus
has been damaged in any way,
such as power-supply cord or
plug is damaged, liquid has
been spilled or objects have
fallen into the apparatus, the
apparatus has been exposed
to rain or moisture, does not
operate normally, or has been
dropped.
• IF YOUR PRODUCT OPERATES
ON BATTERIES, adhere to the
following precautions:
A. Any battery may leak
electrolyte if mixed with a dif-
ferent battery type, if inserted
incorrectly, or if all batteries
are not replaced at the same
time.
B. Any battery may leak elec-
trolyte or explode if disposed
of in fi re or an attempt is
made to charge a battery not
intended to be recharged.
C. Discard leaky batteries
immediately. Leaking batter-
ies can cause skin burns or
other personal injury. When
discarding batteries, be sure to
dispose of them in the proper
manner, according to provin-
cial and local regulations.
Radio
Note: Look in the battery compartment to fi nd the AC power cord.
Nota: Busque el cable de potencia AC dentro del compartimiento de baterías.
FCC information
This device complies with part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received, in-
cluding interference that may cause
undesired operation.
This equipment has been tested and
found to comply with the limits for
a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits
are designed to provide reasonable
protection against harmful interfer-
ence in a residential installation.
This equipment generates, uses and
can radiate radio frequency energy
and, if not installed and used in ac-
cordance with the instructions, may
cause harmful interference to radio
communications.
However, there is no guarantee
that interference will not occur in a
particular installation. If this equip-
ment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning
the equipment off and on, the user
is encouraged to try to correct the
interference by one or more of the
following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between
the equipment and receiver.
– Connect the equipment into an out-
let on a circuit different from that
to which the receiver is connected.
This product complies with DHHS
Rules 21 CFR Subchapter J. Appli-
cable at the date of manufacture.
For your safety
The AC power plug is
polarized (one blade is
wider than the other)
and only fi ts into AC
power outlets one way.
If the plug won’t go
into the outlet completely, turn the
plug over and try to insert it the
other way. If it still won’t fi t, contact
a qualifi ed electrician to change the
outlet, or use a different one. Do not
attempt to bypass this safety feature.
CAUTION: TO PREVENT ELECTRIC
SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
– Consult the dealer or an experi-
enced radio/TV technician for help.
WARNING: Changes or modifi cations
to this unit not expressly approved by
the party responsible for compliance
could void the user's authority to
operate the equipment.
Technical information
Product: Portable CD PLL Radio
Cassette Recorder
Brand: RCA
Model: RCD175
Power Supply: 120V ~ 60Hz
Power Consumption: 15 Watts
Unit Size ( H x W x D inches):
6.2 x 14.7 x 10.2
Weight: 5.77 lbs
CD player: Response curve (+/- 2dB):
60Hz to 20 kHz
Rating Plate: Look for it at the
bottom of the set.
For your records
In the event that service should be
required, you may need the model
number. In the space below, record
the date and place of purchase:
Model No.
Date of Purchase
Place of Purchase
Service information
This product should be serviced
only by those specially trained in
appropriate servicing techniques.
For instructions on how to obtain
service, refer to the warranty
included in this Guide.
Useful advice
• Do not use your system im-
mediately after transporting it
from a cold place to a warm
place, as condensation may
cause the system to malfunc-
tion. If moisture forms inside
this system, it may not oper-
ate properly. To correct the
problem, turn off the power
and wait about 30 minutes for
AC power
Plug the power supply cord into
the AC power jack on the back of
the unit, and into an AC power
supply outlet that accepts the plug
supplied with your unit.
Battery power
You can insert 6 D-sized alkaline
batteries (not supplied) and you
can take your stereo just about
anywhere. Open the battery
compartment door on the back of
the unit by pressing down on the
arrow and pulling out the cover.
Insert batteries in the battery
compartment. 3AA-sized batteries
(not supplied) are needed to keep
radio station memory.
moisture to evaporate.
• This system is fi tted with a
laser. To avoid accidents, it is
to be dismantled by qualifi ed
technicians only.
• Never leave the tray open
as dust could cover the laser
lens and/or the tray could be
bumped into accidentally.
• Do not place the system near
wet areas such as bathrooms
and pool side. Avoid storing
the system at humid places or
near abnormally heated areas.
• Power is continuously supplied
to the system. To disconnect
power completely, unplug the
mains plug from the power
outlet.
• Ensure minimum distance
around the apparatus for suffi -
cient ventilation. The ventila-
tion should not be impeded
by covering the ventilation
openings with items, such as
newspaper, etc.
• No naked fl ame source, such
as lighted candles, should be
placed on the apparatus.
• Attention should be paid to
environment aspects of battery
disposal.
TRACK / TUNE / –
In radio mode – Tunes up or down
radio frequency.
In CD mode – Searches/ skips CD
track backward or forward.
STOP – stops CD playback.
PLAY / PAUSE
– Starts or
pauses CD play.
PROGRAM –
In radio mode – Sets radio preset
channels.
In CD mode – Enters program mode.
ON / STANDBY – Turns the unit
on / off.
PRESET – Accesses preset
radio channels.
SOURCE – Selects among radio,
tape, CD and AUX mode.
RADIO > TAPE > CD > AUX
Preset EQ
settings:
Rock, Jazz,
Pop, Classic
Digital
Bass Boost
System
Repeat mode
REPEAT 1 - repeat current track
REPEAT ALL - repeat whole disc
Random Playback
Radio band
Shows volume level when adjusting volume
In CD mode
- Track number (shows during disc playback)
- Total track number in CD stop mode
- Program location
- Elapsed playback time
In Tuner mode
- Preset location, radio frequency
In Tape mode
- Displays “
” in tape mode.
In AUX mode
- Displays “
” in AUX mode.
Tuner
frequency
unit
Select radio mode
Press ON / STANDBY to turn on
the unit.
Press SOURCE until RADIO mode
is selected.
Select radio band
Press BAND / MODE to select
between FM and AM band.
Tuning to a station
• Press to tune down radio
frequency.
• Press to tune up radio
frequency.
Setting preset stations
manually
Extend or reposition the
antenna for better FM
reception. Rotate the
unit for better AM reception.
Using presets
1. Press BAND / MODE to select
between bands.
2. Press PRESET repeatedly
to access the desired preset
stations.
1. In radio mode, press BAND /
MODE to select radio band.
2. Press / to select the sta-
tion to save as a preset station.
3. Press PROGRAM. Program icon
fl ashes.
4. Press PRESET repeatedly
to assign the preset station
number.
5. Press PROGRAM to confi rm.
Program icon stops fl ashing.
6. Repeat steps 2 to 5 to set ad-
ditional preset stations.
Press and hold /
to automatically tune to
the next station.
There are 10 preset loca-
tions for FM band and
10 preset location for
AM band on this unit.
Playing a tape
1. When the unit is on, press
SOURCE until TAPE mode is
selected. The tape indicator “
” lights on the display.
2. Press STOP/EJECT to open the
tape deck door.
3. Insert a tape into the door and
push the door closed.
4. Press REW or FWD to wind the
tape to the desired starting
position. Press STOP/EJECT to
stop winding.
5. Press PLAY to start playback.
• Press PAUSE to pause playback
(press again to release the but-
ton to resume playback).
• Press STOP/EJECT to stop play-
back.
Recording to tape
From radio
1. Insert a tape into the deck.
2. Press SOURCE until RADIO
mode is selected.
3. Press BAND / MODE to access
the desired radio band.
4. Press / to tune to the
station to be recorded.
5. Press REC and PLAY together
to begin recording.
6. Press PAUSE or STOP to pause or
stop the recording respectively.
From CD
1. Insert a tape into the deck.
2. Press SOURCE until CD mode is
selected.
3. Insert the disc to be recorded.
4. Select the track or program to
be recorded.
5. Press REC and PLAY together
to begin recording.
6. Play the track or program to
be recorded.
7. Press PAUSE or STOP to pause or
stop the recording respectively.
From auxiliary input
1. Insert a tape into the deck.
2. Press SOURCE until the
indicator “ ” lights on
• Be sure to slide the
cassette into the tape
slot on the door.
Do not place the tape
directly onto the tape
mechanism.
• For better recording
quality, use normal bias
tape (Type I) only.
This unit is compatible
with audio CD-R/RW discs.
Selecting CD mode
When the unit is on, press SOURCE
until CD mode is selected.
Loading disc
1. Press the PUSH OPEN button
to slide disc tray out.
2. Place a disc on the disc tray
with the label side facing up.
3. Push the disc tray back in.
The total number of tracks on the
disc can be read from display.
Play and pause
1. In stop mode, press to
begin CD playback.
2. During CD playback, press
to pause playback. Press again
to resume.
Skip and search
1. Press / to skip to the
previous or next track respec-
tively.
2. Press and hold / to
search quickly current track
backward or forward respec-
tively.
Stop playback
Press to stop playback.
Notes on CD-R/RW
• Do not affi x any type of labels
to either side (recordable or
labeled side) of a CD-R/RW disc
as this may result in the unit
malfunctioning.
• To avoid damages to the CD-
R/RW disc, do not open the
disc compartment door while
the disc is being read.
• Playback capability for CD-RW
discs may vary due to varia-
tions in the quality of the CD-
RW disc and the recorder used
to create the disc.
Play mode
Press BAND / MODE to select
among playback mode (repeat
current track / repeat all /
random). Selection made is
indicated by icons on display.
Programming
1. In stop mode, press PROGRAM
to enter program setting mode.
The program location shows
briefl y and then the track
number and program icon
fl ash on the display.
2. Press / to select the
track you want to program.
3. Press PROGRAM again to con-
fi rm your selection and access
the next program location.
4. Repeat steps 2 to 3 to program
to a maximum of 20 tracks.
5. Press in program mode
to start program playback
(PROGRAM indicator lights on
the display).
• Press to return to stop
mode.
Displaying program list
In stop mode, press PROGRAM
repeatedly to show program list.
Exit program playback mode
In program playback mode,
program mode will be deactivated
once you press to end program
playback.
Clearing program list
Your program will be erased once
you open the disc compartment
door, change to another source
mode (e.g. radio) or power off
the unit.
If you are in normal play-
back mode but want to
play the saved program,
press , then PROGRAM and
then .
Troubleshooting tips
System doesn’t turn on
• Unplug the unit for a moment, and then plug it back in.
• Check the outlet by plugging in another devices.
No sound
• Adjust volume setting.
• Make sure you’ve selected the correct function.
Poor radio reception
• Adjust the antenna for better reception.
• Try turning off electrical appliances near the unit, such as hair dryers,
vacuum cleaners, or fl uorescent lights.
CD doesn’t play
• Make sure you’ve put a CD in the tray.
• Make sure the CD’s label is facing up.
• Try another CD.
• Make sure that Pause mode is not activated.
• Make sure CD function is selected.
CD sound skips
• Clean the CD.
• Check CD for warping, scratches, or other damage.
• Check for vibration or shock that may affect the unit; move the set if
necessary.
ESD Remark:
In case of misfunction due to electrostatic discharge just reset the
product (disconnect and reconnect of the power source may be required)
to resume normal operation.
Cleaning the exterior
• Disconnect the system from
AC power before cleaning the
exterior of the unit with a soft
dust cloth
• Clean the exterior with a soft
clean cloth or slightly moist-
ened chamois leather. DO NOT
use solvents as it may cause
damage to the unit.
Handling CDs
• Do not touch the signal sur-
faces. Hold CDs by the edges,
or by one edge and the hole.
• Do not affi x labels or adhesive
tapes to the label surfaces.
Do not scratch or damage the
label.
• CDs rotate at high speeds
inside the player. Do not use
damaged (cracked or warped)
CDs
• Make sure CDs are stored in
their original case after use.
Keep them away from damp,
humid or abnormally heated
places.
Cassettes
• To protect your recordings
from accidental erasure on one
or both sides of your cassette,
snap out the tab at the top of
the cassette. If you decide later
to record on the tape, seal the
hole with a piece of adhesive
tape. (Refer to diagram)
• Quit Slacking - A little bit of
slack in your tapes can cause
scratches on the tape, or worse
yet, the tape could break. If
you notice some slack in the
tape, use a pencil to tighten it
up before you insert it.
Safety precautions
• Never open the cabinet under
any circumstances. Any repairs
or internal adjustments should
be made only by a trained
technician.
• Do not touch the player with
wet hands. If any liquid enters
the player cabinet, take the
player to a trained technician
for inspection.
• This compact disc player uses
a laser to read the music on
the disc. The laser mechanism
corresponds to the cartridge
and stylus of a record player.
Although this product incorpo-
rates a laser pick-up lens, it is
completely safe when operated
according to directions.
• The apparatus shall not be ex-
posed to dripping or splashing
and that no objects fi lled with
liquids, such as vases, shall be
placed on the apparatus.
More information
CD lens care
• When your CD lens gets dirty
it can also cause the system to
output poor sound quality. To
clean the lens you will need
to purchase a CD lens cleaner
which can maintain the output
sound quality of your system.
For instructions on cleaning
the CD lens, refer to the ones
accompanying the lens cleaner.
Cleaning CDs
• Dirty CDs can cause poor
sound quality. Always keep CDs
clean by wiping them gently
with a soft cloth from the
inner edge toward the outer
perimeter.
• If a CD becomes dirty, wet a
soft cloth in water, wring it
out well, wipe the dirt away
gently, and then remove any
water drops with a dry cloth.
• Do not use record cleaning
sprays or antistatic agents on
CDs. Also, never clean CDs with
benzene, thinner, or other
volatile solvents which may
cause damage to disc surface.
Headset safety
• Have a Blast-
Just Not in your
eardrums! Make
sure you turn down
the volume on the
unit before you put on head-
phones. Increase the volume
to the desired level only after
headphones are in place.
• Do not play your headset at
high volume. Hearing experts
warn against extended high-
volume play.
• If you experience ringing in
your ears, reduce volume or
discontinue use.
• You should use with extreme
caution or temporarily
discontinue use in potentially
hazardous situations.
Even if your headset is an
open-air designed to let you
to hear outside sounds, do not
turn up the volume so high
that you are unable to hear
what is around you.
IMPORTER
AVC Multimedia,
170 Esna Park, Unit 6, Markham,
Ontario L3R 1E3 Canada
© 2008 AVC Multimedia
http: //www.1800customersupport.com/RCA
http: //www.rcaaudiovideo.com
Auxiliary input
1. Connect the auxiliary device to
the AUX IN jack with an audio
cable (not provided).
2. Press SOURCE until the
indicator “ ” lights on
the display.
3. Start playback from the auxil-
iary device.
4. Adjust the auxiliary device to
mid-range volume and adjust
the the master volume by
pressing
VOLUME .
• Do not turn the volume of the
auxiliary device too high as this
may affect the sound quality.
• For other playback operations,
control them on your auxiliary
device.
AVC MULTIMEDIA (“AVC”) makes the following limited warranty. This
limited warranty extend to the original consumer purchaser and is limited
to non-commercial use of the product.
One Year Parts & Labor Warranty
AVC products purchased in the United States are warranted to be free
from defects in materials or workmanship for a period of one year from
the date of their original retail purchase. If the unit fails to conform to this
warranty, we will service the product using new or refurbished parts and
products, at AVC’s sole discretion.
During a period of one year from the effective warranty date, AVC will
provide, when needed, service labor to repair a manufacturing defect at its
designated Service Center. To obtain warranty service in the Untied States,
you must fi rst call our Customer Support Center at 1-866-444-5746
or 1-800-252-6123, during the hours listed in the box on the right.
The determination of service will be made by AVC Customer Support.
PLEASE DO NOT RETURN YOUR UNIT TO AVC WITHOUT PRIOR
AUTHORIZATION. New or remanufactured replacements for defective
parts or products will be used for repairs by AVC at its designated Service
Center for one year from the effective warranty date. Such replacement
parts or products are warranted for an additional one year from the
date of repair or replacement. The Customer will be required to ship
the unit to the Service Center indicated at the time Customer Support is
contacted to make the necessary repairs. The customer is responsible for all
transportation charges to the service facility.
Packaging and Shipping Instruction
When you send the product to the AVC service facility you must use the
original carton box and packing material or an equivalent as designated by
AVC.
LIMITED WARRANTY
Your Responsibility
1) You must retain the original sale receipt to provide proof of
purchase.
2) These warranties are effective only if the product is purchased and
operated in the U.S.A. or Canada.
3) Warranties extend only to defects in material or workmanship, and do
not extend to any product or parts which have been lost or discarded,
or damage to product or parts caused by misuse, accident, improper
operation or maintenance, or use in violation of instructions provided
with the product, or to product which has been altered or modified
without authorization of AVC, or to products or parts thereof which
have had the serial number removed or changed.
Out of Warranty
All warranties implied by state law, including the implied warranties
of merchantability and fitness for a particular purpose, are expressly
limited to the duration of the limited warranties set forth above. With
the exception of any warranties implied by state law as hereby limited,
the foregoing warranty is exclusive and in lieu of all other warranties,
guarantees, agreements and similar obligations of manufacturer or seller
with respect to the repair or replacement of any parts. In no event shall
AVC be liable for consequential or incidental damages.
No person, agent, distributor, dealer or company is authorized to change,
modify or extend the terms of these warranties in any manner whatsoever.
The time within action must be commenced to enforce any obligation of
AVC arising under the warranty or under any statute, or law of the United
States or any state thereof, is hereby limited to one year from the date
of purchase. This limitation does not apply to implied warranties arising
under state law.
This warranty gives you specifi c legal rights and you may also have other
rights, which may vary, from state to state. Some states do not allow
limitation on how long an implied warranty lasts, when an action may
be brought, or the exclusion or limitation of incidental or consequential
damages, so the above provisions may not apply to you.
For more information on other products and services, please visit our web
site at
www.1800customersupport.com/RCA
Important:
Also keep your "Bill of Sale" as proof of purchase.
Model no. ..............................................................................
Product name ...................................................................................
Type of set .................................................................................
Serial no. ..................................................................................
I n v o i c e n o . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Date purchased ..........................................................................
Dealer name ..........................................................................
FOR SERVICE AND REPAIR, PLEASE VISIT
www.1800customersupport.com/RCA
Specifications and external appearance are subject to change without
notice.
In the event your product requires repair after the limited
warranty period has expired, please contact our Customer
Support Center at 1 - 8 6 6 - 4 4 4 - 5 7 4 6 , 1 - 8 0 0 - 2 5 2 - 6 1 2 3 o r
www.1800customersupport.com/RCA
Hours: Monday–Thursday: 9am–7pm, Friday: 9am–5pm,
Saturday: 9am–NOON Eastern time.
Important:
You are responsible for any transportation, shipping or insurance
relative to the return of product to our Product Returns Center.
the display.
3. Start playback from the auxil-
iary device.
4. Press REC and PLAY together
to begin recording.
5. Press PAUSE or STOP to pause or
stop the recording respectively.
WARNING: TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
SEE MARKING ON BOTTOM / BACK OF PRODUCT
CAUTION
THE LIGHTNING
FLASH AND
ARROWHEAD WITHIN
THE TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
"DANGEROUS
VOLTAGE" INSIDE THE
PRODUCT.
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR
BACK). NO USER-
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THE EXCLAMATION
POINT WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
IMPORTANT
INSTRUCTIONS
ACCOMPANYING
THE PRODUCT.
WARNING : MAINS PLUG IS USED
A S DISCONNEC T DE VICE AND IT
SHOULD REMAIN READILY OPERABLE
DURING INTENDED USE. IN ORDER TO
DISCONNECT THE MAINS PLUG FROM
MAINS COMPLETELY, THE MAINS
PLUG SHOULD BE DISCONNECTED
FROM THE MAINS SOCKET OUTLET
COMPLETELY.
Portable Cart
Warning
CLASS 1 LASER PRODUCT
LASER KLASSE 1
APPAREIL A LASER DE CLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPP ARAT
344A2555-0001
