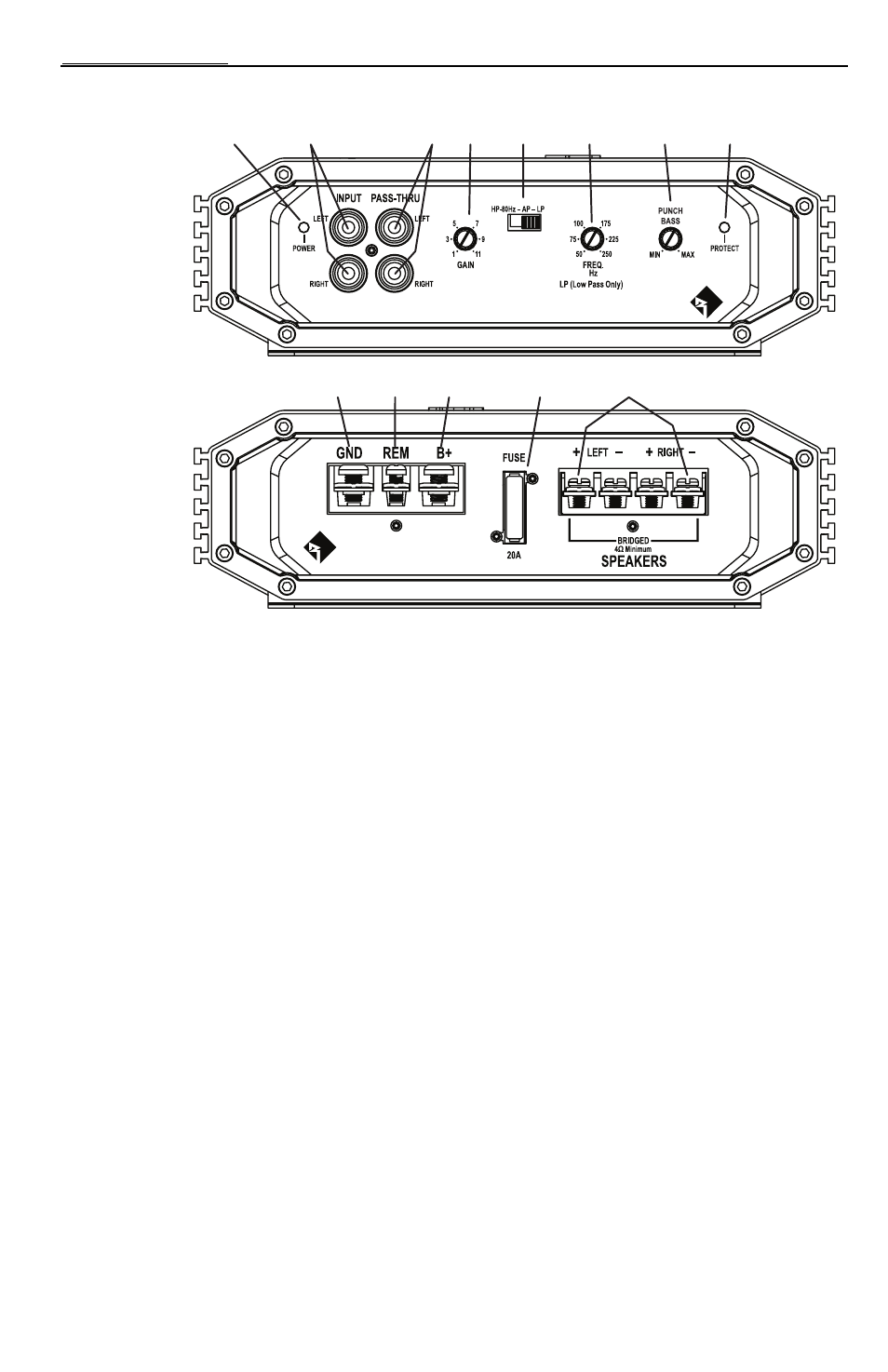

R150-2
1.
Power LED – This LED illuminates when the unit is turned on.
2.
Protect LED – This LED illuminates if a short circuit or to low of an impedance is detected at the
speaker connections.The amplifier will automatically shut down if this occurs.
3.
RCA Input Jacks – The industry standard RCA jacks provide an easy connection for signal level input.
They are nickel-plated to resist the signal degradation caused by corrosion.
4.
RCA Pass-Thru Jacks – This Pass-Thru provides a convenient source for daisy-chaining an additional
amplifier without running an extra set of RCA cables from the front of the vehicle to the rear amplifier
location.
5.
Gain Control – The input gain control is preset to match the output of most source units.
6.
Crossover Switch – Selectable switch for 80Hz High-Pass (HP),All Pass (AP), or Low-Pass (LP)
operation.
7.
Variable Crossover (Low Pass Only) – Is a built-in 12dB/octave Butterworth filter with a
crossover point variable from 50Hz to 250Hz.
8.
Punch Bass – This is a Punch bass control adjustable up to 12dB @ 45Hz.
9.
Power Terminals – The power and ground are nickel-plated clamp wire connectors and will
accommodate 4 AWG #8 (up to 1/2”) spade or ring style connectors.
10. REM Terminal – The nickel-plated clamp wire connector and will accommodate 8 AWG #8 (up to 3/8”)
fork or ring style connectors.This terminal is used to remotely turn-on and turn-off the amplifier when
+12V DC is applied.
11. Fuse – This ATC fuse is easily accessible in case of failure.Always replace fuses with same type and rating.
See Specifications for fuse ratings.
12. Speaker Terminals – The heavy duty, nickel-plated clamp wire connectors (+ and -) will accommodate 8
AWG #8 (up to 3/8”) spade or ring style connectors.
