2
Before beginning any installation, follow these simple rules:
1. Be sure to carefully read and understand the instructions before attempting to
install these speakers.
2. For safety, disconnect the negative lead from the battery prior to beginning the
installation.
3. For easier assembly, we suggest you run all wires prior to mounting your speakers
in place.
4. Use high quality connectors for a reliable installation and to minimize signal or
power loss.
5. Think before you drill! Be careful not to cut or drill into gas tanks, fuel lines,
brake or hydraulic lines, vacuum lines or electrical wiring when working on any
vehicle. If installation in a boat, take care not to cut or drill through the main hull.
6. Never run wires underneath the vehicle. Running the wires inside the vehicle or
hull area provides the best protection.
7. Avoid running wires over or through sharp edges. Use rubber or plastic
grommets to protect any wires routed through metal, especially the firewall.
1. Determine where the speakers will be mounted. Ensure an area large enough for
the speaker to mount evenly. Be sure that the mounting location is deep enough
for the speaker to fit; if mounting in a door, operate all functions (windows, locks,
etc.) through their entire operating range to ensure there is no obstruction.
2. Refer to the specification chart to determine the proper diameter hole to cut for
your speaker model.The template provided also gives the proper cutout size.
3. Using the template provided, mark the locations for the mounting screws. Drill
the holes with a 1/8" bit.
4. Feed the speaker wires through the cutout and connect to the speaker terminals.
Be sure to observe proper polarity when connecting the wires.The speaker's
positive terminal is indicated with a "+".
5. Fit the trim ring over the speaker and mount into place using four (4) screws.
6. Tighten the screws until the speaker and trim ring are snug in place to prevent
rattling. Do not over tighten the screws.
S
AFETY
C ARTON C ONTENTS
CAUTION:
Before installation, disconnect the battery
negative (-) terminal to prevent damage
to the unit, fire and/or possible injury.
PRACTICE SAFE SOUND™
Continuous exposure to sound pressure levels over 100dB may
cause permanent hearing loss. High powered auto sound systems
may produce sound pressure levels well over 130dB. Use common
sense and practice safe sound.
• (1) Set Prime Series Full Range Speakers
• (1) Set of decorative trim rings
• Mounting Hardware
I
NSTALLATION
C
ONSIDERATIONS
M
OUNTING
Cutout
Hole
Rear
Deck
Cutout
Hole

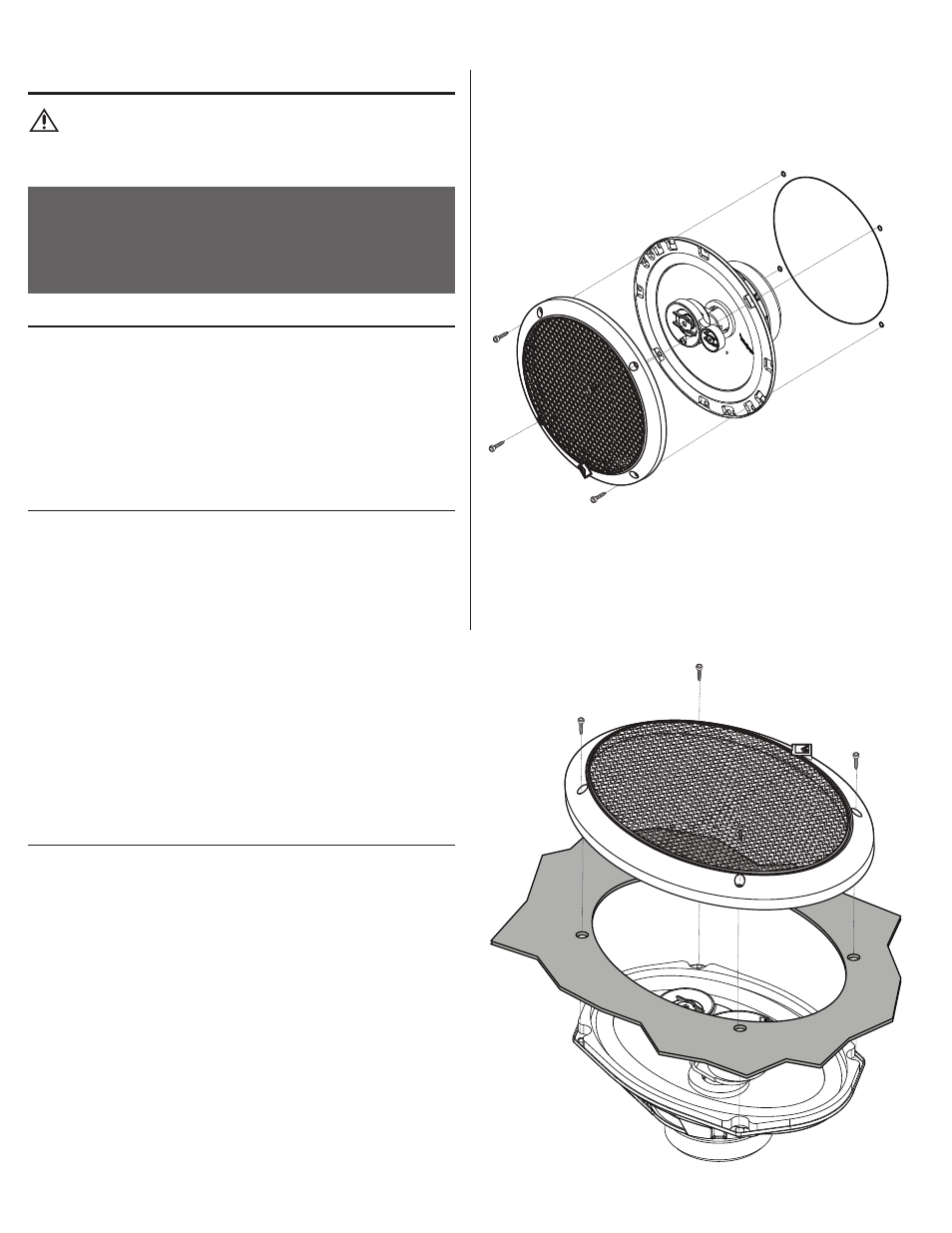

Example of standard door installation
Example of
rear deck installation
Cutout
Hole
Rear
Deck
Cutout
Hole
Example of standard door installation
Example of
rear deck installation
