10

AC3105

To FM Modulator,
System Controller,
or AUX Audio input
with RCA inputs

NTSC Video

Monitor w/

Composite

RCA Input

IR Remote
receiver
(included)

Antenna
(not included)

Red 12V(+)
Accessory Power
(fused)

Black (-) Ground

TV Antenna
(not included)

Rosen A7 system

TV Tuner Harness

(optional)

To Rosen A7 system

Red = Right-channel audio
White = Left-channel audio
Yellow = Video
Black = IR commands

Red:12V Switched
Black: Ground

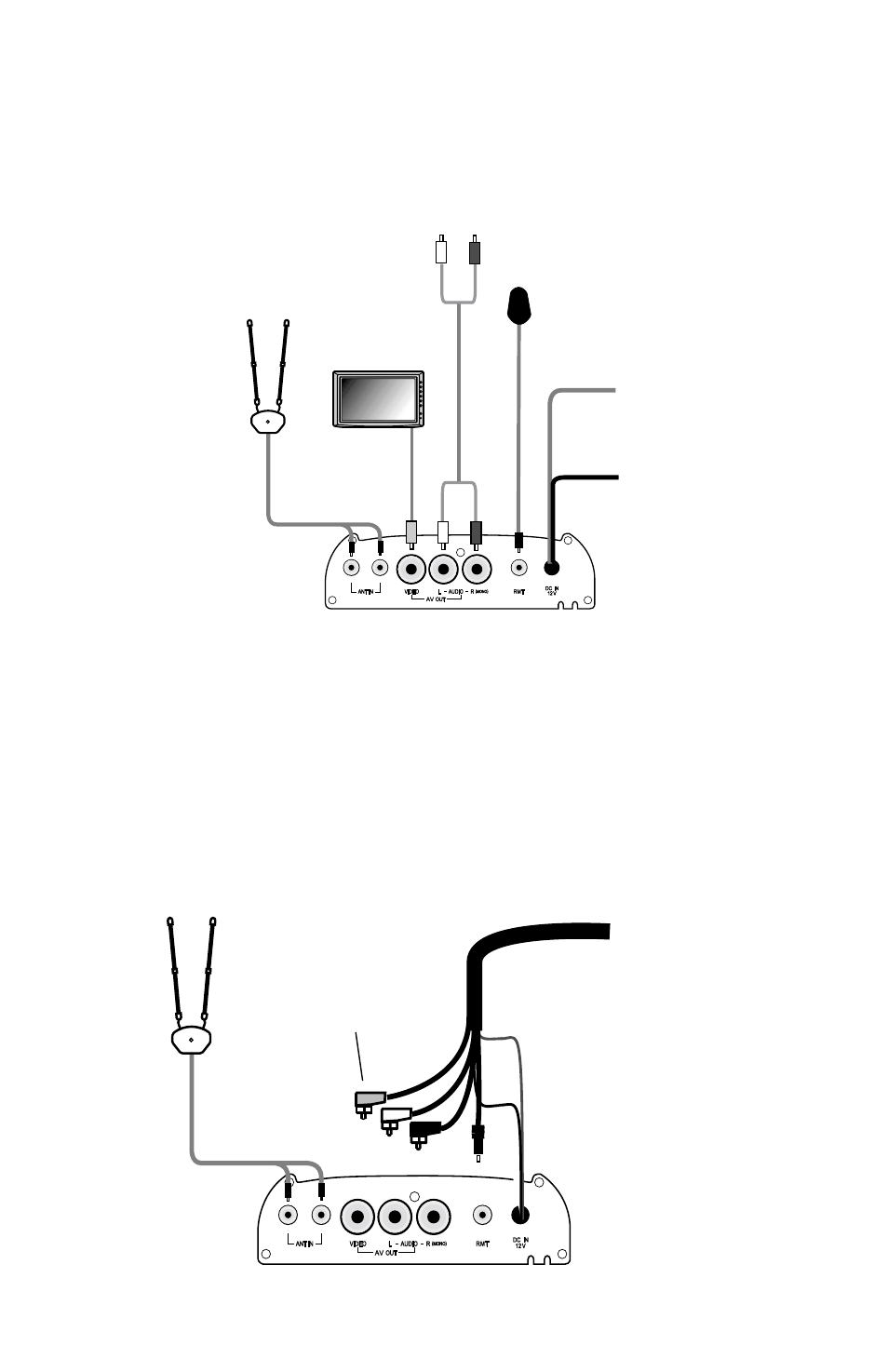

Connecting the AC3105 to an audio/video system:

Connecting the AC3105 to a Rosen A7 system:

NOTE: Optional Rosen A7 TV Tuner harness required,
RES PN

9100233

.
