AC3105

7

Installation and Wiring

1. Before Starting

Read these instructions and the precautions carefully.

WARNING!

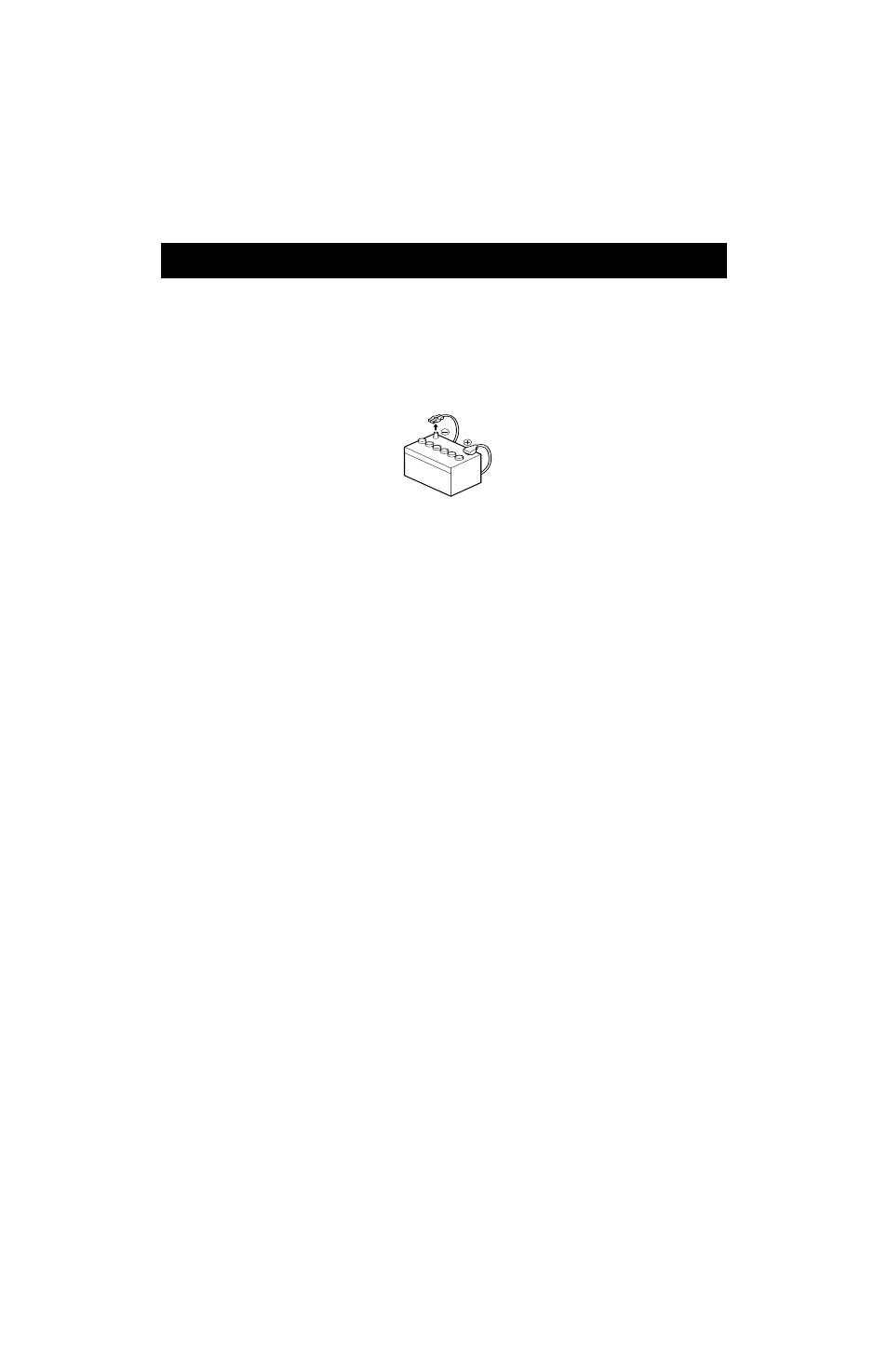

Be sure to disconnect the battery (-) terminal
before starting. This is to prevent short cir-
cuits during installation.

Precautions

· This unit is only for cars with negative-ground, 12V

electrical systems.

· Do not open the case. There are no user-serviceable parts

inside.

2. Package Contents

AC3105 Unit
Remote Control and batteries
IR Receiver and cable
Owner’s Manual / Installation Guide

NOTE: No TV antenna is included. Rosen offers
compatible antennas for automotive use -see your Rosen
dealer for more information.

3. Installing the AC3105

Mount the unit in a dry, flat location. If using mounting screws,
verify that the screws will not damage the vehicle wire harnesses
and/or fuel lines. Ensure that the unit is firmly mounted and
cannot come loose in the event of a collision. Also ensure that
there is sufficient clearance around the unit to avoid any pinching
of the cables.
