How To

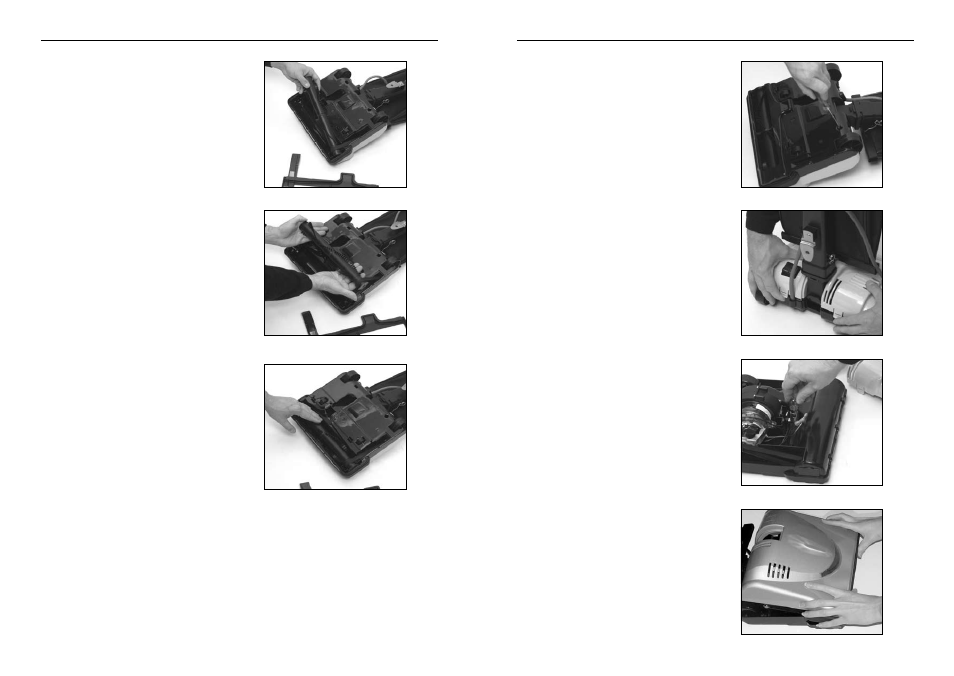

Change the belt
CAUTION: First, unplug the vacuum cleaner
from the electrical outlet.
. Turn the unit over and remove the
bottom plate (see “How to Remove
Bottom Plate”).
2. Remove the brushroll and the worn or
broken belt from the brushroll pulley and
the motor drive shaft (figure 9).
3. Loop the new belt around the
motor drive shaft and the brushroll
(figure 20).
. Reinstall the brushroll back into the
housing. Turn the brushroll by hand,
making sure the belt is not twisted
and all rotating parts move smoothly
(figure 2).
. Reinstall the bottom plate (see “How to
Install Bottom Plate”).
NOTE: To ensure maximum cleaning
efficiency, the belt should be checked
regularly to be sure it is in good condition.
Check to see if the belt is stretched,
cracked, or if excessive slipping is occuring.
Replace if needed.
Fig. 9
Fig. 20
Fig. 2
How To
Replace the headlight bulb
WARNING: To reduce the risk of electric
shock and injury from moving parts, unplug
vacuum before cleaning or servicing.
. First remove the nozzle housing. Turn
the unit over to expose the underside.
Locate the two main nozzle screws
(figure 22) and remove both. Turn the
unit right side up. Locate the two nozzle
tabs on the back of the unit (figure 23)
and unlatch the nozzle housing. (Note: It
is easier to remove the nozzle when the
vacuum is lying flat on its back.) Lift the
nozzle housing off the unit to expose
the light bulb.
2. Remove bulb by pulling it straight out of
the light socket (figure 2).
3. To install new bulb, simply reinsert the
bulb into the light socket.
. Place nozzle housing back onto unit with
the front side of the nozzle set into place
first (figure 2) then press the nozzle
downward until nozzle “clicks” into place
on both sides. Turn unit over and reinsert
main nozzle screws.
Fig. 22
Fig. 23
Fig. 2
Fig. 2
