How To
Change the vacuum bag

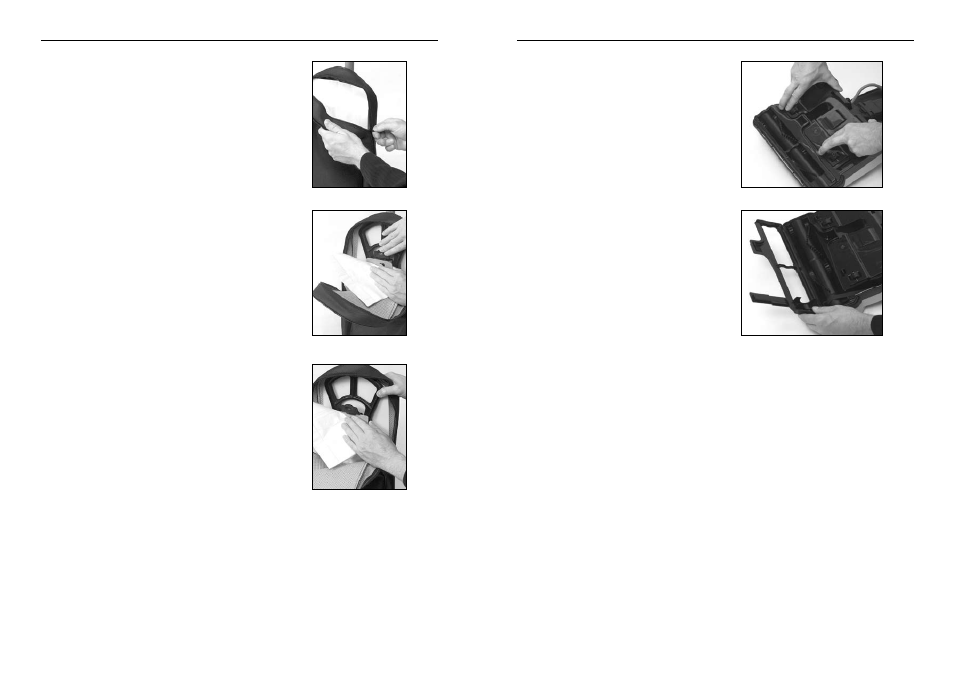

. Unzip outer cloth bag (figure ).
2. Remove used bag by pressing the bag holder
tab and pulling bag off vacuum (figure ).
Discard used bag.
3. To install new bag, position the bottom of the
bag collar into the bag collar holder (figure 6).
. Push the top of the bag collar inward until
the collar “snaps” into place under the bag
holder tab.
. Zip the outer cloth bag closed.
Fig.
Fig.
Fig. 6
How To
Remove/install the bottom plate
CAUTION: First, unplug the vacuum cleaner
from the electrical outlet.
To remove bottom plate:
. After unplugging the power cord, turn
the vacuum cleaner over, exposing the
underside.
2. Press the two holding tabs inward (figure
7) releasing the bottom plate. Remove
the bottom plate.
To install bottom plate:
. Install bottom plate, making sure
bottom plate hinges are in place before
setting the plate (figure 8).
2. Press plate into position until the plate
“clicks” on both sides.
Fig. 7
Fig. 8
