40 

9. Maintenance

(EX-PS only)

(1)

EX-PS
MA1

EX-PS
MA2

EX-PS
MA3

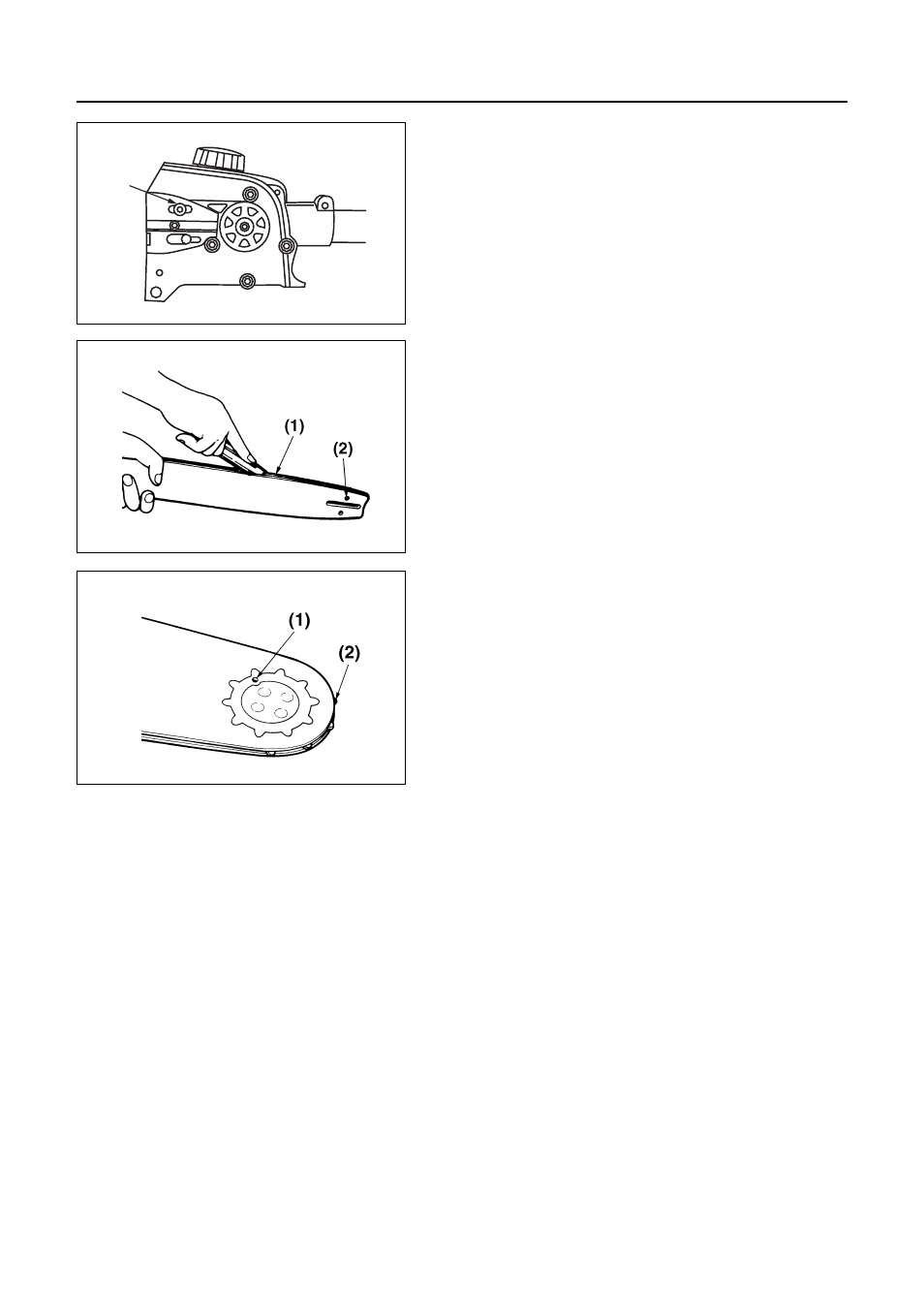

■ OILING PORT
Dismount the guide bar and check the oiling port
for clogging. (MA1)

(1) Oiling port

■ GUIDE BAR
Remove sawdust in the bar groove and the oiling
port. (MA2)

(1) Groove
(2) Oiling port

(Type: Sprocket nose)
Grease the nose sprocket from the feeding port on
the tip of the bar. (MA3)

(1) Grease port
(2) Sprocket
