Page 10
ASSEMBLY

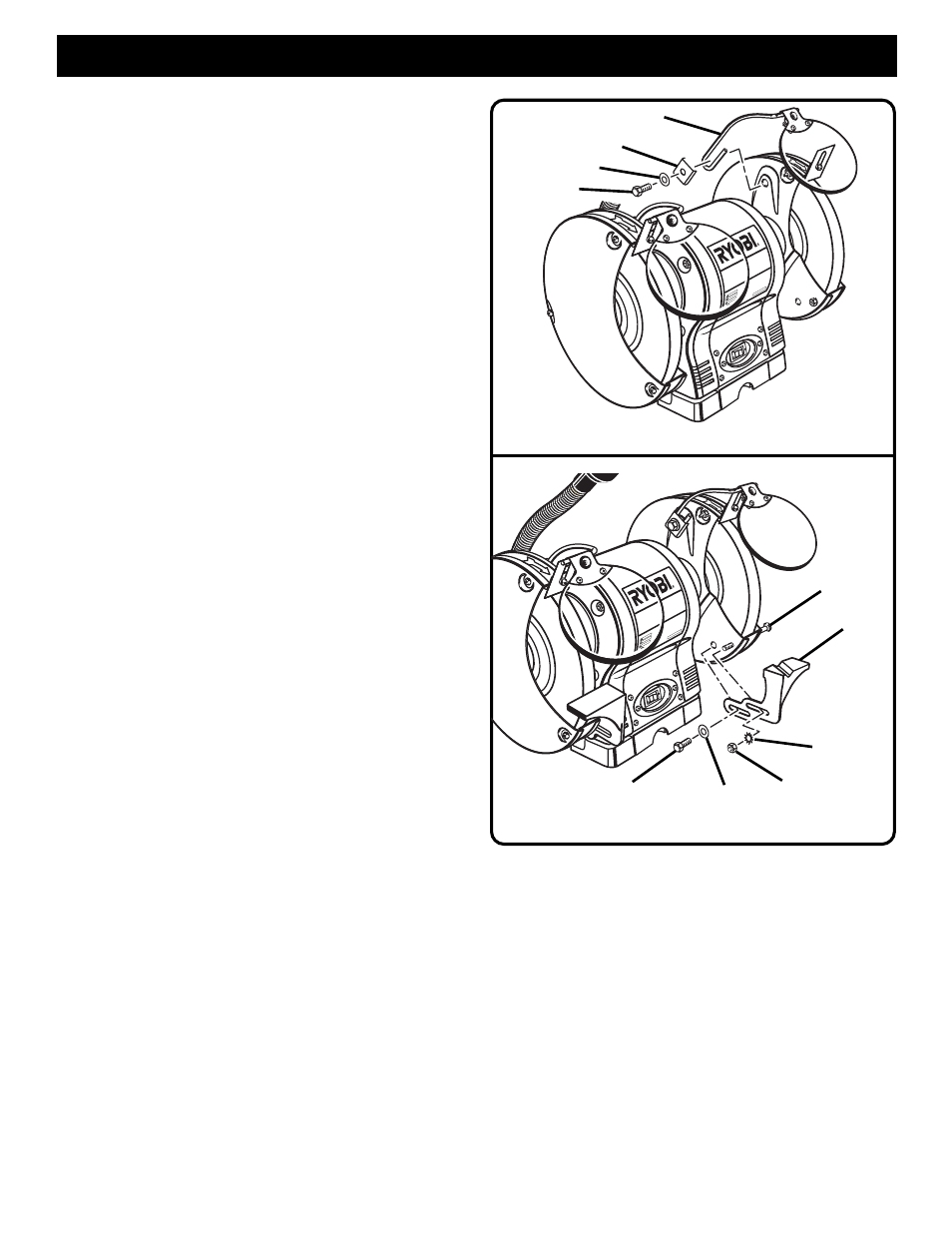

MOUNTING SAFETY SHIELDS
See Figures 6.
Mount the left and right shield rods to the inside of the wheel
guards using the clamp brackets, hex bolts (8 mm x 14 mm),
and washers (8 mm).
Use the illustration as a guide to determine which shield rod
is mounted on the left and which shield rod is mounted on the
right of the grinder.
Once shield rods are firmly in place, slide the shield bracket
onto the shield rod. Tighten the carriage bolt leaving it loose
enough to allow the safety shield to be raised and lowered
easily.
WORK REST
See Figure 7.
Before attempting to mount the work rest, remove the hex nut
and star washer from the phillips screw. Place the work rest
over the phillips screw before replacing the hex nut and star
washer. Using the hex bolt (5 mm x 10 mm) and washer
(5 mm), secure the work rest against the inside of the wheel
guard.
Before tightening the bolts, adjust the gap between the
grinding wheel and the work rest to a maximum of 1/16 in.
(1.6 mm). Tighten securely.
CO
OL
AN
T T
RA
Y
8” Bench Grinder
RY OBI TECHNOLOGIES, INC. Anderson, SC 29625
1-800-52 5-2579
SER. No. BGH615 120V AC 60Hz 2.1A 3600 RPM/TR/MN 1/2” Arbor Por razones de seguridad, leer atentamente el Manual del Usuario antes de poner el
uso la máquina. Usar pr otección de seguridad para los ojos y discos de amolar aptos
para l a velocidad de la máquina.
MADE IN CHINA FABRIQUE AUX CH INA
FABRICA DO EN CHIN A
For Safe Operation, Read and
Understand Operator's Manual Before Using Tool.
Wear E ye Protection. Always use Guards and use grinding wheels suitable for speed of grinder. Avant utilisation, il faut lire et comprendre le manuel d’utilisation pour utiliser l’outil d’une
manière sûre. Il faut porter des lunettes de sécurité. Il faut toujours utiliser les carter
s
de pr otection et utiliser des meules appropriées pour le régime de la meuleuse.
AD VE RT EN CIA
WA RN IN G
AVE RTI SSE ME NT
E 48467 43F1
0F F
0N
HEX BOLT
WASHER
CLAMP BRACKET
SHIELD ROD
Fig. 7
CO
OL
AN
T T
RA
Y
8” Bench Grinder
RYOBI TECHNOLOGIES, INC.
Anderson, SC 29625
1-800-525-2579
SER. No.
BGH615 120V AC 60Hz 2.1A 3600 RPM/TR/MN 1/2” Arbor Por razones de seguridad, leer atentamente el Manual del Usuario antes de poner el
uso la máquina. Usar protección de seguridad para los ojos y discos de amolar aptos para la velocidad de la máquina.
MADE IN CHINA
FABRIQUE AUX CHINA
FABRICADO EN CHINA For Safe Operation, Read and Understand Operator's Manual Before Using Tool.
Wear Eye Protection. Always use Guards and use grinding wheels suitable for speed of grinder. Avant utilisation, il faut lire et comprendre le manuel d’utilisation pour utiliser l’outil d’une
manière sûre. Il faut porter des lunettes de sécurité. Il faut toujours utiliser les carters de protection et utiliser des meules appropriées pour le régime de la meuleuse.
AD VE RT EN CIA
WA RN IN G
AVERTISSEMENT E 48467 43F1
0F F
0N
HEX NUT
STAR
WASHER
WORK
REST
WASHER
HEX BOLT
PHILLIPS
SCREW
Fig. 6
