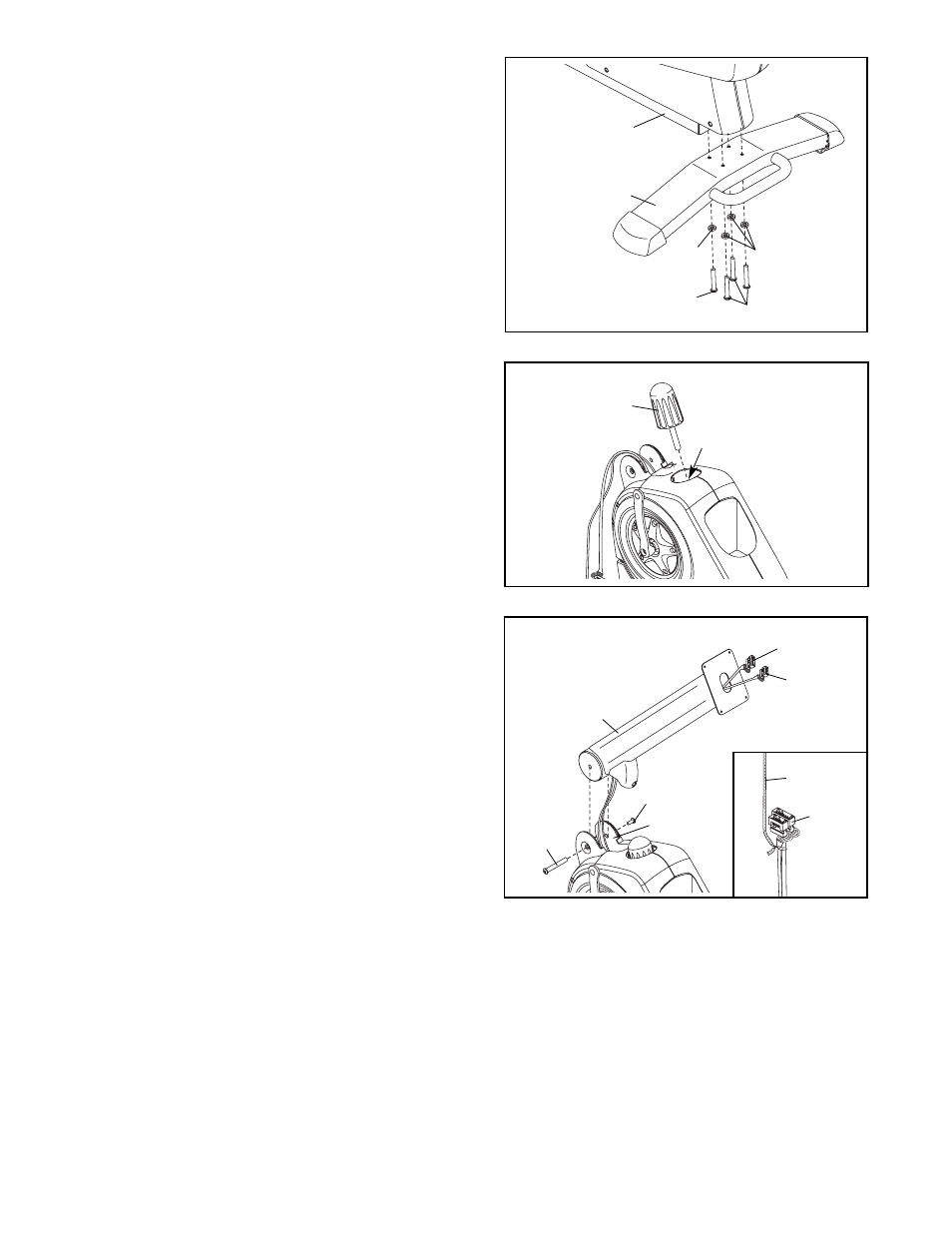

2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (16) to the Frame with
four M8 x 50mm Button Screws (52) and four M8
Split Washers (55).
52
16
1
4
2
Avoid pinching
and damaging
the wires
1
4. While another person holds the Upright (2) near the
Frame (1), use the wire tie in the Upright to pull the
Upper and Main Wire Harnesses (42, 43) through
the Upright. See the inset drawing. Tie the wire tie
to the ends of the Wire Harnesses. Then, pull the
other end of the wire tie upward out of the top of the
Upright.
Attach the Upright (2) to the Frame (1) with an
M10 x 63mm Bolt Set (62). Be careful to avoid
pinching the Wire Harnesses (42, 43).
2
52
55 55
62
43
62
42, 43
42
3
7
1
3. Tighten the Upright Knob (7) into the Frame (1).
Wire Tie
