GETTING TO KNOW YOUR SAW
Your saw is designed to perform as a versatile, accurate,
precision cutting tool that is easy to operate.
It is equipped with the following features for convenience,
ease of use, and high-quality performance:
• a combination saw blade
• a bevel indicator to set the exact angle of the blade, with
locking lever
• an adjustable sliding miter table
• an adjustable miter fence
• an adjustable rip fence with scale indicator
• an adjustable riving knife (splitter) and blade guard with
anti-kickback pawls
• front and rear guide rails with an easy-to-read scale on
front rail
• blade adjusting handle to set depth of cut
• a sliding outfeed support
• switch with removable switch key to help prevent
unauthorized use
• leg stand for ease of operation
These features provide ease of cutting with all types of wood.
WARNING:
Before attempting to use your table saw, familiarize
yourself with all operating features and safety
requirements.

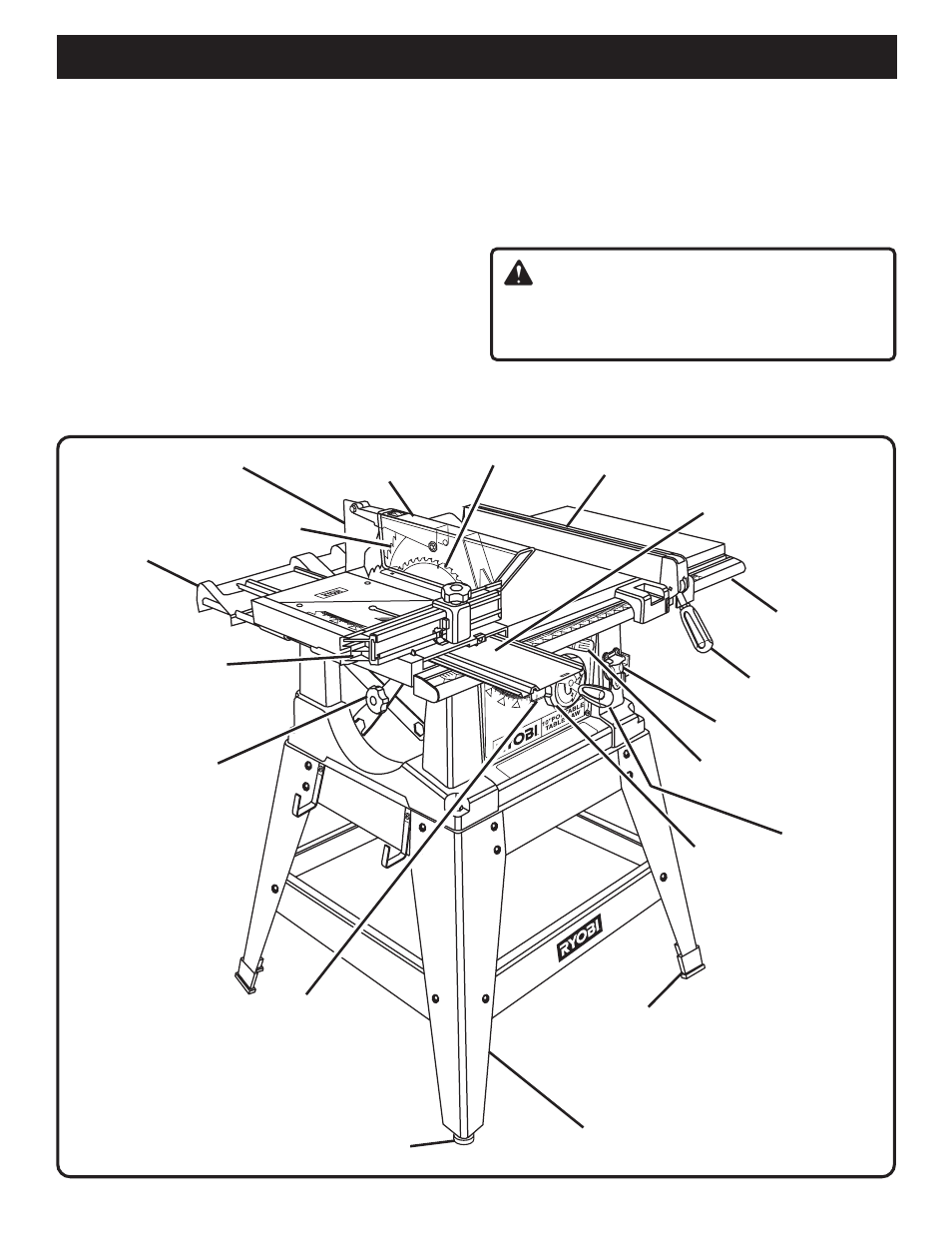

Fig. 4
FEATURES
RIP FENCE
SWITCH
LEG STAND
LOCKING
HANDLE
SLIDING
MITER TABLE
SAW BLADE
ANTI-KICKBACK
PAWLS
BLADE
ADJUSTING
HANDLE
BEVEL
LOCKING LEVER
BLADE AND
WRENCH
STORAGE
BLADE GUARD
ASSEMBLY
FRONT
RAIL
LEVELING
FOOT
OUTFEED
SUPPORT
RIVING KNIFE
BEVEL
HANDLE
FOOT
BEVEL
INDICATOR
MITER FENCE
