Installation
Hooking Up To The Antenna Input On Your TV Or VCR
Your antenna may be hooked up directly
to your TV or VCR
1. Locate the “Antenna In” connector on the back of your TV or VCR.
2. Screw the end of the antenna cable to the “Antenna In” connector on the
back of your TV or VCR.

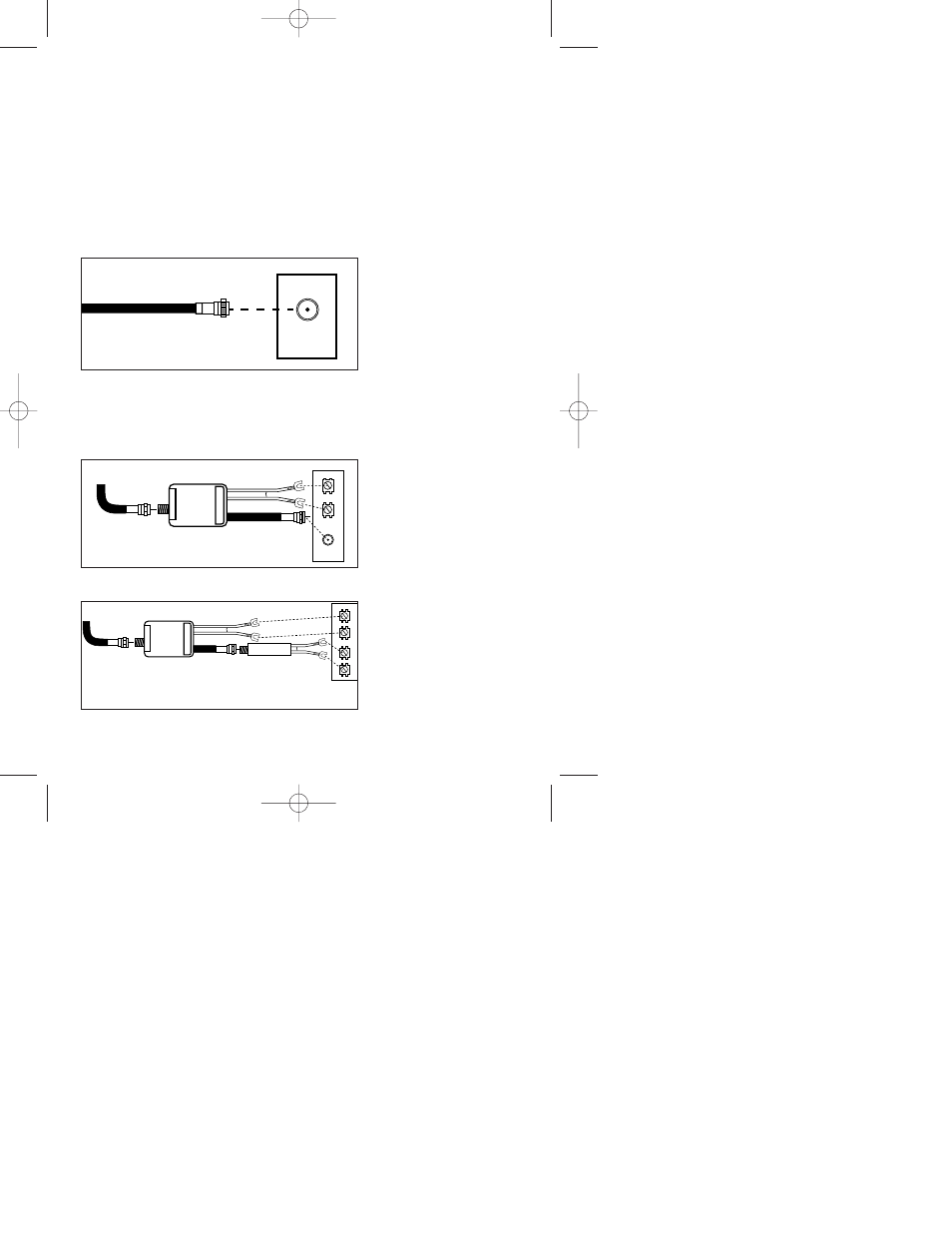

300 OHM Hook Up
If you own a TV that will not allow direct hook-up to the “Antenna In” connector,
see the diagrams below for hooking up with the band separator and matching
transformer.
ANTENNA
Band
Separator
UHF
VHF
Band
Separator
UHF
VHF
75/300 ohm
Matching Transformer
Screw the Antenna cable into
the band separator (included).
Screw the VHF antenna cable
into the VHF terminal and
attach the UHF antenna lead to
the UHF screws on the TV.
Screw the Antenna cable into
the band separator (included).
Connect the VHF cable from the
band separator to the 75/300
ohm transformer (included).
Connect the VHF and UHF
antenna leads to the corre-
sponding VHF and UHF Screws
on the TV.
