RSH-1151/1651
12 11

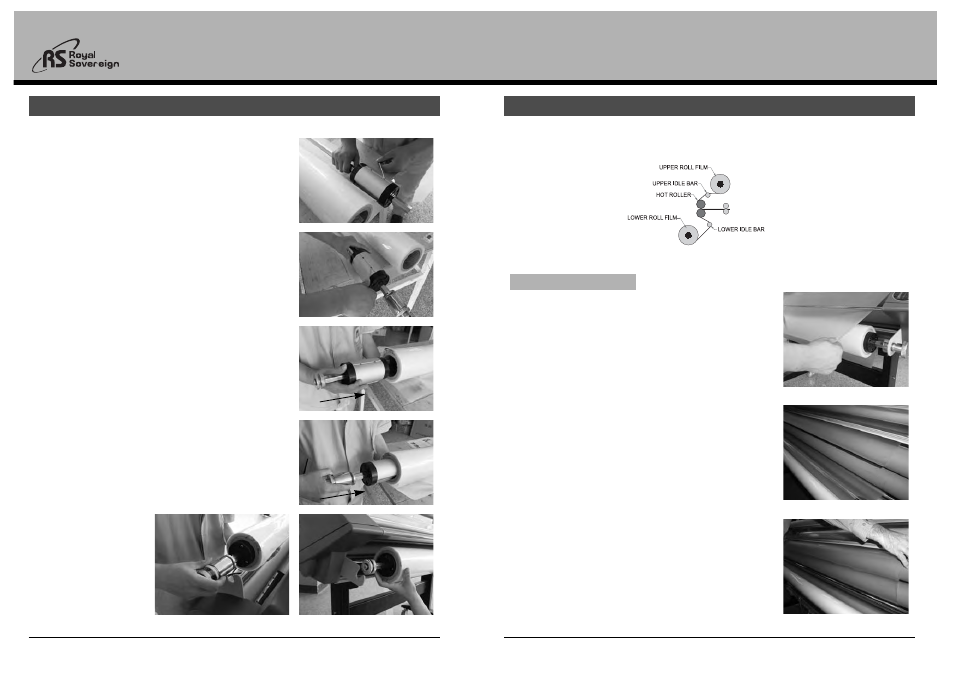

12. LOADING FILM 13. THREADING FILM
Royal Sovereign films are wound with the adhesive side facing the inside of the roll
(adhesive in).
Loading films to upper and lower film shafts:
(See page 5 for assistance with parts identification.)
1. Adjust the auto grip to fit to the film and tighten the
auto grip screw (Figure 1 & 2).
2. Remove the upper and lower film shafts from the
machine and load the films (Center the upper and
lower films on the shaft). Note the direction of the
adhesives on the lower and upper films
(Figure 3 & 4).
3. Load the upper and lower film shafts on the
machine (Figure 5 & 6).
Figure 1
Figure 2
Figure 3
Figure 1
Figure 2
Figure 3
Figure 4
Figure 6 Figure 5
13.1 Lamination and Encapsulation
Thermal Lamination
1. Turn the power switch on (“I” position). Power switch is
located in the rear of the unit on the left side.
2. Complete the steps on “Loading films to upper and
lower film shafts” - Page 11
3. Set the rollers temperature to the recommended film
temperature.
4. Take off the Paper Guide and the Front Table.
5. Pull down the upper film over the Safety Cover to the
lower film; align and center the lower film to upper film
(Figure 1).
6. Rewind the upper film back until the film aligns with the
Safety Cover.
7. Thread the film over the Upper Idle Bar and underneath
the Safety Cover until the film rests on the upper roller
(Figure 2).
8. Carefully pull up the laminate from the lower roll around
the back side of the lower idler (Caution: lower roller may
be hot).
9. Tack the lower film to the upper film that is resting on the
main roller (Figure 3).
