7
EN

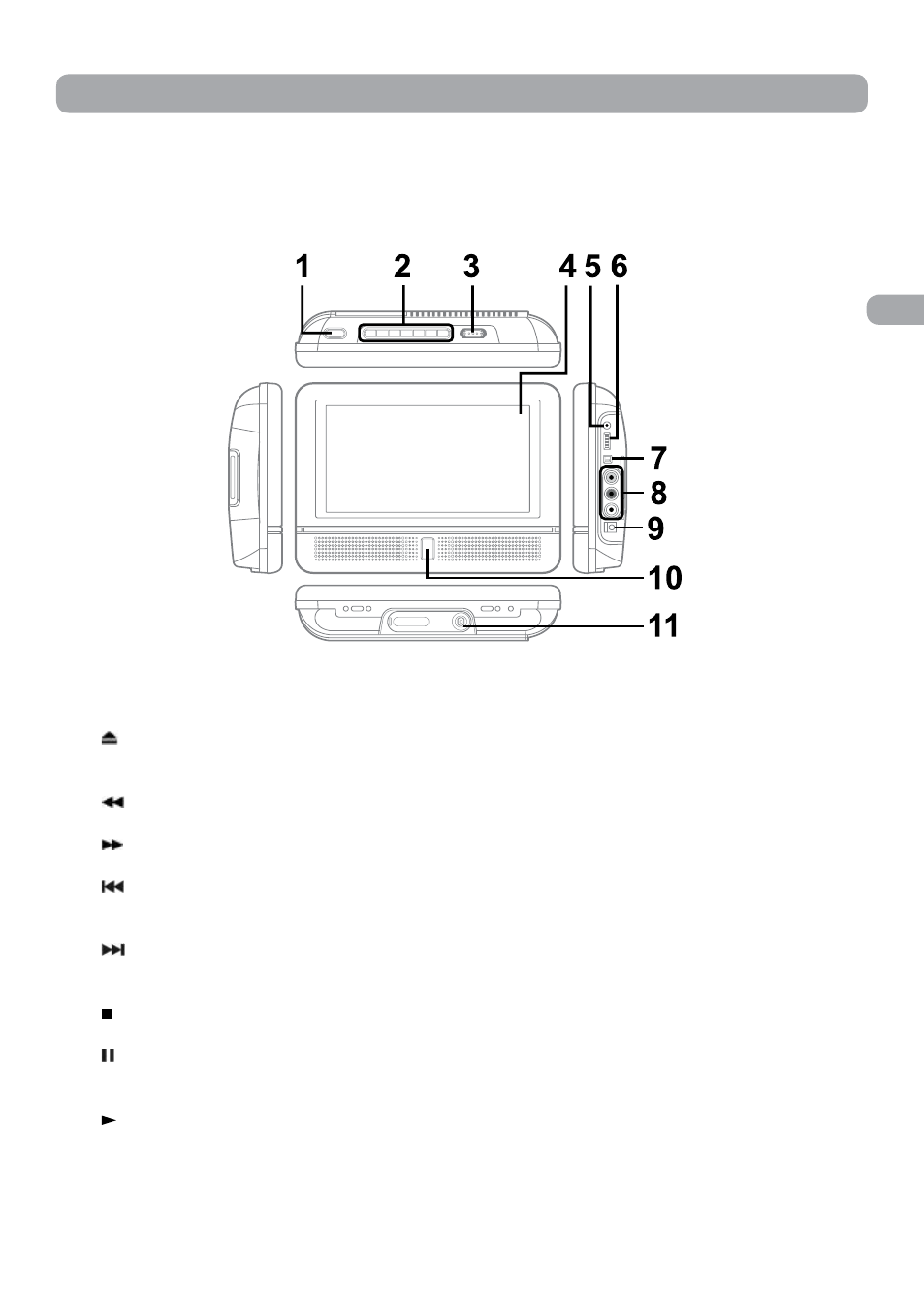

Uuit Reference Guide
1) button
Press the button and hold the front panel
to open the disc door.
2) SEARCH button
Press to perform fast reverse playback.
SEARCH button
Press to perform fast forward playback.
PREV button
Press to select previous chapters or tracks
on a disc.
NEXT button
Press to select next title, chapter or track
on a disc.
STOP button
Press to stop playing a disc.
PAUSE button
Press to pause playback and frame
advance.
PLAY button
Starts or resumes playback of a disc.
UNIT A (with green stripe on the front unit)
UNIT B (with blue stripe on the front unit)
3) STANDBY (power off) / ON switch
4) LCD screen
5) Headphone jack
6) VOLUME control
Adjusts the volume.
7) AV IN / DVD switch
8) AUDIO IN/OUT / VIDEO IN/OUT jacks
9) DC IN 9V-12V jack
10) Remote sensor
Receives the remote control signal.
POWER ON indicator
When the STANDBY / ON switch is in the ON
position, the green light will illuminate.
11) Stand
