U
SING THE
S
IGNAL
S
WITCHING
N
ETWORK

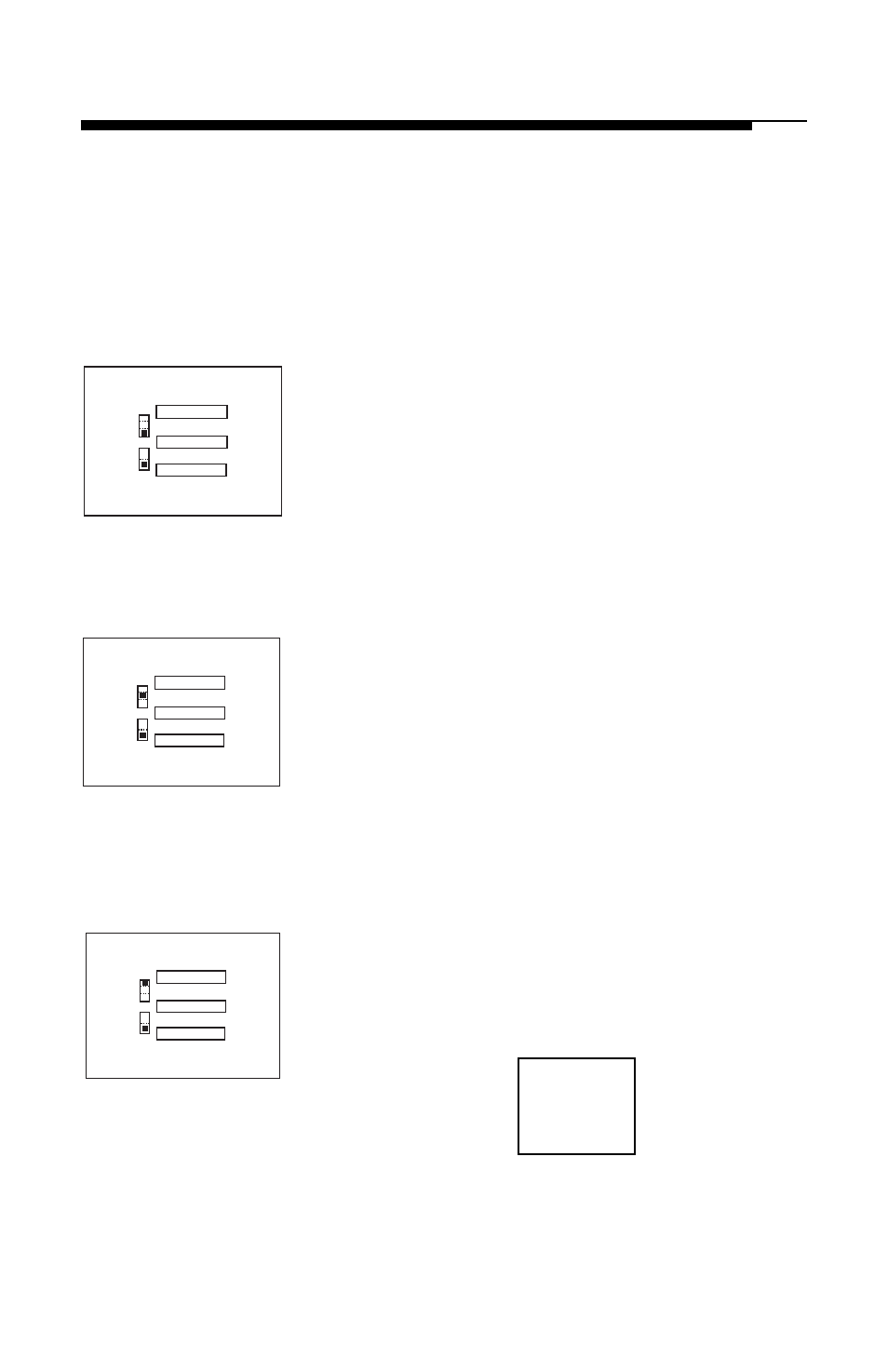

The Signal Switching Network allows the RCA input signals to be
distributed to the outputs in many different configurations. The
orientation of
both switches configure the distribution pattern . The
switches can be oriented in the following configurations.
Configuration #1
(Mono Sub Input)
Front inputs => Front outputs
Rear inputs => Rear outputs
Subwoofer (L Mono) input => Subwoofer outputs
SUB XCard
FRONT XCard
REAR XCard
Configuration #2
Front inputs => Front outputs
Rear inputs => Rear outputs
Subwoofer inputs => Subwoofer outputs
SUB XCard
FRONT XCard
REAR XCard
Configuration #3
Front inputs => Front outputs
Rear inputs => Rear outputs
Front & Rear inputs summed => Subwoofer outputs
SUB XCard
FRONT XCard
REAR XCard
Factory
Default
Setting
– 16 –
