– 15 –
Speaker
+ L -
Crossover Frequency
Left Gain
Input
Pass-Thru
L R
L R
Right
Gain Remote
Punch Bass
HP-Full-LP
Crossover
Speaker
+ R -
65
80
55
50
110
210 Hz
145
190
R C A I n p u t
–
+
2 Ω min. 2 Ω min.
–
+

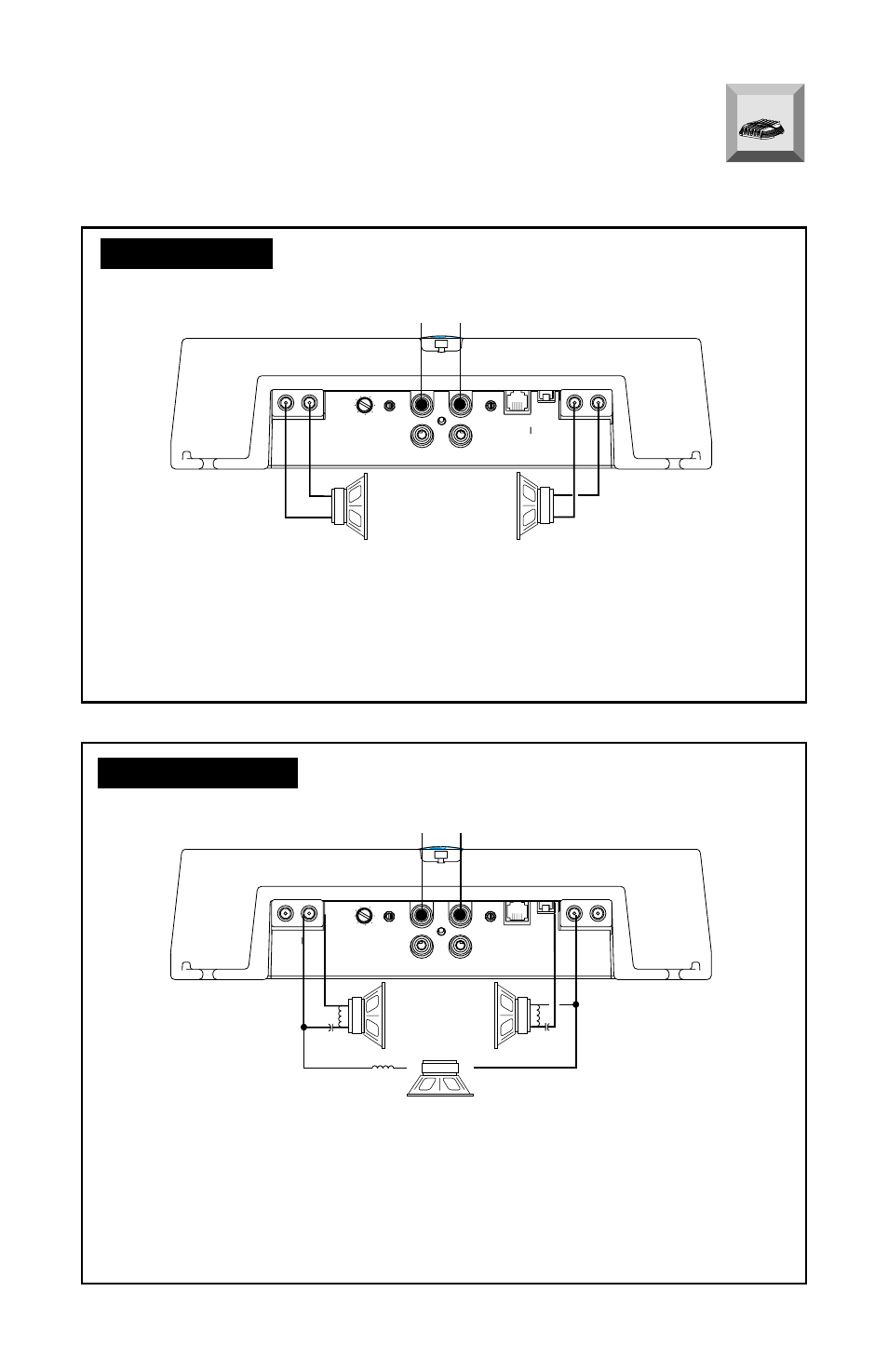

• RCA Inputs connect to both left and right channels
• Gain for left and right channels operate independently
• Speaker Impedance for each channel should be 2
Ω
minimum
• Variable Crossover can be set to High-Pass (HP), Low-Pass (LP) or
Full Range (FULL)
I
N
S
T
A
L
L
A
T
I
O
N
+ - + -
Speaker
+ L -
Crossover Frequency
Left Gain
Input
Pass-Thru
L R
L R
Right
Gain Remote
Punch Bass
HP-Full-LP
Crossover
Speaker
+ R -
65
80
55
50
110
210 Hz
145
190
4 Ω min.
2 Ω min.
R C A I n p u t
2 Ω min.
–
+
–
+
+ -
• RCA Inputs connect to both left and right channels
• Gain for left and right channels are set equally to balance the subwoofer
• Speaker Impedance for each stereo channel should be 2
Ω
minimum
• Speaker Impedance for bridged/mono channel should be 4
Ω
minimum
• Variable Crossover must be set for Full Range (FULL)
• Passive Crossovers must be used for proper stereo/mono operation
3-Channel Mode
2-Channel Mode
Power 250 Power 360 Power 500 Power 800
2-channel 2-channel 2-channel 2-channel
Power 250 Power 360 Power 500 Power 800
2-channel 2-channel 2-channel 2-channel
