Installation
Power 250 2-channel Power 500 2-channel
Power 360 2-channel Power 800 2-channel
– 14 –
R C A I n p u t
Speaker
+ L -
Crossover Frequency
Left Gain
Input
Pass-Thru
L R
L R
Right
Gain Remote
Punch Bass
HP-Full-LP
Crossover
Speaker
+ R -
65
80
55
50
110
210 Hz
145
190
4 Ω min.
+ -
REM
LED
Connect to remote
turn-on lead of
source unit Connect to chassis
ground of vehicle*
Less than 18"
Connect to B+ of battery
with appropriate fuse
*Keep grounds as short as possible
+ -
B+ GND
• RCA Inputs connect to both left and right channels
• Gain for left and right channels are set equally to balance the subwoofer
• Speaker Impedance should be 4
Ω
minimum
• Variable Crossover can be set to High-Pass (HP), Low-Pass (LP) or
Full Range (FULL)
I
N
S
T
A
L
L
A
T
I
O
N
+ - + -
Power 250 Power 360 Power 500 Power 800
2-channel 2-channel 2-channel 2-channel

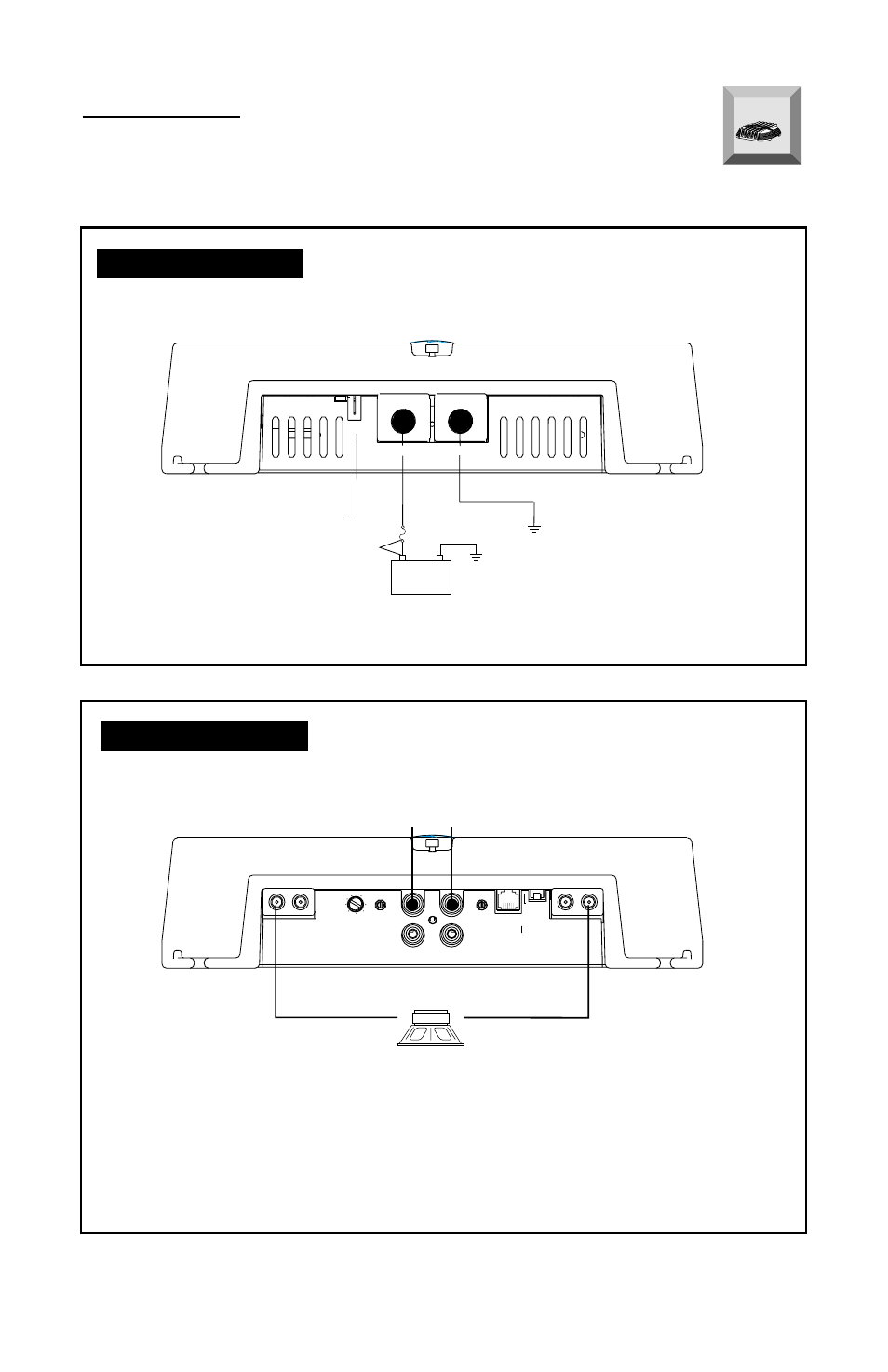

Power Connections
Bridged/Mono Mode Power 250 Power 360 Power 500 Power 800
2-channel 2-channel 2-channel 2-channel
