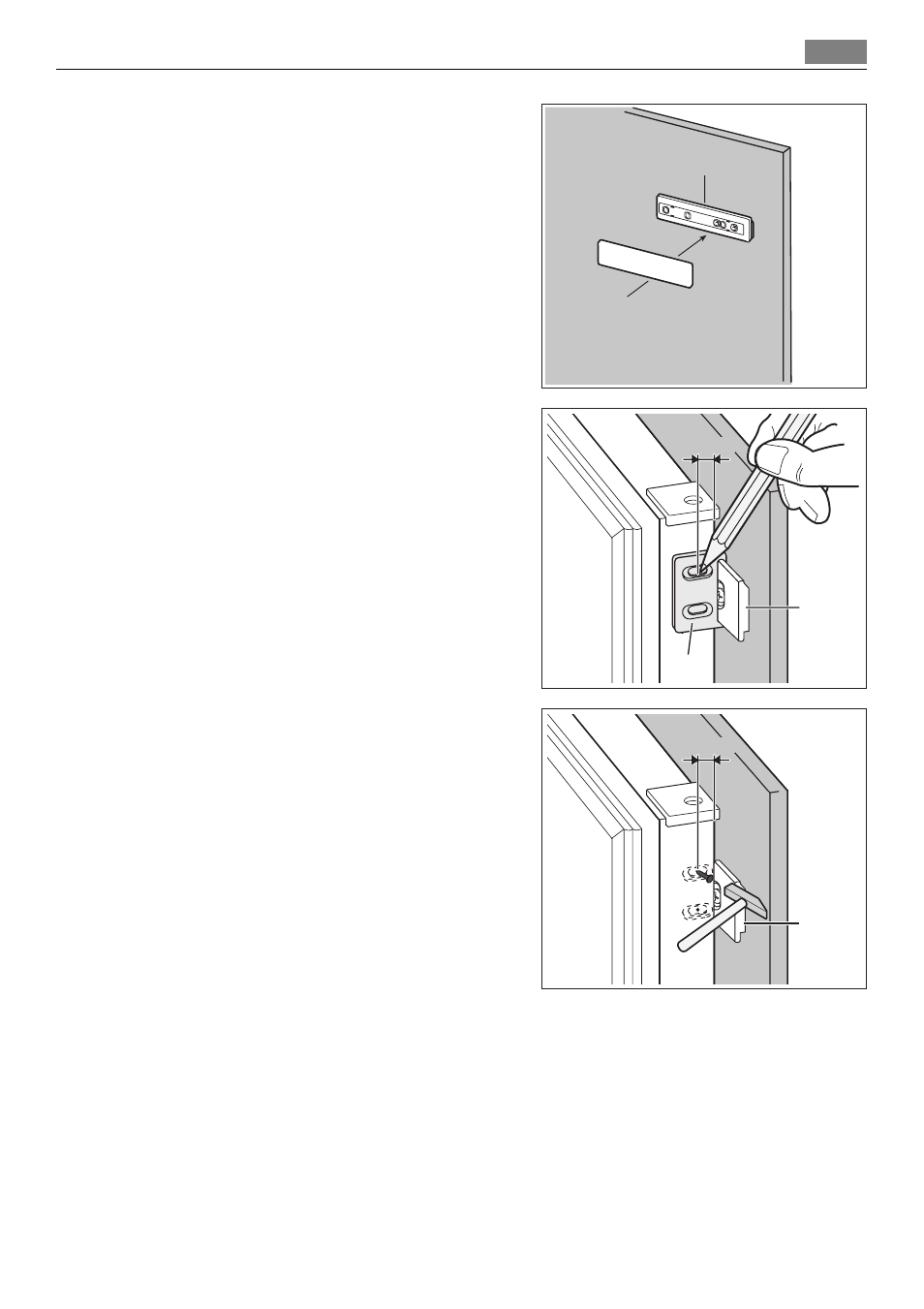

10. Push the part (Hc) on the part (Ha).
11. Open the appliance door and the kitch-
en furniture door at an angle of 90°.
Insert the small square (Hb) into guide
(Ha).
Put together the appliance door and the
furniture door and mark the holes.
12. Remove the brackets and mark a dis-
tance of 8 mm from the outer edge of
the door where the nail must be fitted
(K).
Ha
Hc
Ha
Hb
8 mm
Ha
K
8 mm
