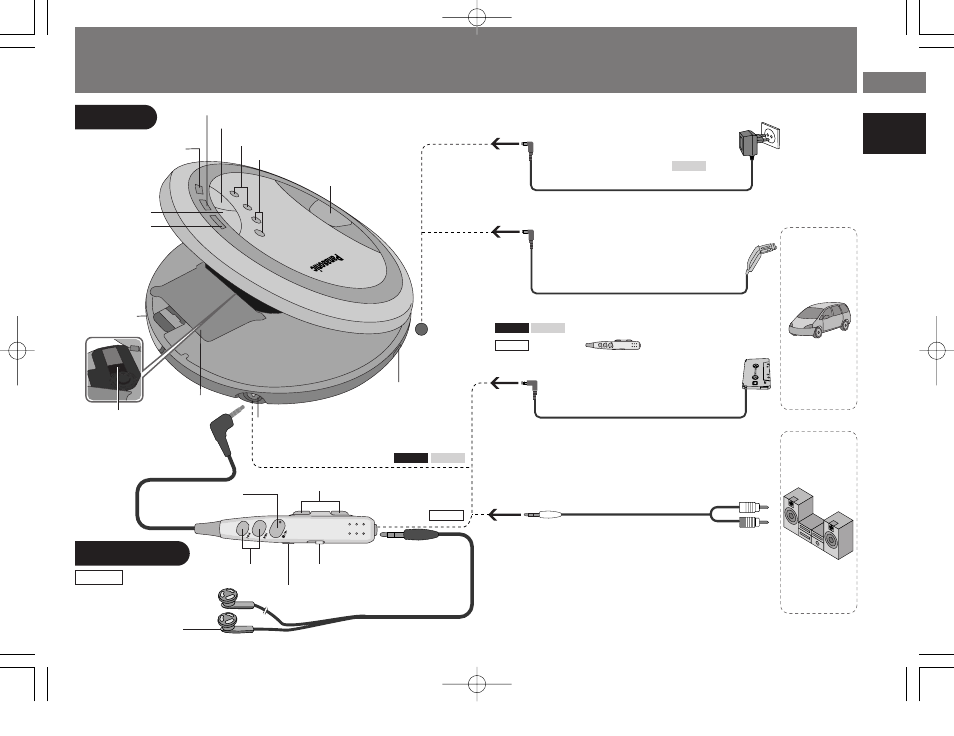

Location of controls/Connection to other equipment
References to the remote control apply only to SL-SX332.
SL-SX325 SL-SX330
Adjust the volume
level on the audio
system.
Memory/Recall/
AB repeat/Anti-skip
mode selection
(MEMO)
Battery
compartment Hold switch
Headphone jack
Open switch
Skip/Search (:, 9)
Play/
Pause (1/;)
Stop/Turn off (∫)
Volume control (j, VOL, i)
To DC IN jack
Display panel
Play mode selection (MODE)
Audio
system
To CD or AUX
terminals
Sound quality
selection (EQ)
Some cannot
be connected.
Car audio
Lens
Plug type:
3.5 mm stereo
Volume control
Play/Stop/
Turn off
Skip/Search
Sound quality selection/Operation tone on-off
Earphones
Hold switch
SL-SX332
SL-SX332
AC power
outlet
Audio cable (not included)
≥Set the unit’s volume to 10-15.
≥Turn the operation tones off so they are not
heard when operating the remote control.
Car stereo cassette adaptor (SH-CDM10A)
(not included)
≥Set the unit’s volume to 10 -15 .
Through to headphone jack (Ë) SL-SX332
Directly to headphone jack (Ë)
SL-SX325 SL-SX330
≥Connect remote control to main unit first.
AC adaptor
(Purchase RFEA431E-S for ) SL-SX325
Car power adaptor (SH-CDC9) (not included)
≥You can recharge the batteries with this
connection.
≥When you switch off the car, the volume
returns to 10.
Turn off this unit and the other equipment before connection.
Plug type:
3.5 mm stereo
Main unit
Remote control
