Ridge Tool Company/Elyria, Ohio, U.S.A. 2
Jetter
KJ-3000

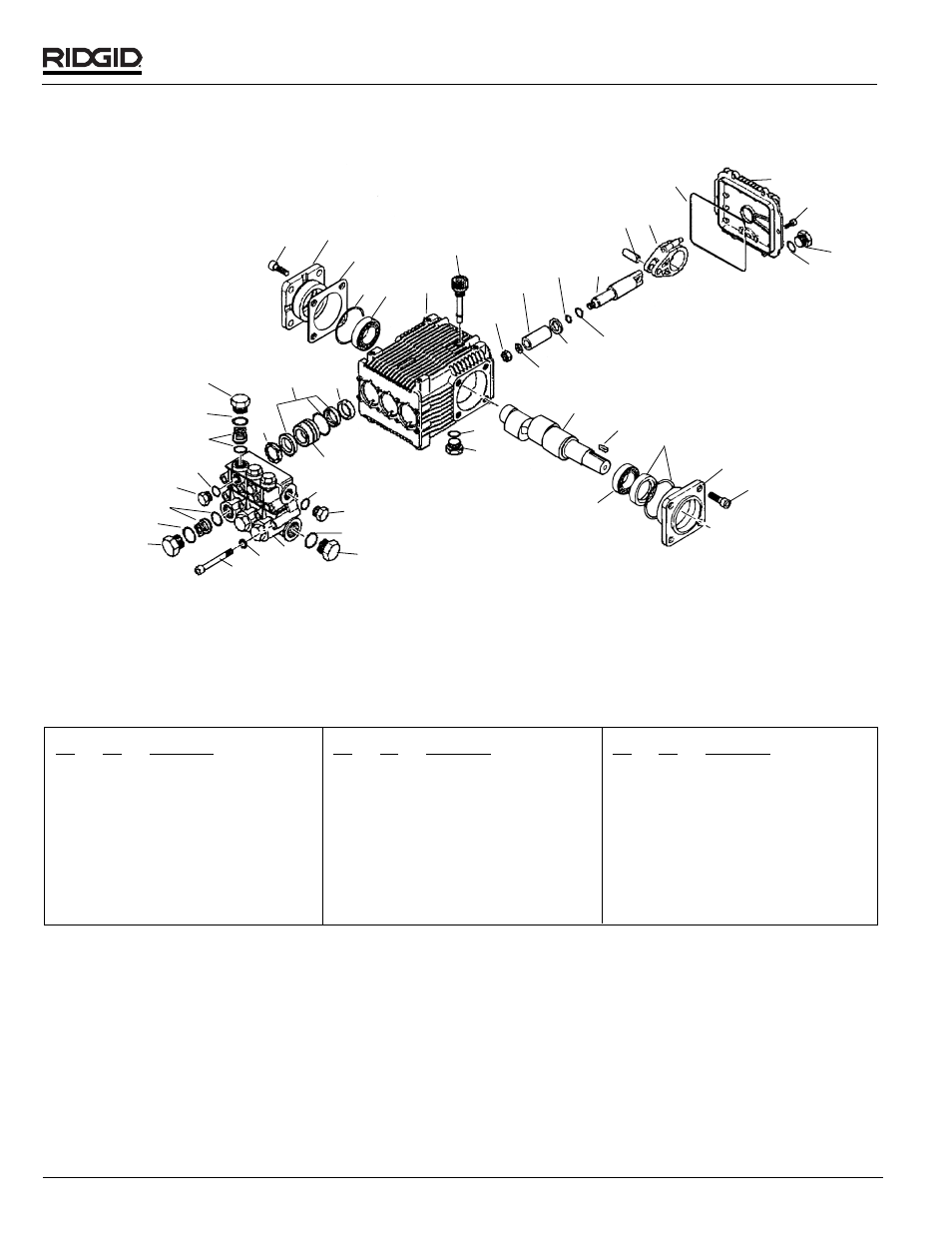

Pump Assembly New Style
18
25
20
19
9
15
14
6
1
2
10
11
35
22
12
13
23
26
30 29
32
27
24
23
28
16
17
5
10
37
36 37
7 8
24
4
3
1
37
37
7
NOTE: Order parts by Catalog Number Only.
DO NOT order by Reference Number.
Ref. Catalog
No. No. Description
1 96722 Valve Cap (6)
2 96642 O-Ring (6)
3 96727 Plug
4 96732 O-Ring
5 66202 Cup Spreader
6 66307 Cup Retainer
7 66217 Bolt (8)
8 66222 Cover
9 96787 Shim Set
10 96737 Ball Bearing
11 96742 Crankcase
12 65262 Dipstick
13 66242 Plunger Nut
Ref. Catalog
No. No. Description
14 66247 Plunger Washer
15 96747 Plunger
16 96752 Slinger (3)
17 96757 O-Ring (3)
18 96762 Plunger Guide
19 66272 Wrist Pin (3)
20 66277 Connecting Rod (3)
21 96767 Crankcase Cover
22 96777 Bolt (6)
23 96667 Drain Plug (2)
24 65357 O-Ring (3)
25 96812 Washers (3)
26 96782 Crankshaft
Ref. Catalog
No. No. Description
27 66297 Key
28 66302 Cover
29 96802 Pump Head
30 96807 Washers (8)
31 66317 Bolt (8)
32 96792 Port Plug,
33 96677 O-Ring
34 96797 Port Plug
35 96707 Valve Kits – 6 Valves, 6 O-Rings
36 96717 Water Seal Kit – 3 each, U-Cup,
O-Ring, Cup
37 96712 Oil Seal Kit – 4 Seals, 3 O-rings
24
21
31
2
35
33
34
