RIDGID KJ-3000 - Manual

Ridge Tool Company/Elyria, Ohio, U.S.A.
6/05
Printed in U.S.A. 278-099-581.10
Jetter
KJ-3000
Ref. Catalog
No. No. Description
26 66867 Coupling, 1 /
2
″ NPT
27 48147 Street EL, 90 Degree, 1 /
2
″ NPT
28 66167 Inlet Filter
29 49587 Hose Adapter w/Washer
30 48287 Filter Washer
31 49582 Water Shut-Off
32 48202 Hose Coupler Nipple
33 48197 Hose Coupler
34 85877 Adjusting Screw w/Seals
35 85882 Seals for Adjusting Screw
36 65392 O-Ring
37 95787 Pressure Gauge Blushing
— 65127 Wash Wand Nozzle (Not Shown)
NOTE: Order parts by Catalog Number Only.
DO NOT order by Reference Number.

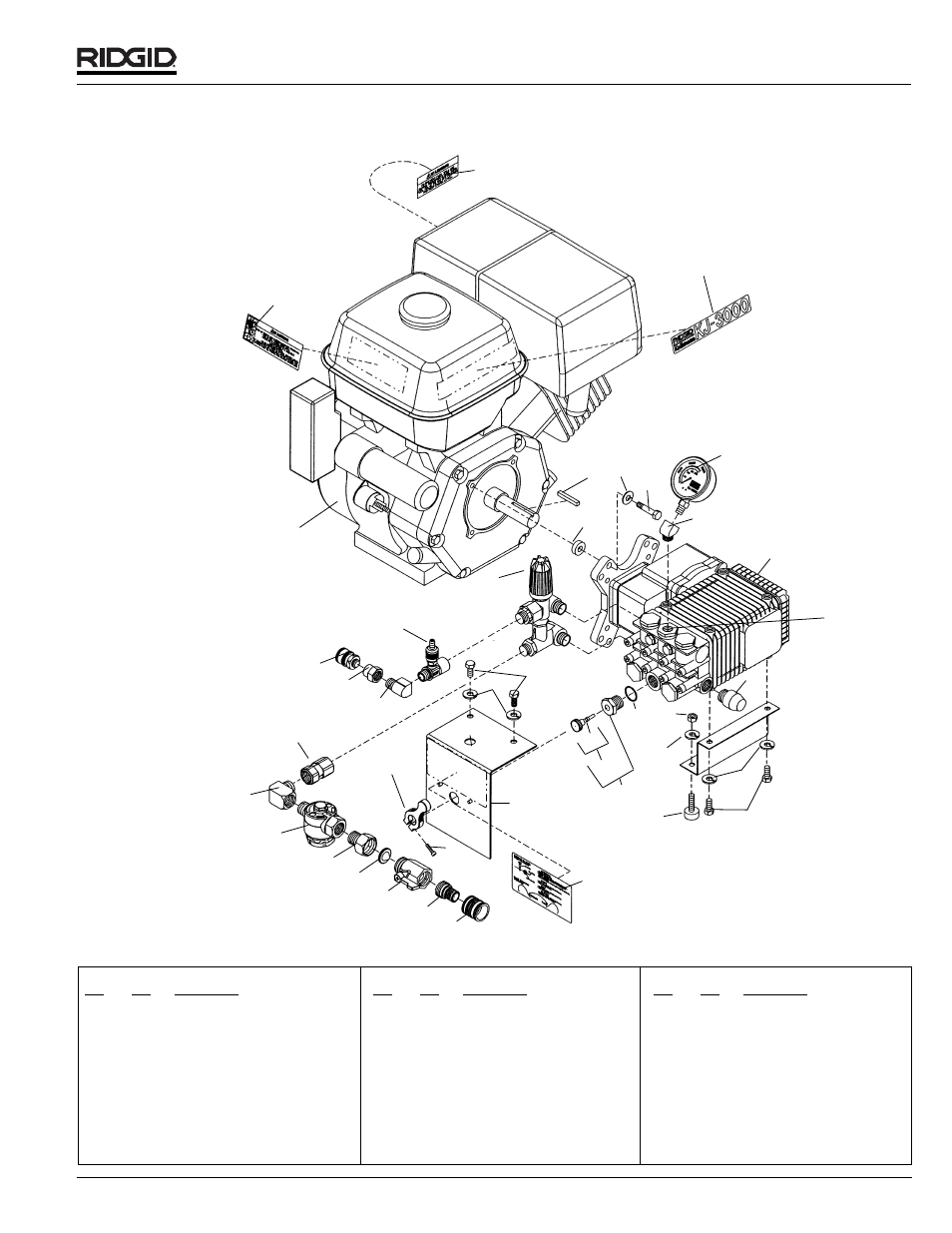

Motor/Pump Assembly
1
5
8
9
10
13
2
4
11
12 13
21
7
17
18
27
30
19
26
25
24
23
22
3
14
16
20
31
32
28
29
Ref. Catalog
No. No. Description
1 66092 Gasoline Engine, 13 Hp Manual Start
66097 Gasoline Engine, 13 Hp Electric Start
2 49562 Decal, Warning
3 60102 Decal, Fuel Warning
4 66102 Decal, Model No.. KJ-3000
5 66107 Key, 1 /
4
″ x 1 /
4
″ x 1″
6 66112 Spacer, Gearbox Mount
7 60080 Lock Washer (8)
8 75350 Hex Screw, 3 /
8
″ - 16 x 1 1 /
4
″ (4)
9 66117 Pressure Gauge, KJ-3000
10 48107 Street EL, 45 Degree
11 66122 Pump Complete, 3000 PSI
12 65412 Thermal Relief Valve
Ref. Catalog
No. No. Description
13 66132 Hex Hd. Cap Scr., Metric M8-10 (4)
14 48187 Rubber Foot (4)
15 60230 Nut (4)
16 85867 Pulse Actuator Assembly
17 66137 Panel
18 63907 Pulse Actuator Handle
19 46375 Soc. Hd. Cap Screw, #6 - 32 x 5 / 8
″
20 66142 Decal, Instruction
21 65202 Unloader Valve
22 66147 Chemical Injector
23 48117 Quick Connect – Female
24 66157 Reducer Adapter
25 66162 Street EL, 90 Degree
7
7
15
7
33
6
36
35
34
37
