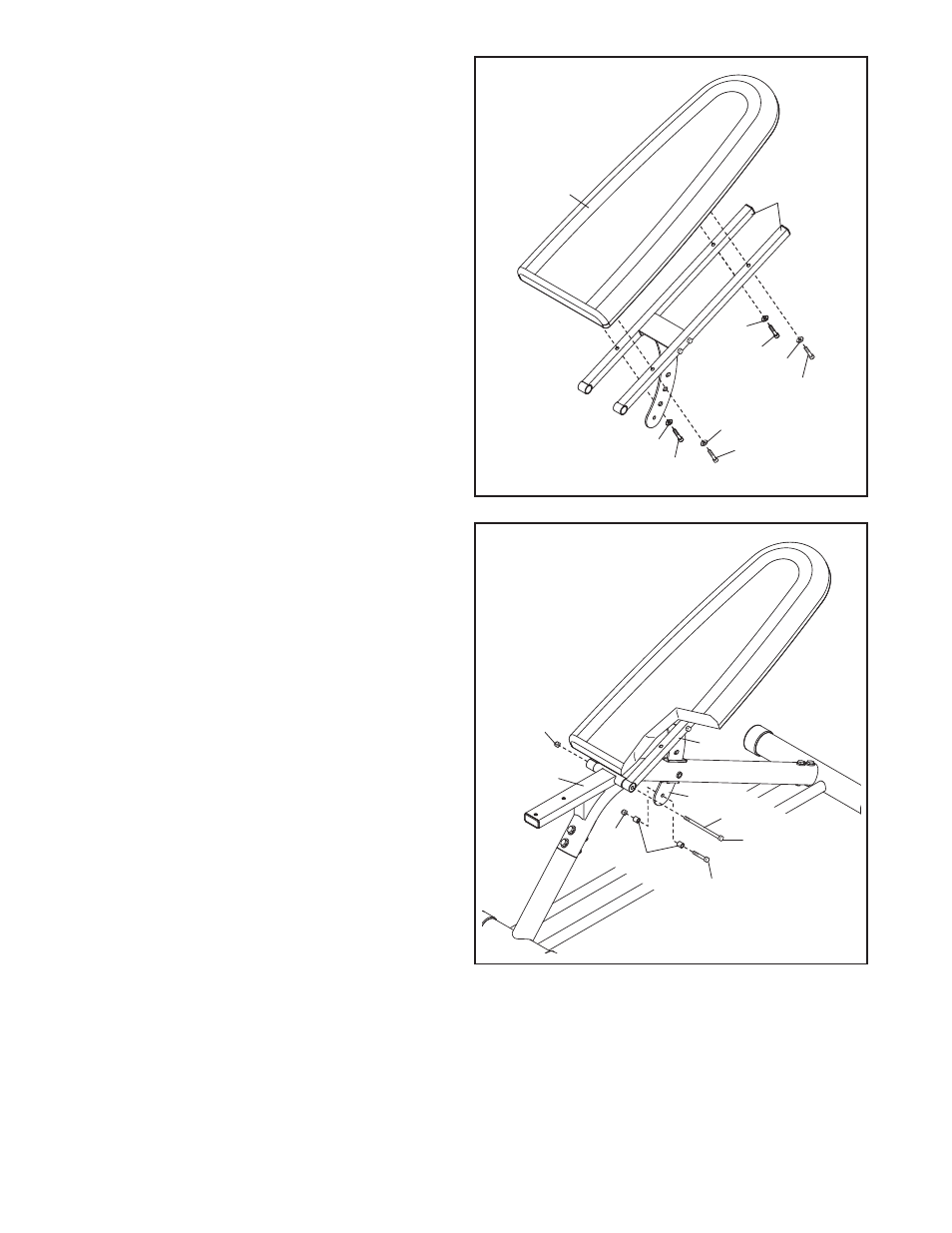

5. Attach the Backrest (7) to the Backrest Frames
(5) with four M6 x 35mm Screws (15) and four
M6 Washers (21).
Do not tighten the Screws
yet.
6. Insert the Pivot Bracket (6) into the slot in the
Frame (1). Attach an M8 x 38mm Bolt (18), two
Spacers (23), and an M8 Nylon Locknut (24) to
the last hole in the Pivot Bracket.
Apply some of the included grease to an M10 x
190mm Bolt (14). Attach the Backrest Frames
(5) to the Frame (1) with the Bolt and an M10
Nylon Locknut (19).
Do not overtighten the
Nylon Locknut; the Backrest Frames must
pivot easily.
See step 4. Tighten the four M8 Nylon
Locknuts (24).
See step 5. Tighten the four M6 x 35mm
Screws (15).
6
21
21
21
21
7
15
15
15
15
5
1
18
19
5
6
5
14 24
23
Grease
