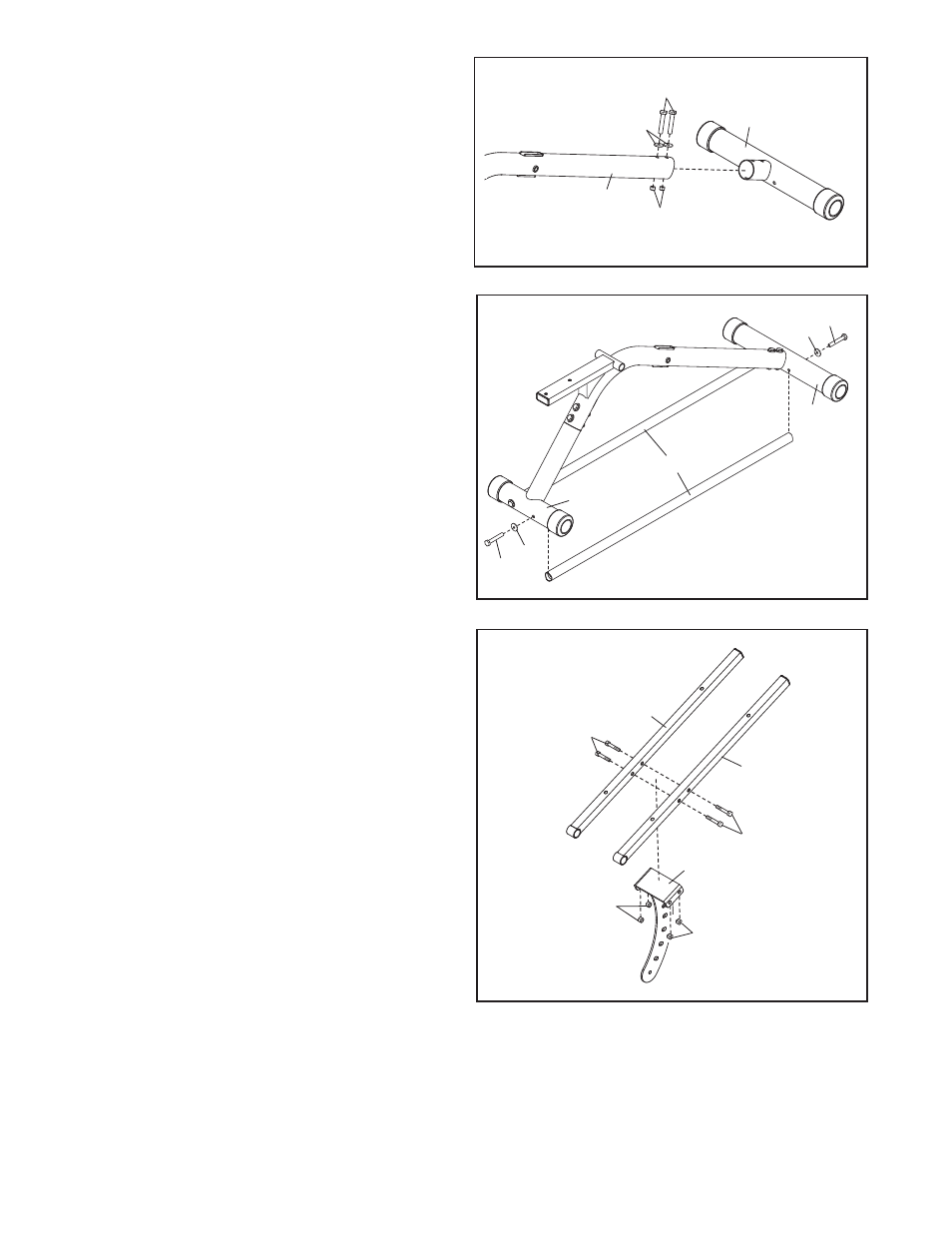

2. Attach the Rear Stabilizer (3) to the Frame (1)
with two M8 x 63mm Bolts (16), two M8
Washers (20), and two M8 Nylon Locknuts (24).
Do not tighten the Nylon Locknuts yet.
3. Attach a Dumbbell Tube (10) to the Rear
Stabilizer (3) and the Front Leg (2) with two M8
x 80mm Screws (13) and two M8 Washers
(20).
Do not tighten the Screws yet.
Attach the other Dumbbell Tube (10) in the
same way.
Tighten the four M8 x 80mm Screws (13).
See steps 1 and 2. Tighten the four M8 Nylon
Locknuts (24).
4. Orient the Pivot Bracket (6) as shown and
attach it to the Backrest Frames (5) with four
M8 x 38mm Bolts (18) and four M8 Nylon
Locknuts (24).
Do not tighten the Nylon
Locknuts yet.
