Unpacking the system:
You should have the following:
•
one main unit (with 2 main speakers);
• one remote control;
• one AM loop antenna;
• one user’s guide;
• one safety leaflet.
• Owner registration Card

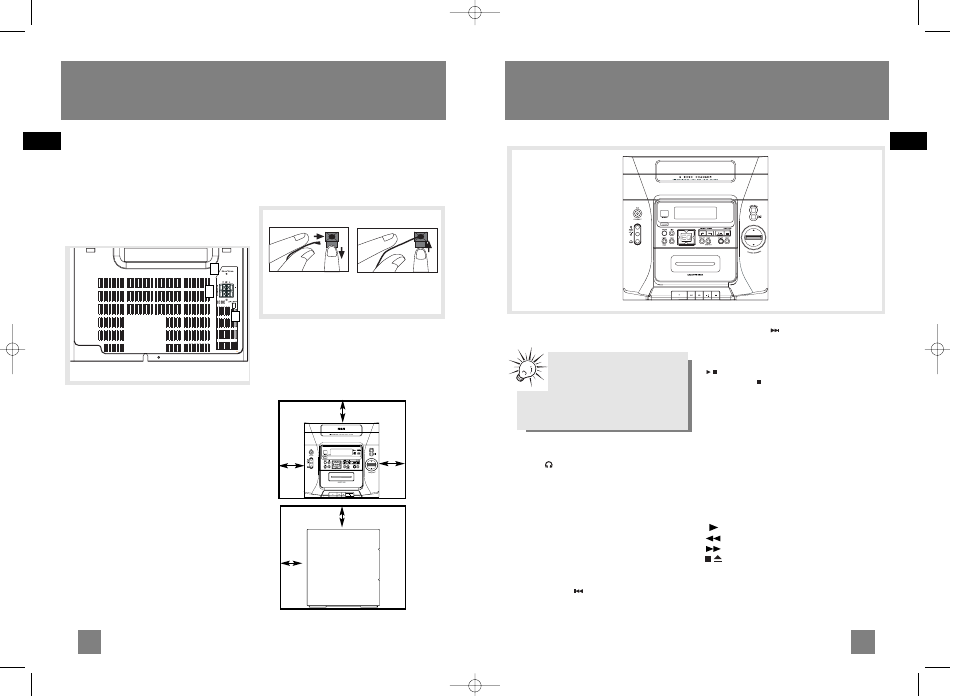

Back View
1. FM Pigtail Antenna
2. AM Loop Antenna Connector
3. Main Speaker Jacks
Using the FM and AM Antennas
Before you use your audio system, you’ll want to make
sure both the FM and AM antennas are positioned
properly. Uncoil the FM antenna at the back of the unit,
making sure it is fully extended (you may even want to
tape it to the wall behind the unit if possible. The higher
the better.) You’ll also need to connect the AM antenna
loop to the back of the unit if you listen to AM stations.
Rotate the AM loop antenna for better reception.
Connecting the Speakers
Match the red wire (on the left speaker) to red terminal
for the left speaker (L) on the back of the unit and the
black wire (on the left speaker ) to the black terminal
for left speaker (L). Follow the same procedure to con-
nect the right (R) speaker.
Installation
To ensure sufficient ventilation, keep the spacings
shown below free from other surfaces:
+
EN
Getting Started
• R
L
•
4 inches
4 inches
Front View
4 inches
4 inches
2
inches
Side View
Release tab to lock wire in
the terminal.
NOTE: Make sure the insulation is completely removed from the
ends of the speaker wires at all connection points.
Speaker Wire Connection
Push Speaker terminal tab
down to insert wire.
EN
3
General Controls
Main Unit
ON/STANDBY — Turns power on or off (STANDBY
mode).
GAME •mp3• L / R / AUX IN - Jack for auxiliary input
connection.
PHONES — Jack for connecting headphones
OPEN/CLOSE — Opens or closes the disc tray.
DISC SKIP — Skips to the next CD in the tray.
VOLUME CONTROL — Increases/ decreases volume.
SOURCE — Selects among CD player, tuner, tape
player and AUX sources.
DIMMER•DEMO —Turns the feature demonstration
on or off; adjusts display brightness;
TIMER — Enters timer setting mode and turns the
timer on/off.
CLOCK — Shows time and enters clock setting mode.
BASS BOOST — Turns BASS BOOST on or off.
DIGITAL TUNING (SKIP BACKWARD) — Tunes
down radio frequency, selects preset radio channels,
goes to the previous CD track or setting option, fast
searches backward through the CD.
DIGITAL TUNING (SKIP FORWARD) — Tunes up
radio frequency, selects preset radio channels, goes to
the next CD track or setting option, fast searches for-
ward through the CD.
PLAY / PAUSE — Plays or pauses CD.
TUNE•PRESET — Stops CD track, Sets tune or pre-
set mode.
PROG•SET - Enters program mode for CD and
Tuner; applies new settings for Clock and Timer
modes.
BAND/AUTO PROG. — Changes between FM and
AM tuner bands, enters auto preset program in
FM mode.
CD INFO — Selects among disc display information.
REPEAT — Selects among repeat modes.
Tape Player
PLAY
REWIND
FAST-FORWARD
STOP/EJECT
2
Tip:
Press ON/STANDBY to turn the sys-
tem on in the previously used mode.
Press CD, TAPE, TUNER or AUX
(Remote Only) to select the corresponding mode.
Look at the display icons to identify the current
mode.
1
2
3
