2
12'4#6+10"
7 5+0) "3 7+'6 "% 1&'5
Quiet Codes lets you talk and listen to other
radios set to the same channel and quiet
code. This is like having a sub-channel
within a channel, giving you greater
communication flexibility. When you set a
quiet code (there are 38 codes to choose
from) and turn on this feature, you can
communicate with anyone who has a radio
set to the same channel and code or set to
the channel only.
1. Repeatedly press MENU/QUIET until the
quiet code flashes on the display.
2. Repeatedly press SCAN/
¼ or ¹
/CALL
until you see the code number you want
to use. (See the “Quiet Code Chart” for
a complete list of quiet codes).
±
3. Press PTT to store the code.
4. To turn off the quiet code feature, press
MENU/QUIET once. The quiet code
number disappears.
3 7+'6 "% 1&' "% *#46
7 5+0) "- '; ". 1%-
You can lock SCAN/
¼ , ¹
/CALL and MENU/
QUIET . Hold down MON and press PTT to
lock or unlock the keys. appears when
the keys are locked. ±
# "+/2146#06" #
The EPA certified RBRC ®
Battery Recycling Seal on the
nickel-cadmium (Ni-Cd) battery
indicates RadioShack is
voluntarily participating in an
industry program to collect and recycle these
batteries at the end of their useful life, when
taken out of service in the United States or
Canada. The RBRC program provides a
convenient alternative to placing used Ni-Cd
batteries into the trash or the municipal waste
stream, which may be illegal in your area.
Please call 1-800-THE-SHACK (1-800-843-
7422) for information on Ni-Cd battery recycling
and disposal bans/restrictions in your area.
RadioShack’s involvement in this program is
part of the company’s commitment to
preserving our
environment and conserving our
natural resources.

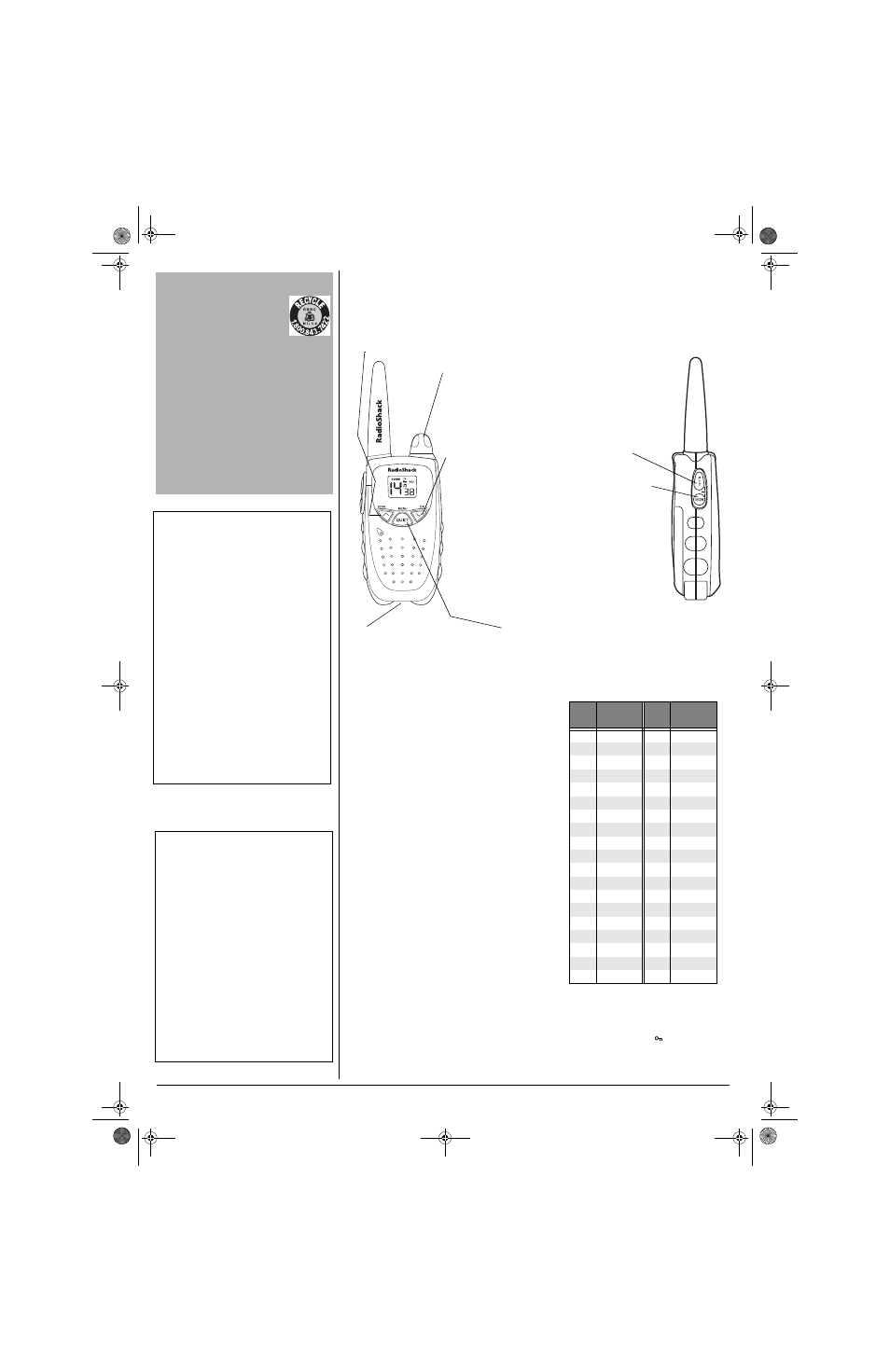

PTT – Hold down
and speak into
the microphone to
transmit.
JN JN JN JN
appears. Release
PTT to stop
transmitting. ±
MON – Hold down to
hear everything on a
channel, even weak
transmissions.
Release
MON to turn
auto-squelch back
on.
VOLUME ON/OFF – Rotate
to turn the radio on and
off and adjust the volume.
SCAN/
¼ý
– Press to manually select a channel. The selected channel
number appears. Or, hold down for about 2 seconds to scan through the
channels. The radio automatically scans through the channels and pauses
on each active channel. Press
PTT to stop scanning.
¹
/CALL – Press to
manually select a
channel. The selected
channel number
appears. Hold down
¹
/CALL to send a page
to other FRS radios set
to the same channel.
JN JN JN JN
appears and the call
tone sounds. After you
hold down
¹
/CALL for
about 6 seconds, the
tone stops.
MENU/QUIET – Press to select a quiet code (see
“Using Quiet Codes” on Page 2).
DC 6V Jack– Use to charge
Ni-Cd or Ni-MH batteries
and to power the radio.
±
"016'"
±
"
Operation
If you hold down PTT for about 2 minutes, the
radio automatically stops transmitting to save
power. The radio beeps and
JN JN JN JN
flashes until
you release PTT.
Using Quiet Codes
• To find the active channel and quiet code
used by another radio, hold down SCAN/
¼ý
until the channel number appears. After
about a second, the quiet code then
appears. Then press PTT once to hold the
channel number and quiet code on the
display.
• When you set your radio to a channel, you
cannot communicate with another user who
is on the same channel but is using a
different quiet code.
Using Key Lock
When the keys are locked, you can still send a
page to other FRS radios set to the same
channel by holding down
¹
/CALL, but you
cannot select a channel by pressing
¹
/CALL.
%QFG (TGSWGPE["
**\+
%QFG (TGSWGPE["
**\+
1 67.0 20 131.8
2 71.9 21 136.5
3 74.4 22 141.3
4 77.0 23 146.2
5 79.7 24 151.4
6 82.5 25 156.7
7 85.4 26 162.2
8 88.5 27 167.9
9 91.5 28 173.8
10 94.8 29 179.9
11 97.4 30 186.2
12 100.0 31 192.8
13 103.5 32 203.5
14 107.2 33 210.7
15 110.9 34 218.1
16 114.8 35 225.7
17 118.8 36 233.6
18 123.0 37 241.8
19 127.3 38 250.3
"75+0)"5%#00+0)"
• While the radio is scanning channels, press
PTT once to stop the scan and tune the
active channel. To continue scanning, hold
down SCAN/
¼ý
for about 2 seconds until
the radio tunes the next active channel.
Press PTT again to stop scanning.
• The radio automatically scans through quiet
codes while scanning through the channels.
The quiet code feature automatically turns
on when the radio detects a quiet code
signal on a channel, and turns off after the
signal disappears.
• If you want to stay on the active channel
and quiet code, press PTT to stop scanning
before the signal disappears.
• To quickly find a quiet code, hold down
SCAN/
¼ý
or
¹
/CALL until the quiet code
appears, then release SCAN/
¼ý
or
¹
/
CALL.
