1.Tighten the column 7 into the screw hole on the
machine head.
2.Install the belt cover (right) 1 on the machine
head by set screw 2 and 8.
3.Connect the belt cover (left) 3 to the claw AB of
the belt cover (right) 1.
4.Tighten the belt cover (left) 3 by set screws 4, 5
and 6.

Note: After installing the belt cover, make sure that
the belt cover is not touch with the belt and flywheel.

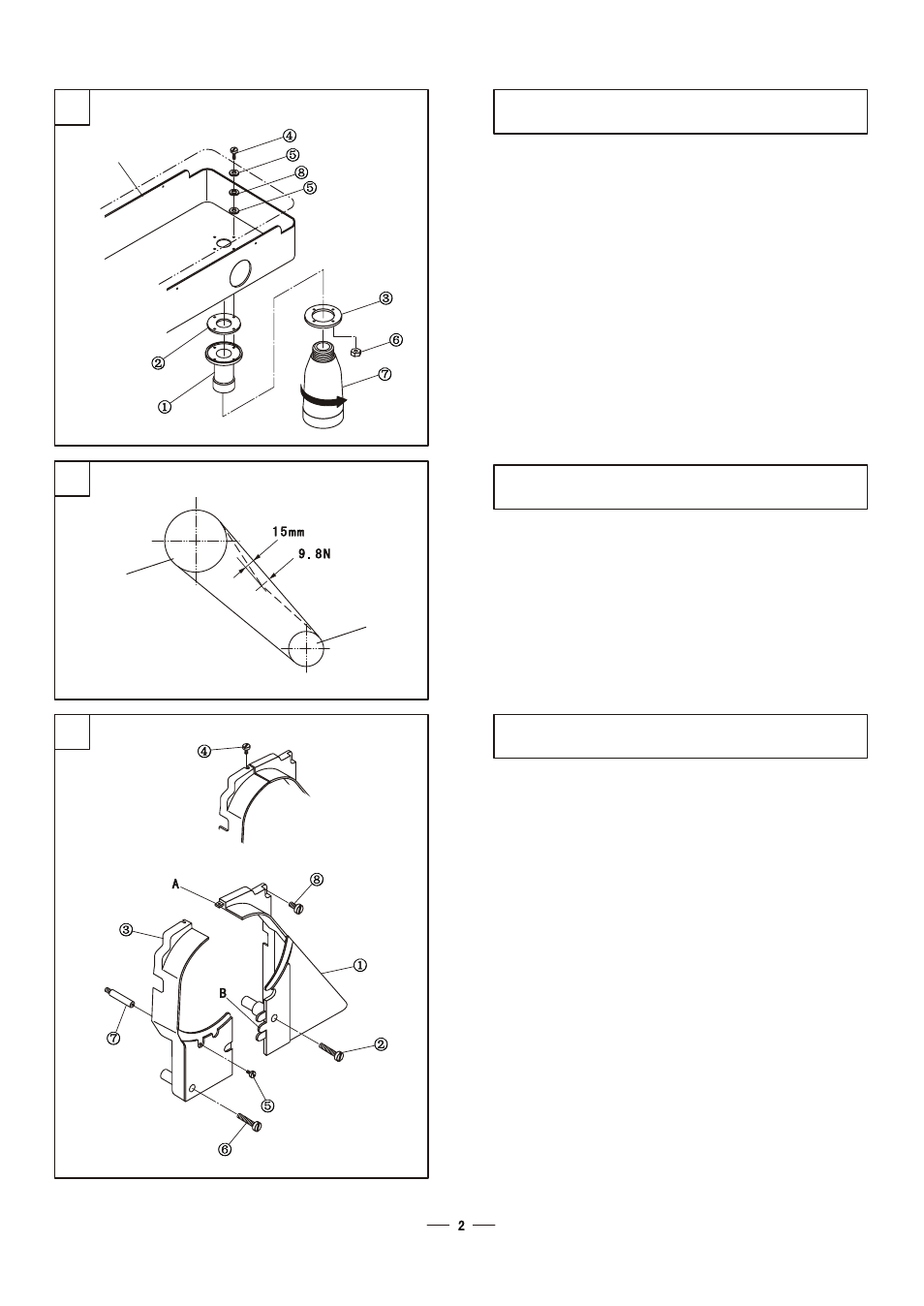

4. Installing the oil box (Fig2)

1.Install the bolt 1, oil seal 2 and spacer 3 onto the
oil reservoir, and then put the cushion 5 and spacer
8 into the set screw 4, then set it by nut 6.
2.Tighten the oil pot 7 onto the bolt 1.

5. Adjusting the tension of the belt (Fig.3)

When adjusting the tension of the belt, please
move the height of the motor, and press down the
middle of the blet with the force of 9.8N. Then there
will be a slack of 15mm.

6. Installing the belt cover (Fig.4)

Flywheel

Motor wheel belt

Oil reservoir
