Ringdale IP Router - Manual (Page 7)

7

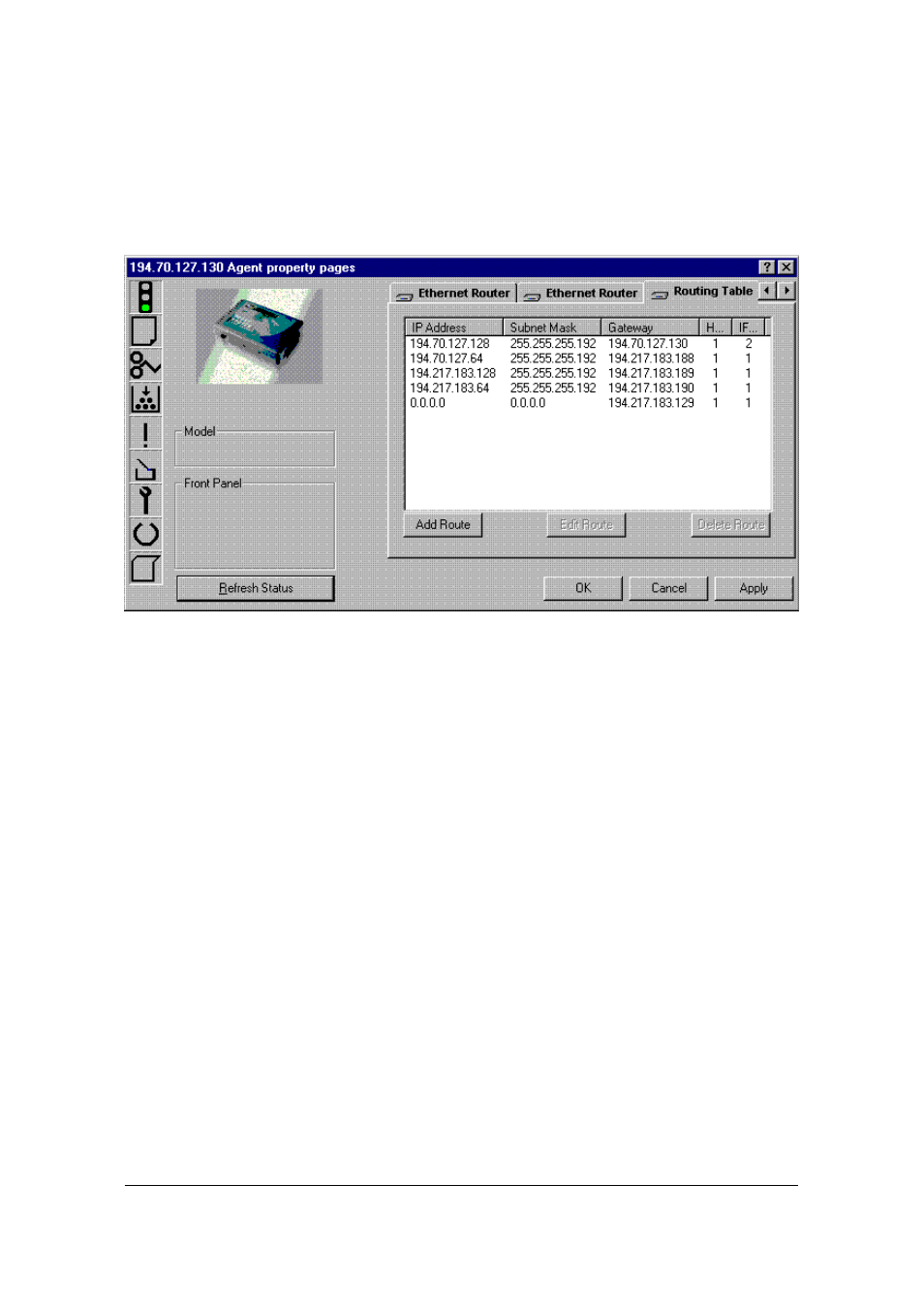

It is now necessary to tell the IP Router where to
route the IP packets to. This is done by creating
a Routing Table as above. Configure each route
as follows.
IP Address Enter here the IP Address of the subnet you want
to route to.
Subnet Mask Enter here the Subnet Mask of the above IP
Address.
Gateway Enter here the Gateway address of the above.
H (Hops) Enter here the number of hops across networks
or subnets that are necessary to route the packets
to the required IP Address.
IF (Interface) Enter here the port through which the IP packets
will be routed (either Network 1 Port or Network 2
Port).
Routing Table Page
Other property pages display further
information. Select the Routing Table page,
which is shown below.
