ˆ 1 Ramsey ISM19R or ISM24R (or equivalent)
ˆ 1 16 1/2” piece of 1/2” PVC pipe
ˆ 1 1/2” to 1” PVC coupler (non threaded)
ˆ 1 3/4” to 1” PVC coupler (threaded on the male 3/4” side only)
ˆ 1 can of PVC cement
ˆ 3 4” minimum nylon wire ties
10.0" -12.0"
Cut a slot into
the PVC boom.
Insert the Logi
narrow end first.

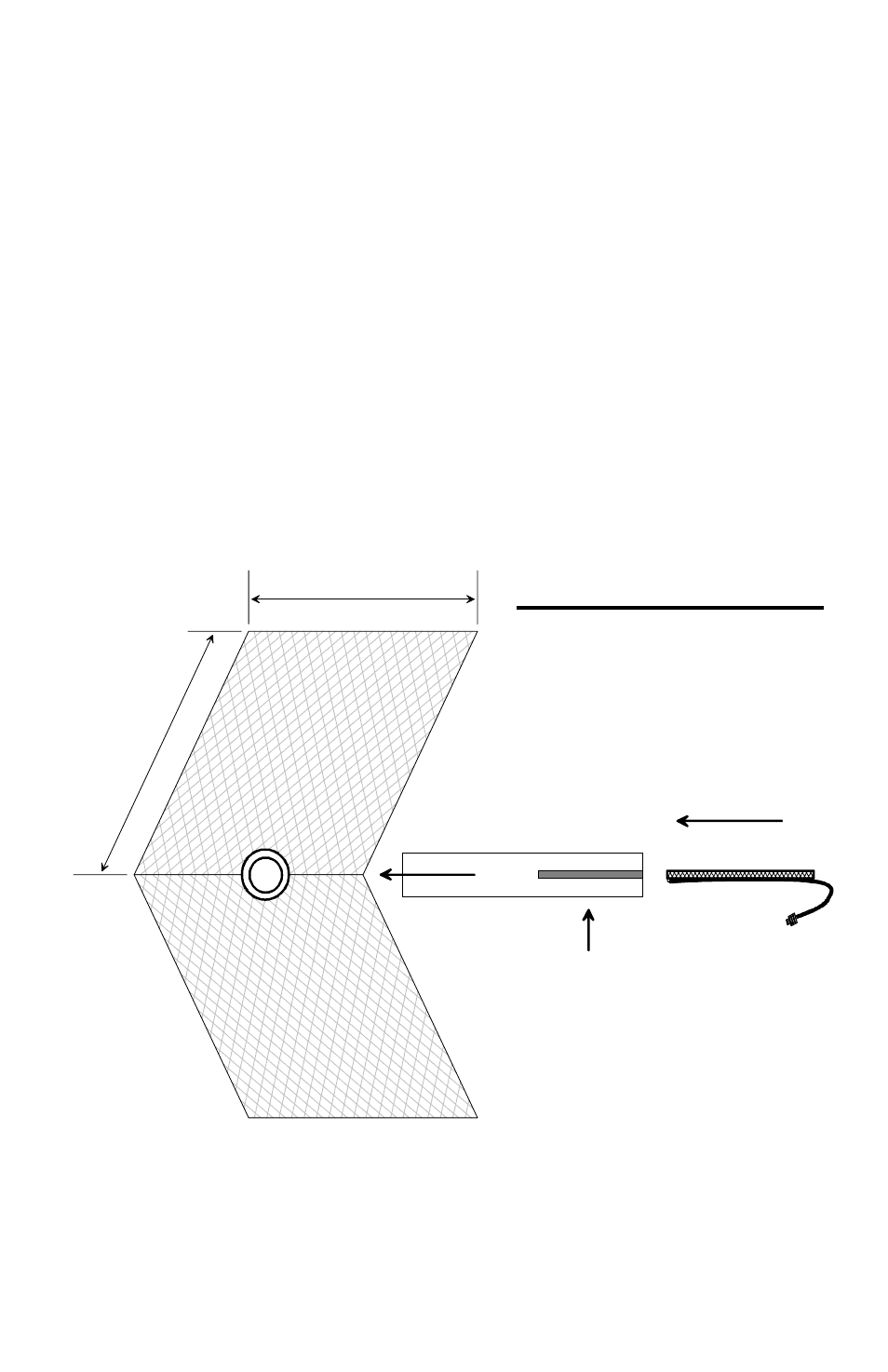

90° Corner Reflector
Logi front edge placed
1.5" to 3" from vertex.
12.0"
