Connecting peripherals
Your audio card works seamlessly with many external devices. To
connect these peripherals, refer to their relevant sections below.
Watching DVDs
Connecting a multichannel home theater receiver

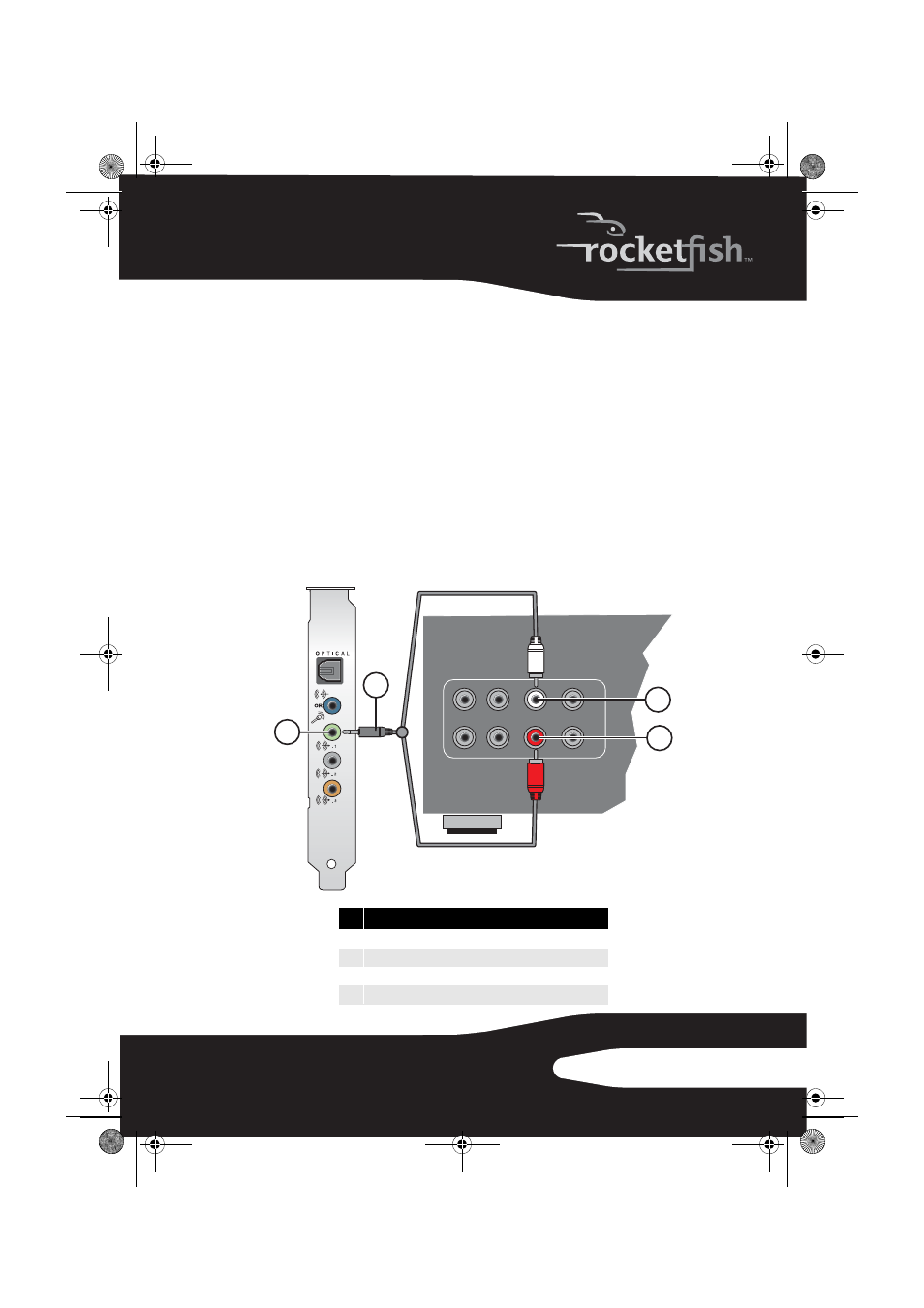

If you have a multichannel home theater or A/V receiver, connect it
directly to the audio card's Line Out 1, Line Out 2, and Line Out 3 jacks
as shown below. For more information on multichannel home
theater receiver speaker connections, consult the User's Guide of
your multichannel home theater receiver.
Front
# Jack, connector, or cable
1 Line out 1 jack
2 3.50 mm (1/8 inch) stereo-to-RCA cable (not provided)
3 Left front input jack (A/V receiver)
4 Right front input jack (A/V receiver)
