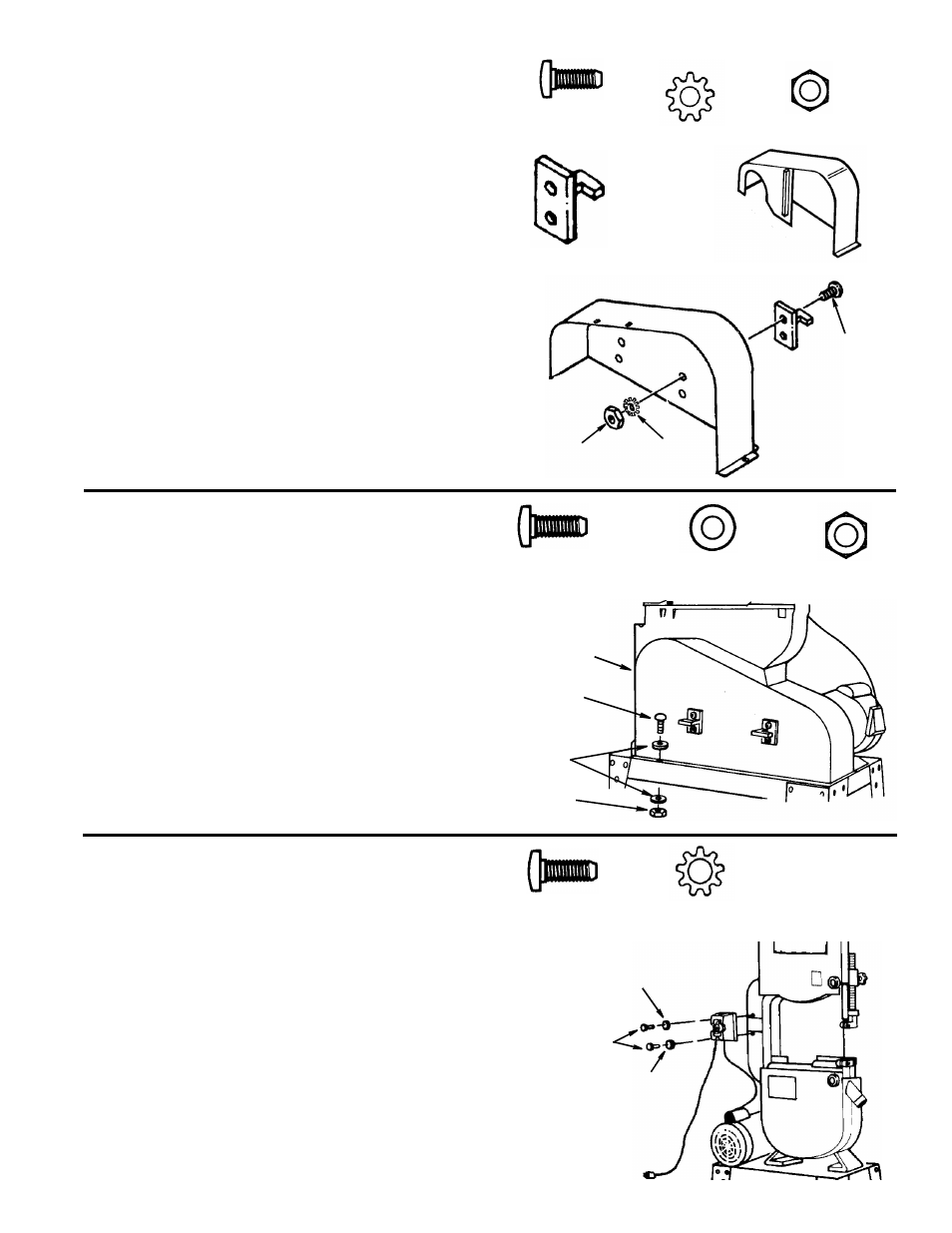

Mounting Blade Hangers
1. From the loose parts bag find the following items.
4 Screw Pan Head M4 x 0.7-10
4 Nut Hex M4 x 0.7
4 Lockwasher External M4
2 Blade Hangers
2. From the loose parts find the following item.
1 Pulley Cover
3. Attach the blade hangers on the pulley cover as
shown.
Mounting the Pulley Cover
1. From the loose parts bag find the following items.
3 Screw Pan Head M5 x 0.8-12 (approx. 1/2”)
6 M5 Washers
3 M5 Nuts
2. Place pulley cover over both pulleys and fasten to
stand using three pan head screws, six washers, and
three hex nuts, as shown.
Mounting the Switch Box
1. From the loose parts find the following hardware:
2 Screw Pan Head M5 x 0.8-12 (approx. 1/2”)
2 Lockwasher Ext. M5
2. Mount switch box assembly to frame as shown using
hardware listed.
Pulley Cover
Screw Pan Head
M4 x 0.7-10 (4)
Nut Hex M4 (4)
Blade Hanger
Nut Hex
Screw
Lockwasher
Lockwasher
External M4
Pulley Cover
Screw
Washers
Nut
Screw
Lockwasher
Lockwasher
Nut Hex M5
Washer Flat
M5 x 10 Dia.
Screw Pan Head
M5 x 0.8-12
Screw Pan Head
M5 x 0.8-12
Lockwasher
External M5
