Ramsey Electronics URC1 User Manual
Page 20
URC1
• 20

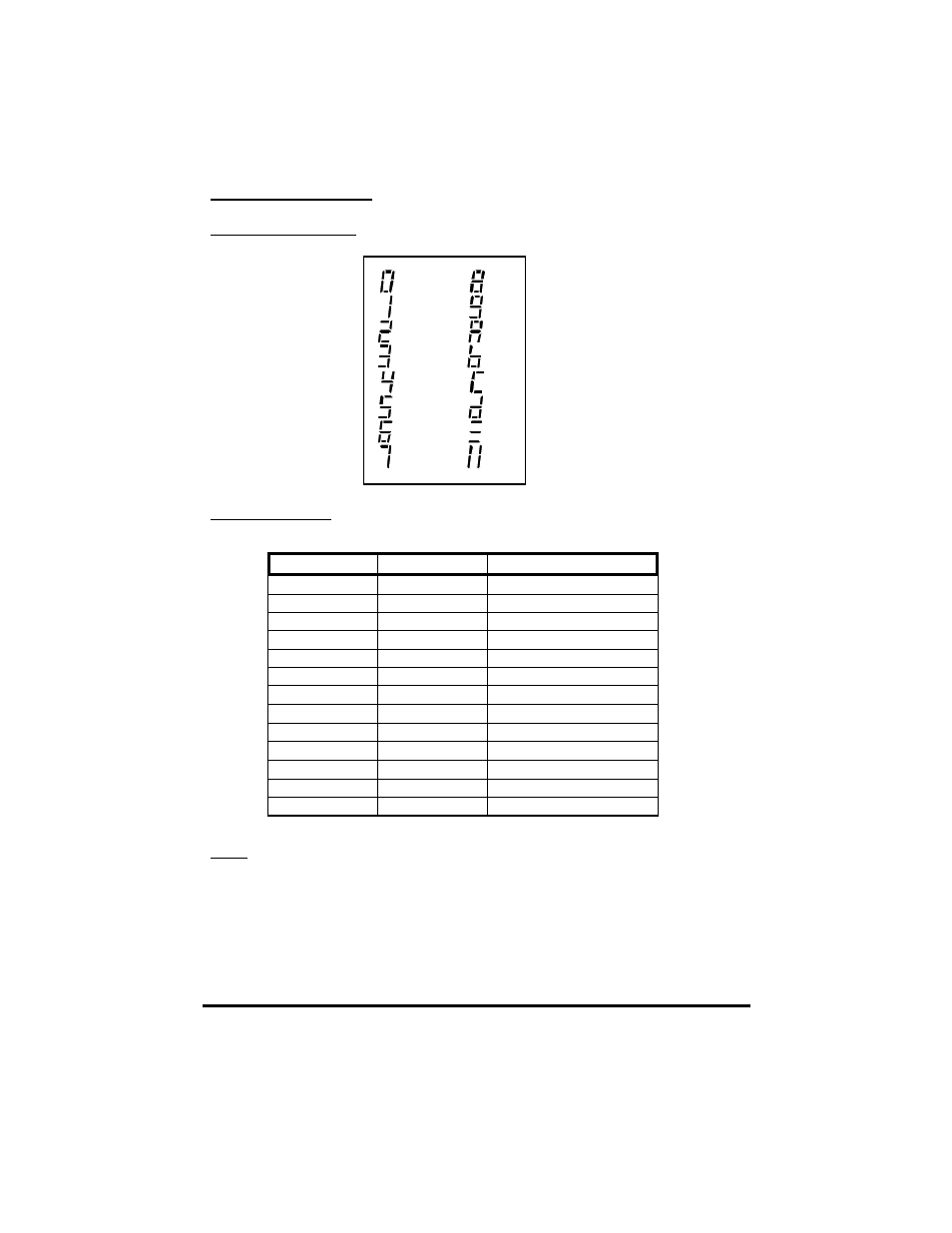

Charts and Diagrams:
Display Conventions:
Pinouts of CON2:
Note: This jack is not used unless you plan on expanding your kit for more
control pots and outputs.
0
1
2
3
4
5
6
7
8
9
A
B
C
D
#
*
Pin #
Name
Description
1
GND
Ground
2
GND
Ground
3
LDS
Load Shift Registers
5
CLK
Serial Clock
6
GND
Ground
7
DATA
Serial Data
8
GND
Ground
9
LDP
Load Pots
10
GND
Ground
11
COUT
Pots Serial Out
12
QH’
Shift Registers Out
13
+5V
+5V
14
+5V
+5V
