9. Maintenance
(EX-PS only)
(1)
EX-PS
MA1
EX-PS
MA2
EX-PS
MA3

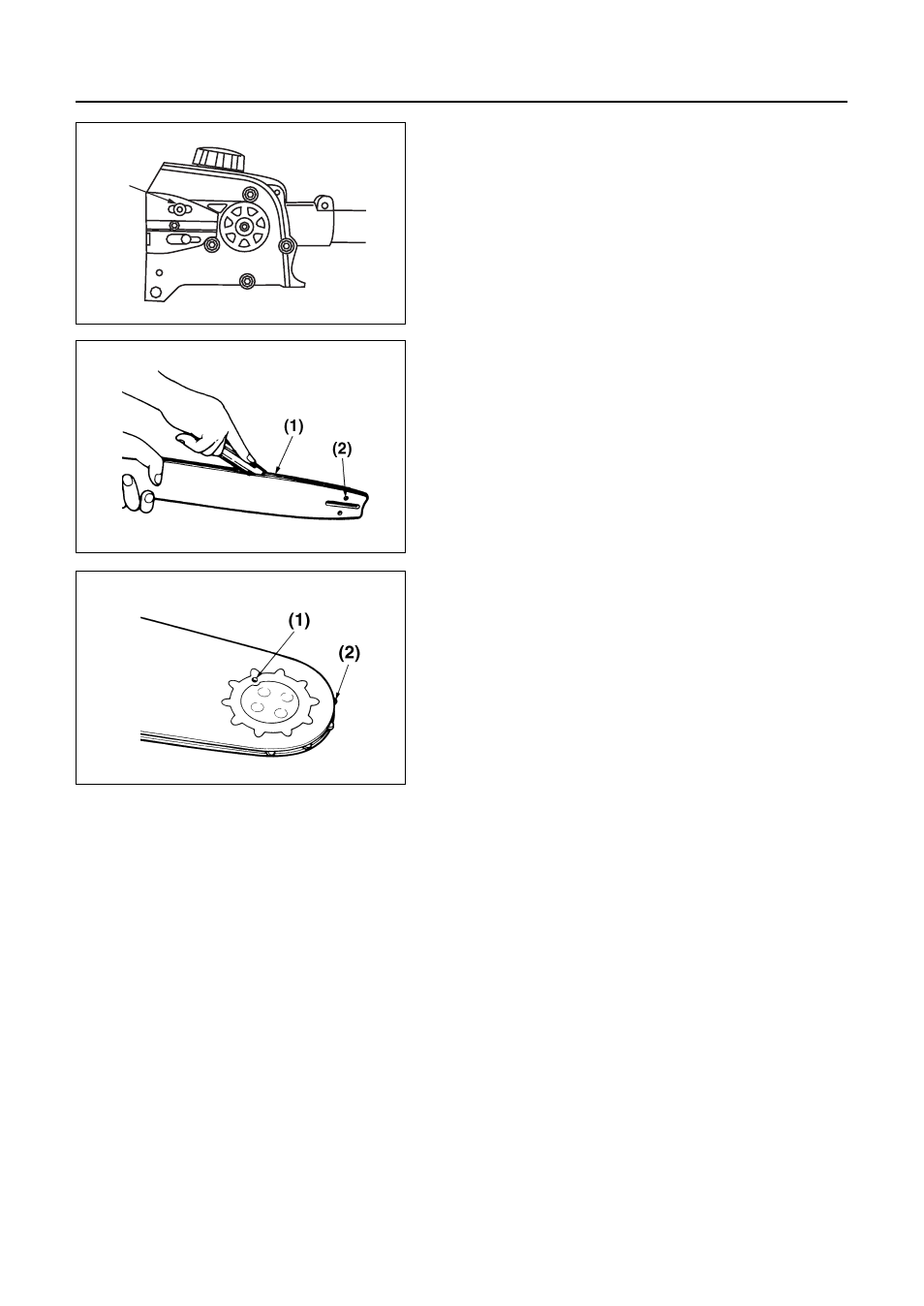

■ OILING PORT
Dismount the guide bar and check the oiling port
for clogging. (MA1)
(1) Oiling port
■ GUIDE BAR
Remove sawdust in the bar groove and the oiling
port. (MA2)
(1) Groove
(2) Oiling port
(Type: Sprocket nose)
Grease the nose sprocket from the feeding port on
the tip of the bar. (MA3)
(1) Grease port
(2) Sprocket
