6. Set up
(EX-BC only)
EX-BC
SE2

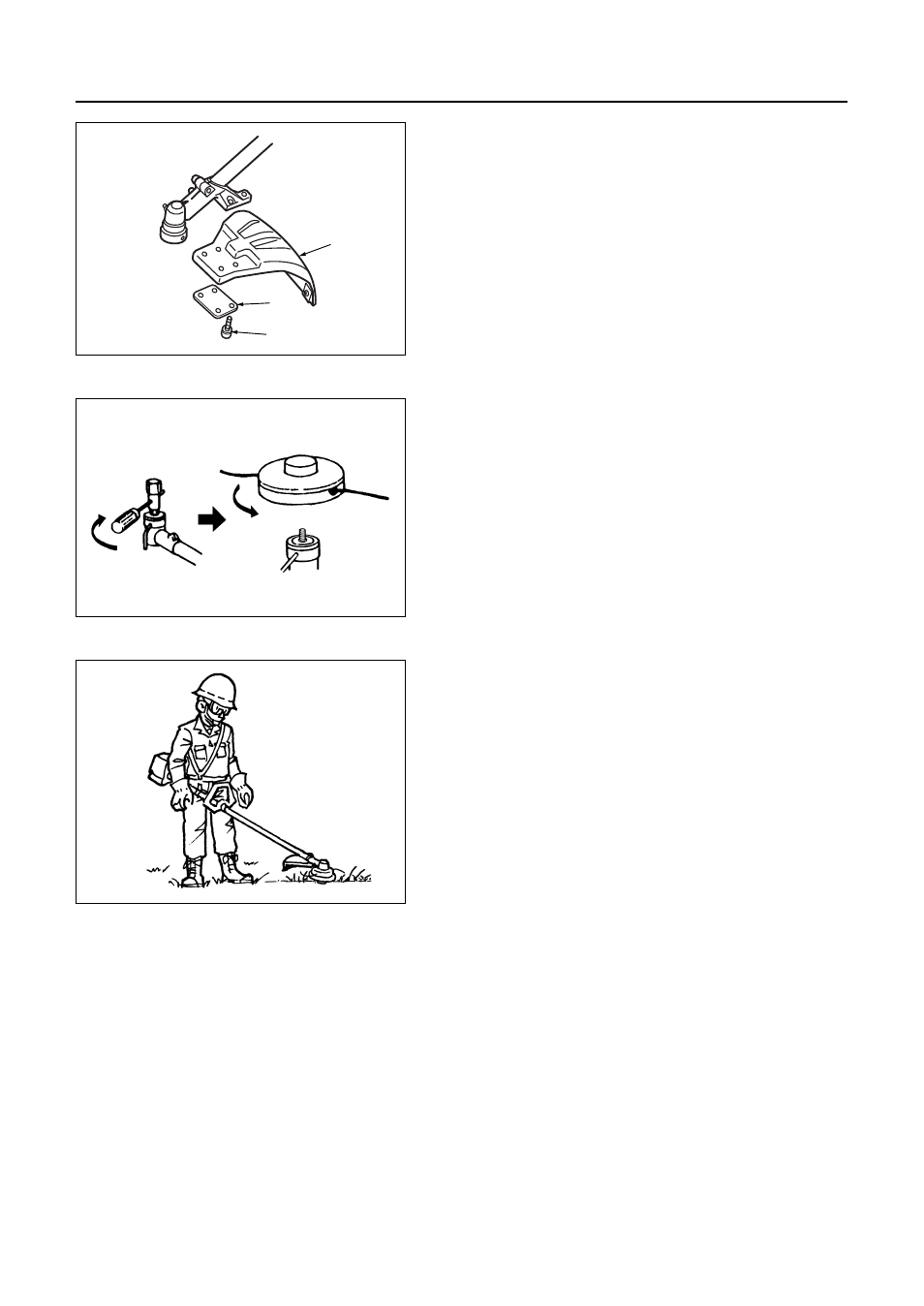

■ INSTALLING DEBRIS GUARD
• Put the debris guard on the gear box, attach it
with the 4 screws and hardware provided. (SE1)
(1) debris guard
(2) plate
(3) screw
■ INSTALLING CUTTING HEAD (SE2)
1. While locking the gear shaft, by inserting the
supplied tool into the upper holder on the gear
box, loosen and remove the hexagon nut(left-
handed)
2. Then screw in the cutting head to the gear shaft
over the holders. Hand-tighten it securely.
■ BALANCE UNIT
1. Put on strap and attach unit to strap.
2. Slide clamp up or down until unit balances with
head just touching on the ground. (SE3)
EX-BC
SE3
(1)
(2)
(3)
EX-BC
SE1
15 
