-11-
provides complete information about the
stabilization process.
7. Use the strap buckles to loosen the interior shipping straps
that secure the cabinet to the pallet. See
Figure 7 .

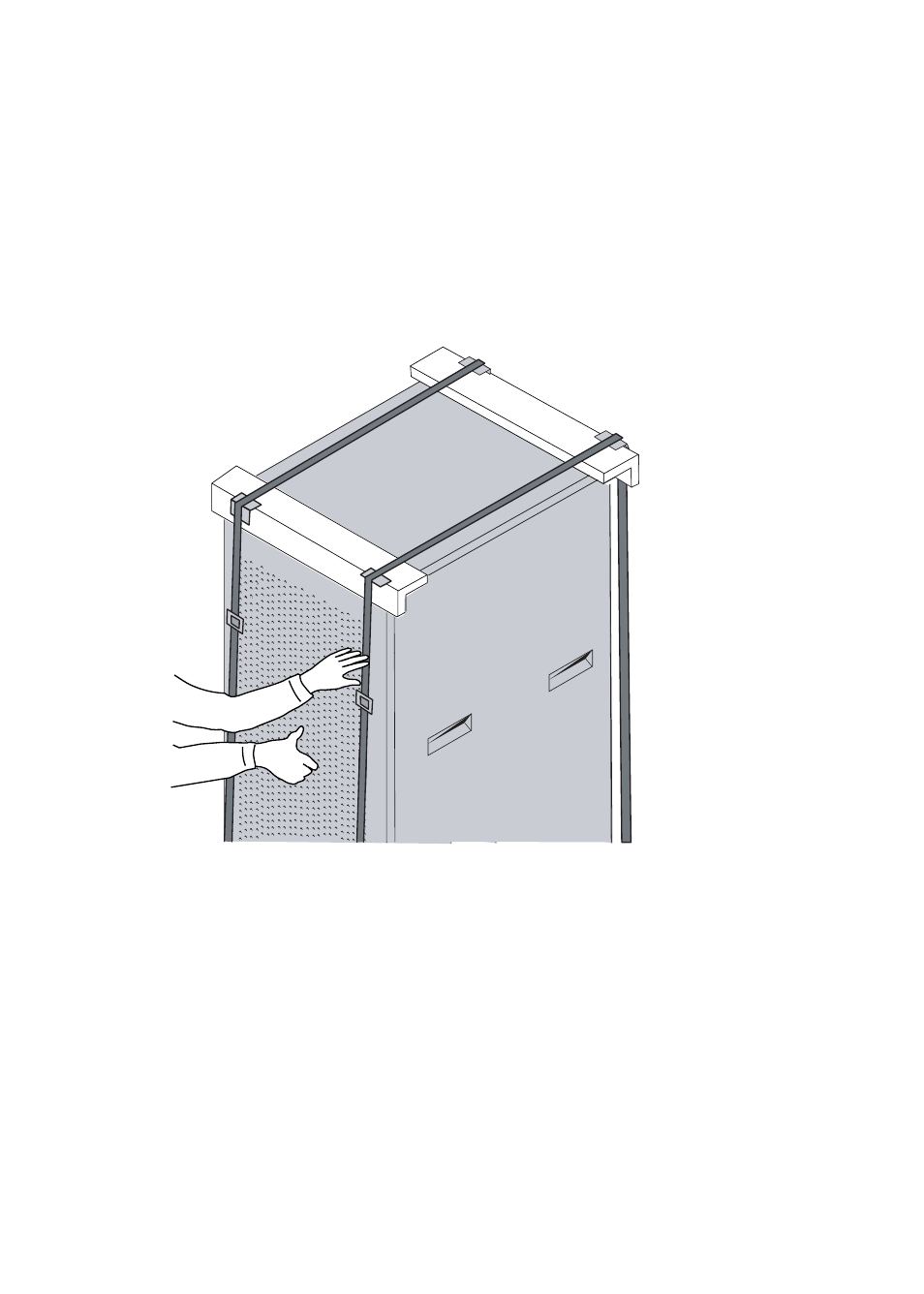

Figure 7. Removing the Interior Shipping Straps
8. Remove the two fiber protective sleeves at the top-front and
top-rear of the cabinet.
9. Loosen, but do not remove, the bolts that secure the
wooden-restraint blocks to the pallet at the bottom sides of the
cabinet. See
Figure 8 . (You do not need to loosen the bolts of
the wooden-restraint blocks at the bottom rear of the cabinet.)
To loosen the bolts, use the 9/16-inch socket wrench. You may
need to hold the nut underneath the pallet that secures the
bolt.
hsys037
