5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver , an adjustable
wrench , a rubber mallet , and pliers .

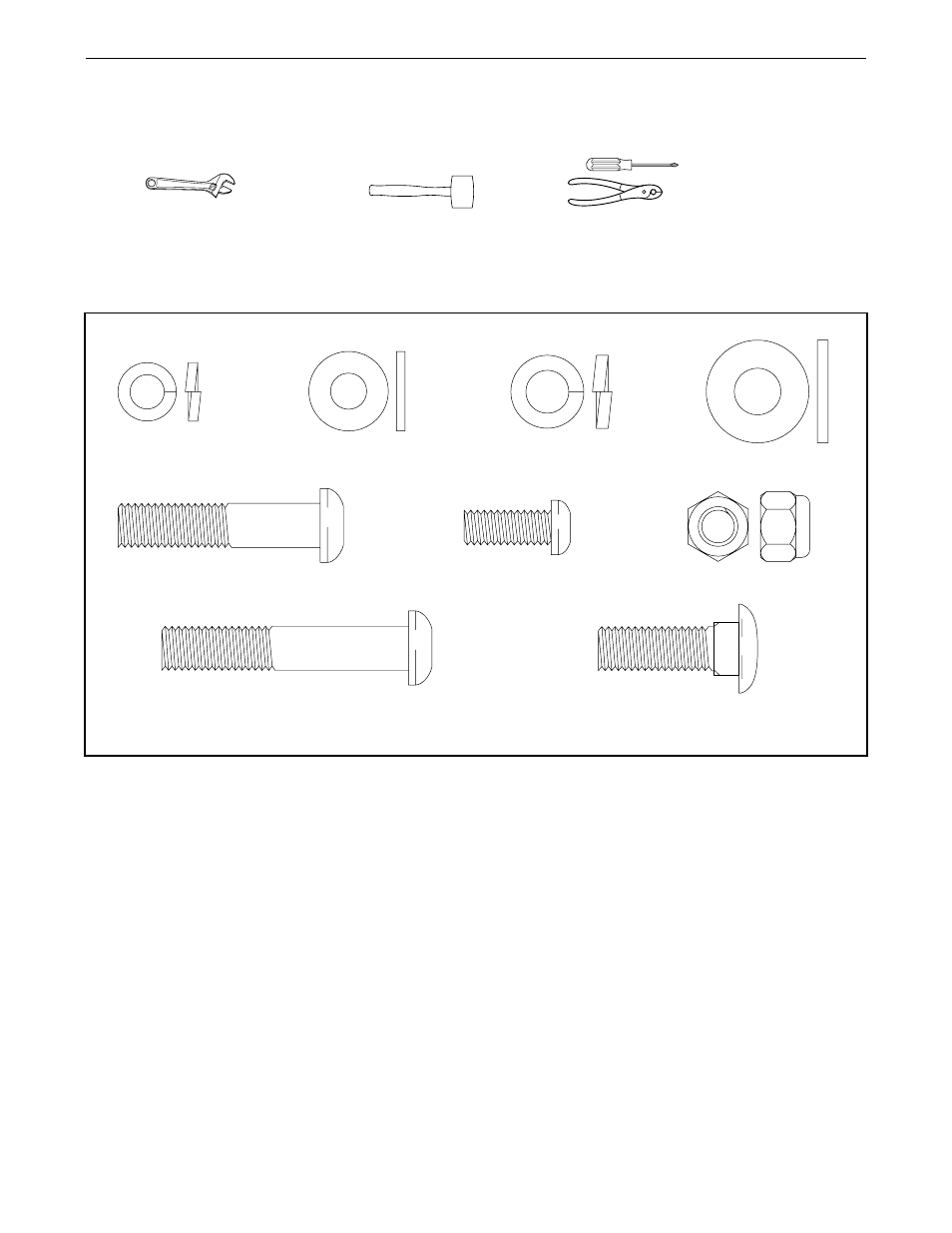

As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
page 22. The second number refers to the quantity used in assembly. Note: Some small parts may have been
pre-assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
M10 Nylon Locknut (26)–4
M8 x 19mm Button
Screw (30)–2
M8 Split
Washer (58)–2
M8 Washer (33)–2 M10 Split
Washer (22)–8
M10 Washer (63)–2
M10 x 43mm Button Screw (97)–4
M10 x 56mm Button Screw (60)–4 M10 x 33mm Carriage Bolt (61)–2
