6
Specifications
Screen Size 43.5"(H)
ן24.5"(V) inches
1106(H) ן622(V) mm
diagonal 50"
Aspect Ratio 16 : 9
Resolution 1365(H)
ן768(V) pixels
Pixel Pitch 0.032"(H) ן0.032"(V) inches
0.81(H)
ן0.81(V) mm
Color Processing 4,096 steps, 68.7 billion colors
Signals
Synchronization Range Horizontal : 15.5 to 110 kHz
(automatic : step scan)
Vertical : 50.0 to 120 Hz
(automatic : step scan)
Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*
1 , DVD* 1 , DTV* 1
Input Terminals
RGB
Visual 1 (Analog) mini D-sub 15-pin
ן1
Visual 2 (Analog) BNC (R, G, B, H/CS, V) ן1* 2
Visual 3 (Digital) DVI-D 24-pin
ן1* 3
Video
Visual 1 BNC
ן1
Visual 2 RCA-pin ן1
Visual 3 S-Video: DIN 4-pin
ן1
DVD/HD/DTV
Visual 1 RCA-pin (Y, PB[CB], PR[CR])
ן1* 1
Visual 2 BNC (Y, PB[CB], PR[CR])
ן1* 1, * 2
Visual 3 DVI-D 24-pin ן1* 3
Audio Stereo RCA
ן3 (Selectable)
External Control D-sub 9-pin ן1 (RS-232C)
Sound output 9W+9W at 6 ohm
Power Supply AC100-240V 50/60Hz
Current Rating 7.6A (maximum)
Power Consumption 435W (typical)
Dimensions 48.1 (W) ן30 (H)ן3.8 (D) inches
1222 (W) ן736 (H)ן96(D) mm
Weight 98.1 lbs / 44.5 kg (without stand)
Environmental Considerations
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity 20 to 80% (no condensation)
Altitude 0 to 9180 feet / 0 to 2800 m
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity 10 to 90% (no condensation)
Altitude 0 to 9840 feet / 0 to 3000 m
Front Panel User Controls Power on/off, Input source select,
Volume up/down/ OSM control
Remote Control Functions Power on/off, Input source select, OSM
control,Volume up/down, Cursor (UP,
DOWN,LEFT, RIGHT), Zoom up/down,
Split screen buttons
OSM Functions PICTURE (PICTURE MEMORY/CONTRAST/
BRIGHTNESS/SHARPNESS/COLOR/TINT/NR/
COLOR TEMP./WHITE BALANCE/GAMMA/
LOW TONE/SET UP LEVEL/COLOR TUNE/
CINEMA MODE/PICTURE MODE), AUDIO
(BASS/TREBLE/BALANCE/AUDIO INPUT1/
AUDIO INPUT2/AUDIO INPUT3), IMAGE
ADJUST (ASPECT MODE/V-POSITION/H-
POSITION/V-HEIGHT/H-WIDTH/AUTO
PICTURE/FINE PICTURE/PICTURE ADJ.),
SET UP (LANGUAGE*/BNC INPUT/D-SUB
INPUT/HD SELECT/RGB SELECT/DVI SET UP/
COLOR SYSTEM/BACK GROUND/GRAY
LEVEL/S1/S2/DISPLAY OSM/OSM ADJ./ALL
RESET), FUNCTION (POWER MGT./INPUT
SKIP/SUB. P DETECT/ZOOM NAV/PICTURE
FREEZE/PDP SAVER [PEAK BRIGHT /
ORBITER / INVERSE/WHITE / SCREEN WIPER
/ SOFT FOCUS / OSM ORBITER / OSM
CONTRAST]/CLOSED CAPTION/CAPTION
CONT), SIGNAL INFO.
The features and specifications may be subject to change without
notice.
* 1 HD/DVD/DTV input signals supported on this system
480P (60 Hz)
480I (60 Hz) 525P (60 Hz)
525I (60 Hz) 576P (50 Hz) 576I (50 Hz)
625P (50 Hz) 625I (50 Hz) 720P (60 Hz)
1035I (60 Hz) 1080I (50 Hz) 1080I (60 Hz)
* 2 The 5-BNC connectors are used as RGB/PC2 and HD/DVD2 input.
Select one of them under “BNC INPUT”.
* 3 Compatible with HDCP.
Supported Signals
• 640
؂480P @ 59.94/60Hz
• 1920
؂1080I @ 50Hz
• 1280 ؂720P @ 59.94/60Hz • 720 ؂576P @ 50Hz
• 1920
؂1080I @ 59.94/60Hz
• 1440 (720)
؂576P @ 50Hz
• 720 ؂480P @ 59.94/60Hz
• 1440 (720) ؂480I @ 59.94/60Hz
Note: In some cases a signal on the plasma monitor may not be displayed
properly. The problem may be an inconsistency with standards from
the source equipment (DVD, Set-top box, etc...). If you do experience
such a problem please contact NEC Solutions (America), Inc. and also
the manufacturer of the source equipment.

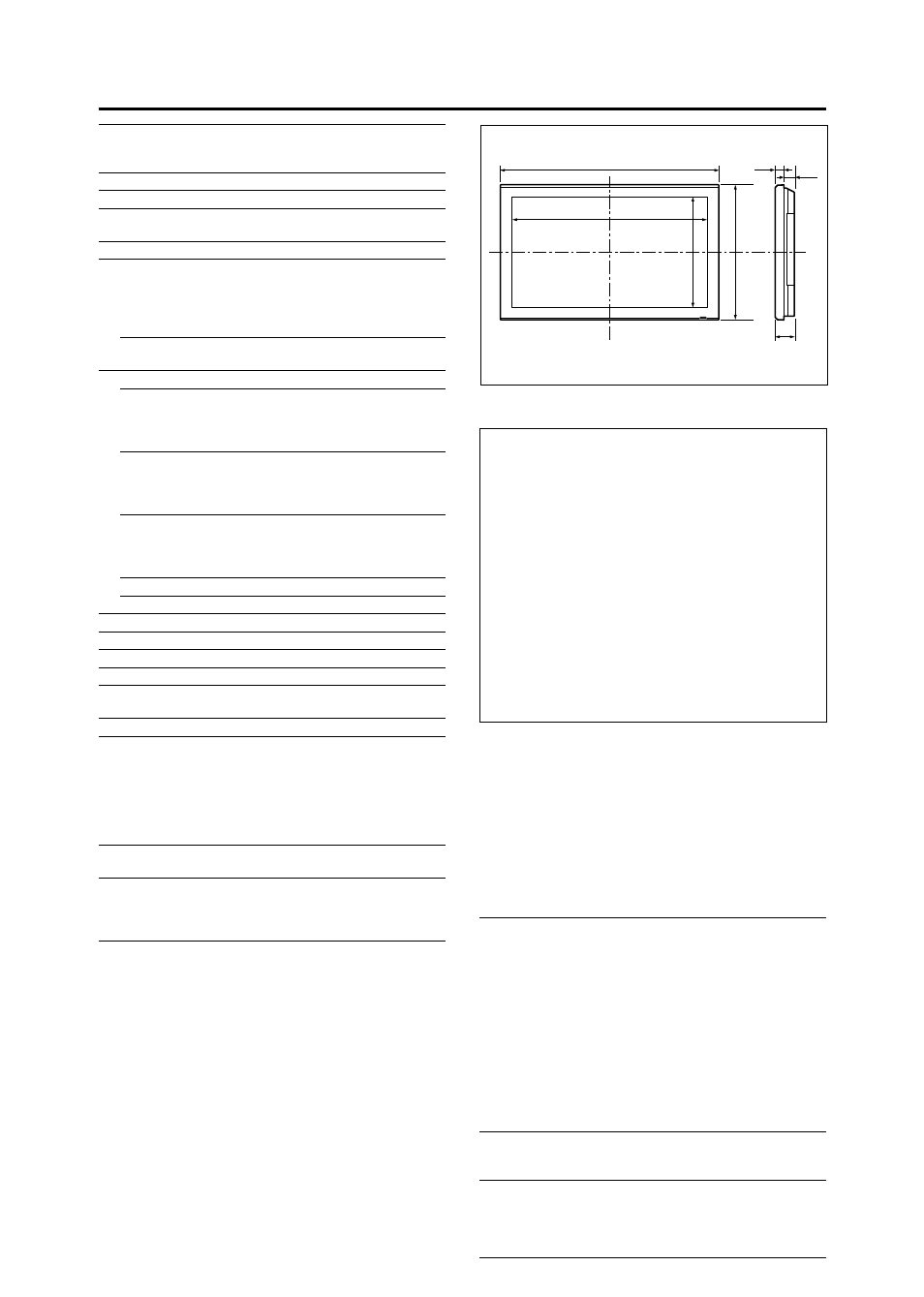

Units are in inch
(mm)
3.8"
(96)
1.5"
(38)
2.3"
(58)
48.1" (1222)
30" (736)
43.5" (1106)
24.5" (622)
*English, German, French, Italian, Spanish, Swedish,
Chinese, Russian
Other Features Motion compensated 3D Scan Converter (NTSC,
PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3
pull down Converter (NTSC, 480I, 525I, 1035I,
1080I (60Hz)), 2-2 pull down Converter (PAL,
576I, 625I, NTSC, 480I, 525I), Digital Zoom
Function (100-900% Selectable), Self Diagnosis,
Image Burn reduction tools (PEAK BRIGHT,
INVERSE, WHITE, ORBITER, SCREEN
WIPER), Color Temperature select (high/middle/
middle low/low, user has 4 memories), Auto
Picture, Input Skip, Color Tune, Low Tone (3
mode), Gamma Correction (4 mode), Plug and
play (DDC1, DDC2b, RGB3: DDC2b only),
Split screen operations
Accessories Remote control with two AAA batteries, Power
cord, Manuals, Safety metal fittings, Ferrite cores,
Bands, Cable clamps, HDMI-DVI cable
Regulations UL Approved (UL 60950-1 and UL65000,
CAN/CSA C22.2 No.60950-1 and CAN/CSA-
E60065-00)
DOC Canada requirements
Meets FCC Class B requirements
Bezel color is silver.
