Front panel

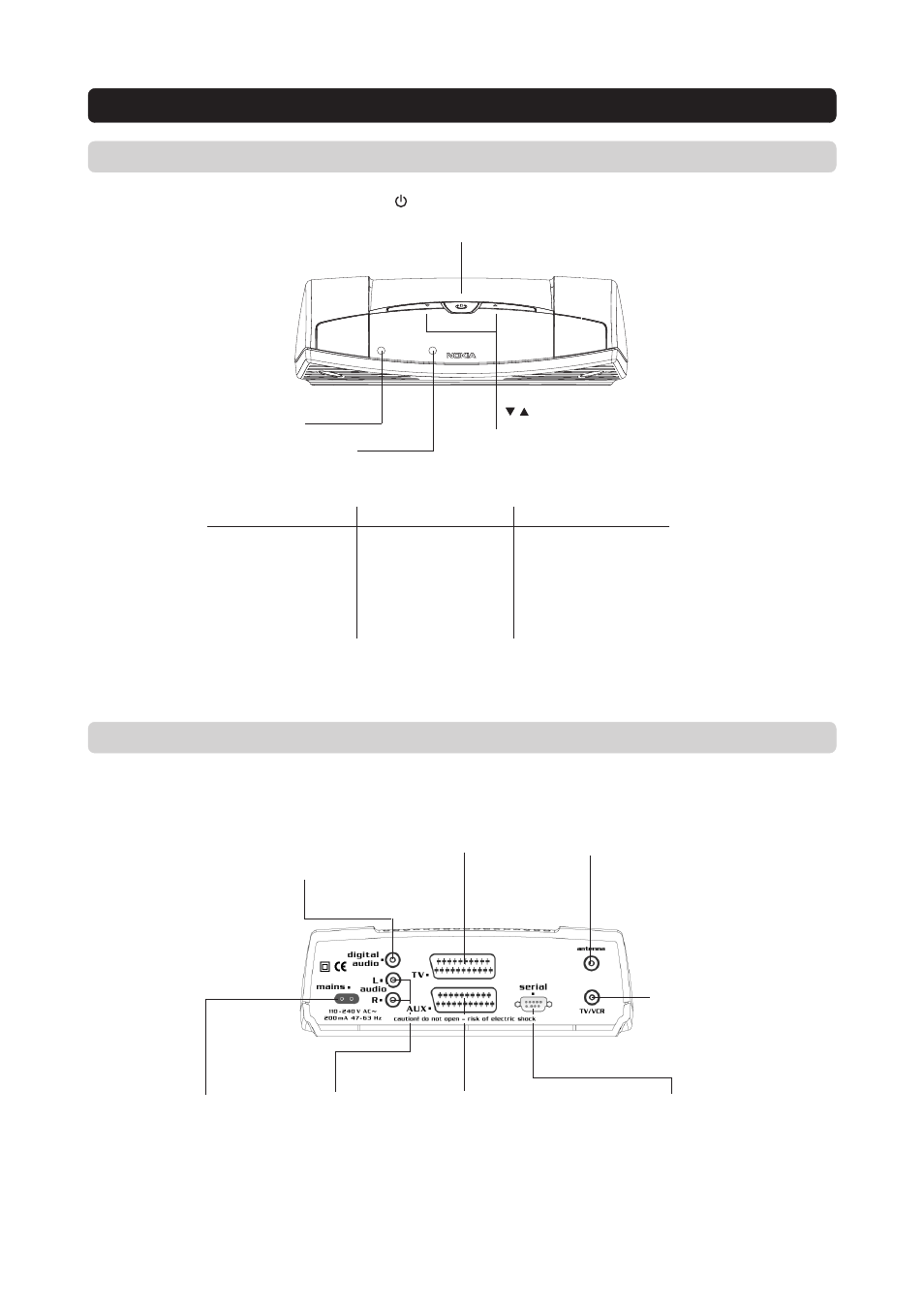

FRONT AND REAR PANEL
Function
ON
Standby
Locked to channel
Remote control feedback
SW download
Error
LED indicator 1
Green
Red
-
-
Continous green flashing
Continous red flashing
LED indicator 2
-
-
Green (locked) / Red (not locked)
Single flash
Continous green flashing
Continous red flashing
to put the Mediamaster
in and out of standby
mode
to change channels
LED 1
LED 2
Rear panel
audio L R
RCA connectors
Stereo outputs for
connection to a HiFi
system
TV SCART
for connection
to the TV
AUX SCART
for connection to a VCR,
or another audio/video
source
digital audio
S/PDIF digital out-
put for connection
to a HiFi system
mains lead
110-240 V AC
antenna
For connection
of the antenna
serial port
for connection to
a PC
TV/VCR
for an RF-cable to the antenna
input of the TV or VCR
