→ REPAIR PARTS

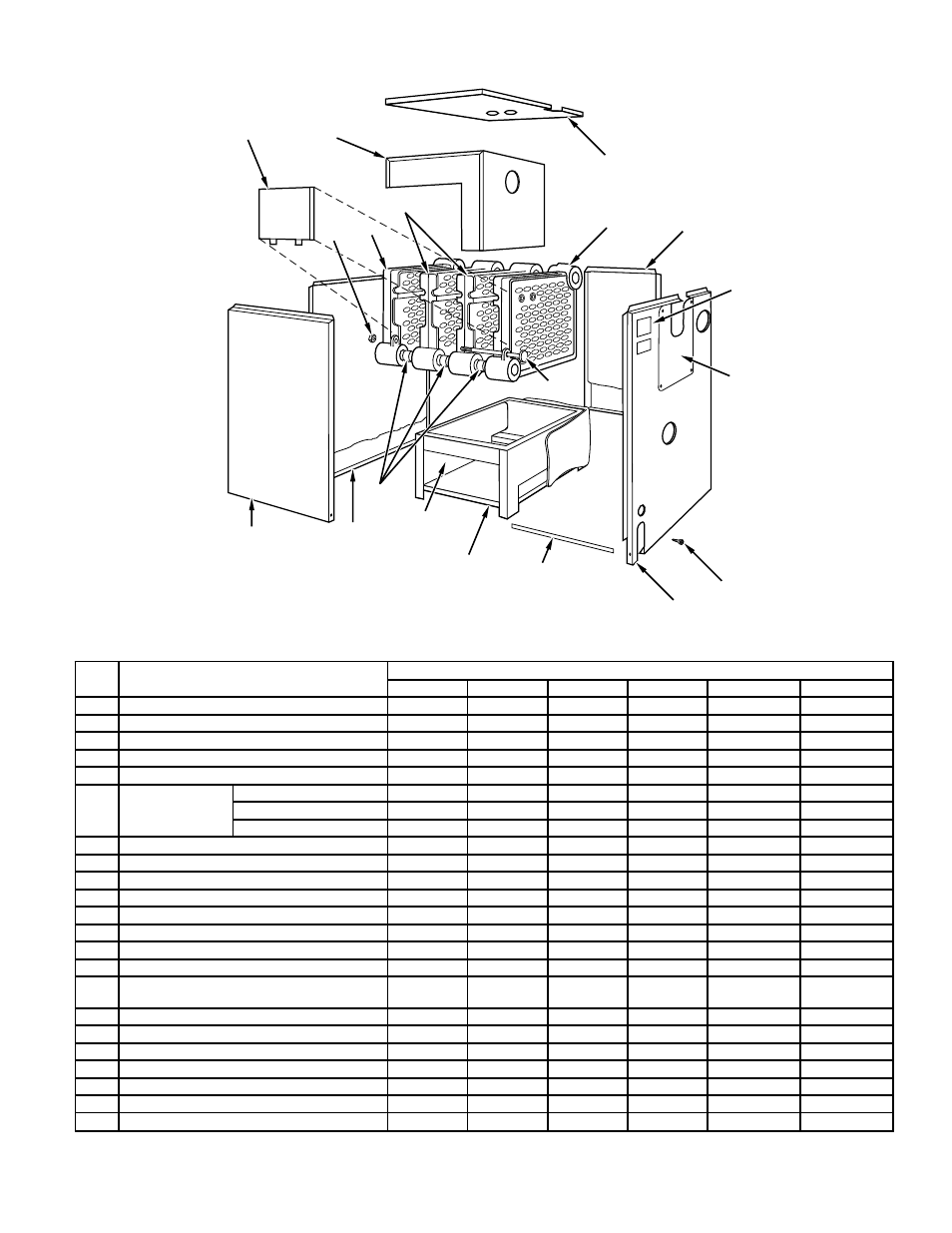

Jacket—Section and Base Parts This is a Repair Parts List—Not a Packing List
KEY
NO.
DESCRIPTION
PART NO.
2 Section 3 Section 4 Section 5 Section 6 Section 7 Section
1 Jacket, Right Side Panel 730-00-1050 730-00-1050 730-00-1050 730-00-1050 730-00-1050 730-00-1050
2 Blower Cover Plate 730-00-1170 730-00-1170 730-00-1170 730-00-1170 730-00-1170 730-00-1170
3 Rating Plate 146-80-005 146-80-005 146-80-005 146-80-005 146-80-005 146-80-005
4 Jacket Tie Bar 425-01-494 425-01-495 425-01-496 425-01-497 425-01-498 425-01-499
5 Boiler Base 425-01-733 425-01-734 425-01-735 425-01-736 425-01-737 425-01-738
6 Base Insulation
Base Side (2 Required) 146-14-020 146-14-020 146-14-020 146-14-020 146-14-020 146-14-020
Base Front 146-14-112 146-14-113 146-14-114 146-14-115 146-14-116 146-14-117
Base Rear 146-14-122 146-14-123 146-14-124 146-14-125 146-14-126 146-14-127
7 Nipple, Boiler 433-01-976 433-01-976 433-01-976 433-01-976 433-01-976 433-01-976
8 Jacket, Left Side Panel 730-00-1040 730-00-1040 730-00-1040 730-00-1040 730-00-1040 730-00-1040
9 Jacket, Front Panel 730-00-1032 730-00-1033 730-00-1034 730-00-1035 730-00-1036 730-00-1037
10 1/4-in. Tie Rod (2 Required) 146-05-008 146-05-002 146-05-002 146-05-051 146-05-053 146-05-005
11 Nut and Washer 146-95-041 146-95-041 146-95-041 146-95-041 146-95-041 146-95-041
12 Section, Left End 410-01-019 410-01-019 410-01-019 410-01-019 410-01-019 410-01-019
13 Section, Intermediate — 410-01-018 410-01-018 410-01-018 410-01-018 410-01-018
14 Jacket, Top Panel 730-00-1012 730-00-1013 730-00-1014 730-00-1015 730-00-1016 730-00-1017
15 Cleanout Plate(s) 425-01-539 425-01-540 425-01-541 425-01-542
(1) 425-01-540
(1) 425-01-541
(2) 425-01-541
16 Flue Collector 730-00-3002 730-00-3003 730-00-3004 730-00-3005 730-00-3006 730-00-3007
17 Section, Right End 410-01-017 410-01-017 410-01-017 410-01-017 410-01-017 410-01-017
18 Jacket, Back Panel 730-00-1022 730-00-1023 730-00-1024 730-00-1025 730-00-1026 730-00-1027
* Jacket Complete 730-70-1002 730-70-1003 730-70-1004 730-70-1005 730-70-1006 730-70-1007
19 No. 10 X 1/2-in. Sheet Metal Screw 146-95-074 146-95-074 146-95-074 146-95-074 146-95-074 146-95-074
* Block Assembly (Includes 7, 10, 11, 12, 13, 17) 410-01-212 410-01-312 410-01-412 410-01-512 410-01-612 410-01-712
* Combustible Floor Base 146-14-031 146-14-031 146-14-031 146-14-031 146-14-032 146-14-032
* Not illustrated.
A95202
14
17 18
3
2
19
1
4
5
6
7
8
9
15
16
10
11
12
13
—21—
