19
W415-0484 / A / 07.23.06
A
C
B

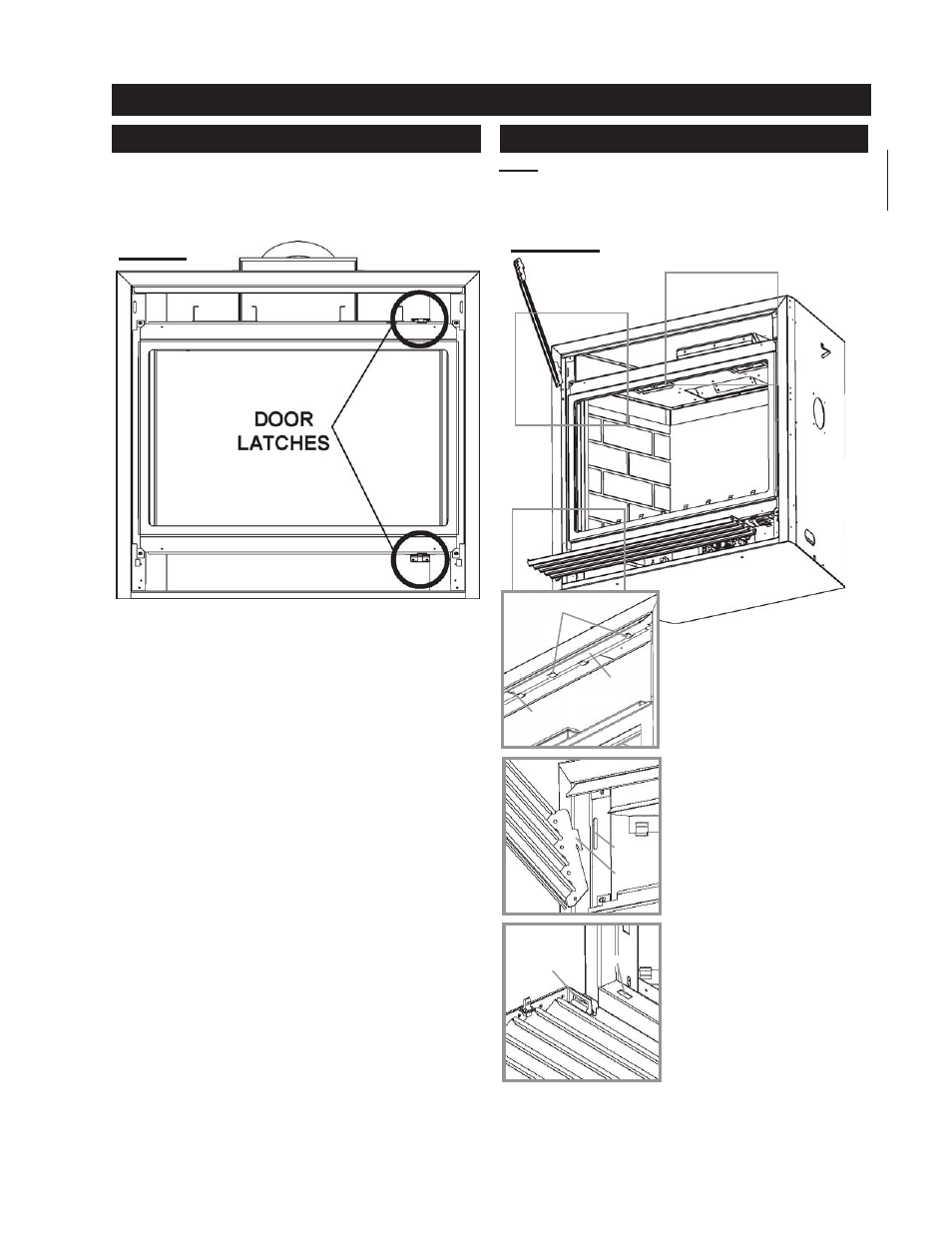

The upper louvres must be removed to allow the door to be
opened or closed. To access the lower door latch, open
the valve control door. Release the top and bottom door
latches, located at the right side of the door.
FINISHING
L36 LOUVRE INSTALLATION DOOR REMOVAL & INSTALLATION
FIGURE 35 a-c
HOOD
Attach the hood by pressing the
top flange into the clips along
the top of the louvre opening.
Secure using a screw through
the centre slot.
LOWER LOUVRES
Insert the hinge clips into the
slots located at the bottom left
and right corners of the unit.
To remove the louvres, pull the
back tabs of the clips forward,
while pushing the louvre assem-
bly back. Lift the clip.
UPPER LOUVRES
Insert the louvre tabs into the
slots located at the top left and
right corners of the unit.
S L O T
TA B
B
C
HINGE
CLIP
S L O T
FIGURE 34
A
CLIPS
C E N T R E
S L O T
FLANGE
Note: The protective wrap is best removed when the
assembly is at room temperature but this can be improved
if the assembly is warmed, using a hair dryer or similar
source.
