NTI UNIMUX SERIES USB KVM SWITCH

3

































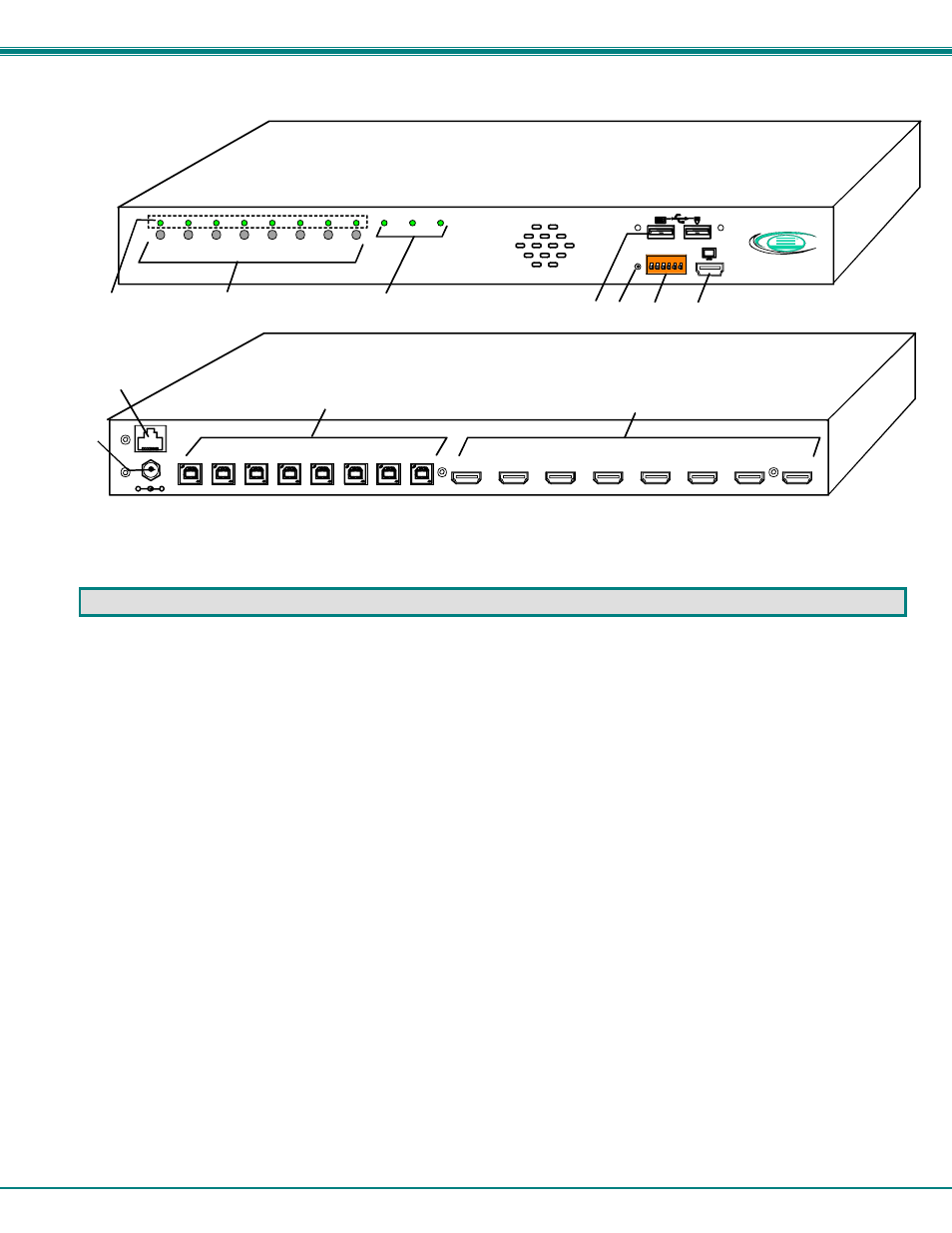

FEATURES AND FUNCTIONS


1. CPU Status LEDs- for visual indication of connection between the user and a specific CPU.

2. CPU Select Switches- push to manually switch to a specific CPU or change the switch operating mode

3. Mode Status LEDs- for visual indication of switch operating mode

4. USB DEVICES- USB type A female connector- for connection of user USB keyboard and mouse

5. DDC- for refreshing the DDC information between the monitor and CPU

6. RS232- (optional) Dip switches for configuring switch address when RS232 is used

7. MONITOR- HDMI Type A female connector- for connection of the user DVI video monitor

8. 5VDC- power input connector for attachment of the AC adapter

9. RS232-(optional) RJ45 serial connector- for attachment of RS232 control cable

10. CPU x- USB type B female connector-for connection of USB device cable from CPU(s)

11. VIDEO-x- HDMI Type A female connectors- for connecting video cables from CPUs












9

8

10

11

Rear View of UNIMUX-DVI-8

1

3

4

6

Front View of UNIMUX-DVI-8

8

7

6

5

4

3

2

1

Scan

Command

Broadcast

UNIMUX

TM

RS232

DDC

NTI

R

Ne two rk Technologies Inc

1

8

ON

-

+

CPU 1

CPU 2

CPU 3

CPU 4

CPU 5

CPU 6

CPU 7

CPU 8

VIDEO 1

VIDEO 2

VIDEO 3

VIDEO 4

VIDEO 5

VIDEO 6

VIDEO 7

VIDEO 8

RS232

5VDC

5

7

2
