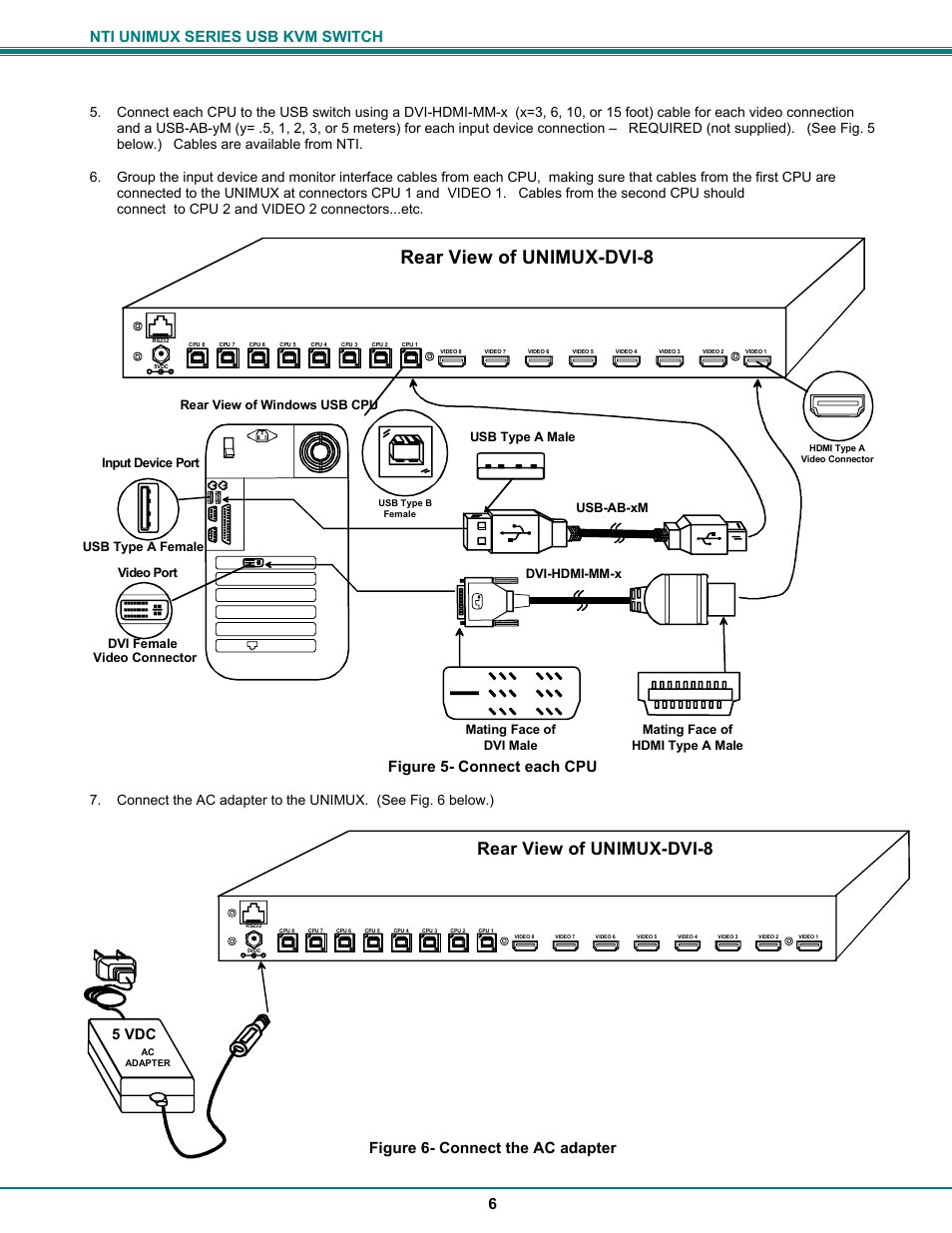

Rear view of unimux-dvi-8, Nti unimux series usb kvm switch 6, Figure 5- connect each cpu – Network Technologies DVI-x User Manual

Page 9: Figure 6- connect the ac adapter, 5 vdc

Text mode
Original mode

Rear view of unimux-dvi-8, Nti unimux series usb kvm switch 6, Figure 5- connect each cpu | Figure 6- connect the ac adapter, 5 vdc | Network Technologies DVI-x User Manual | Page 9 / 22
