English

26

4.

ADJUSTMENT

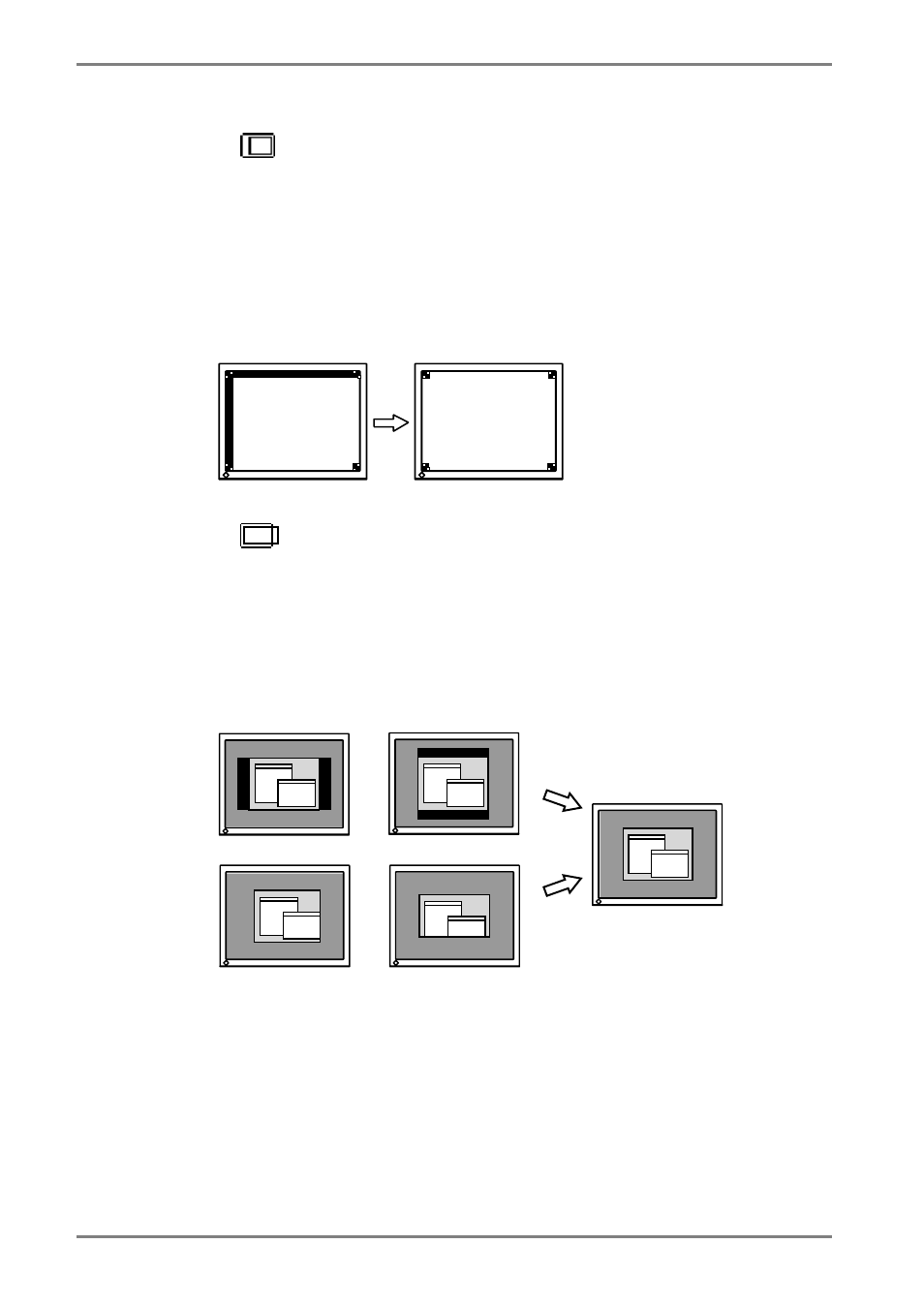

(3) The screen position is not incorrect.

Use the adjustment.

The correct displayed position of the monitor is decided because the number
and the position of the pixels are fixed. The adjustment moves the
image to the correct position.
Select and adjust the position of the upper left corner of the image
by using the up, down, right and left buttons in order to align the screen.

Select and confirm if the resolution now being displayed is the
same as the input resolution. If it is not, adjust the vertical resolution using the
up and down button and adjust the horizontal resolution using the right and
left buttons.

Smaller than the actual screen images.

Larger than the actual screen images.

Adjusted to actual screen

If vertical bars of distortion appear after finishing the adjustment,
return to adjustment and repeat the previously explained adjustment
procedure (“Clock” → “Phase” → “Position”)

(4) Screen image is smaller or larger than the actual screen images.

Use the adjustment.

Adjustment is needed when the input signal resolution and the resolution now
being displayed are different.
