English

Input Connector
(monitor) / DVI

Digital graphics board

NOTE

• The monitor is not compatible with a Power Mac G4/G4 Cube ADC (Apple

Display Connector)

2.

Plug the power cord into the power connector on the rear of the
monitor.

3.

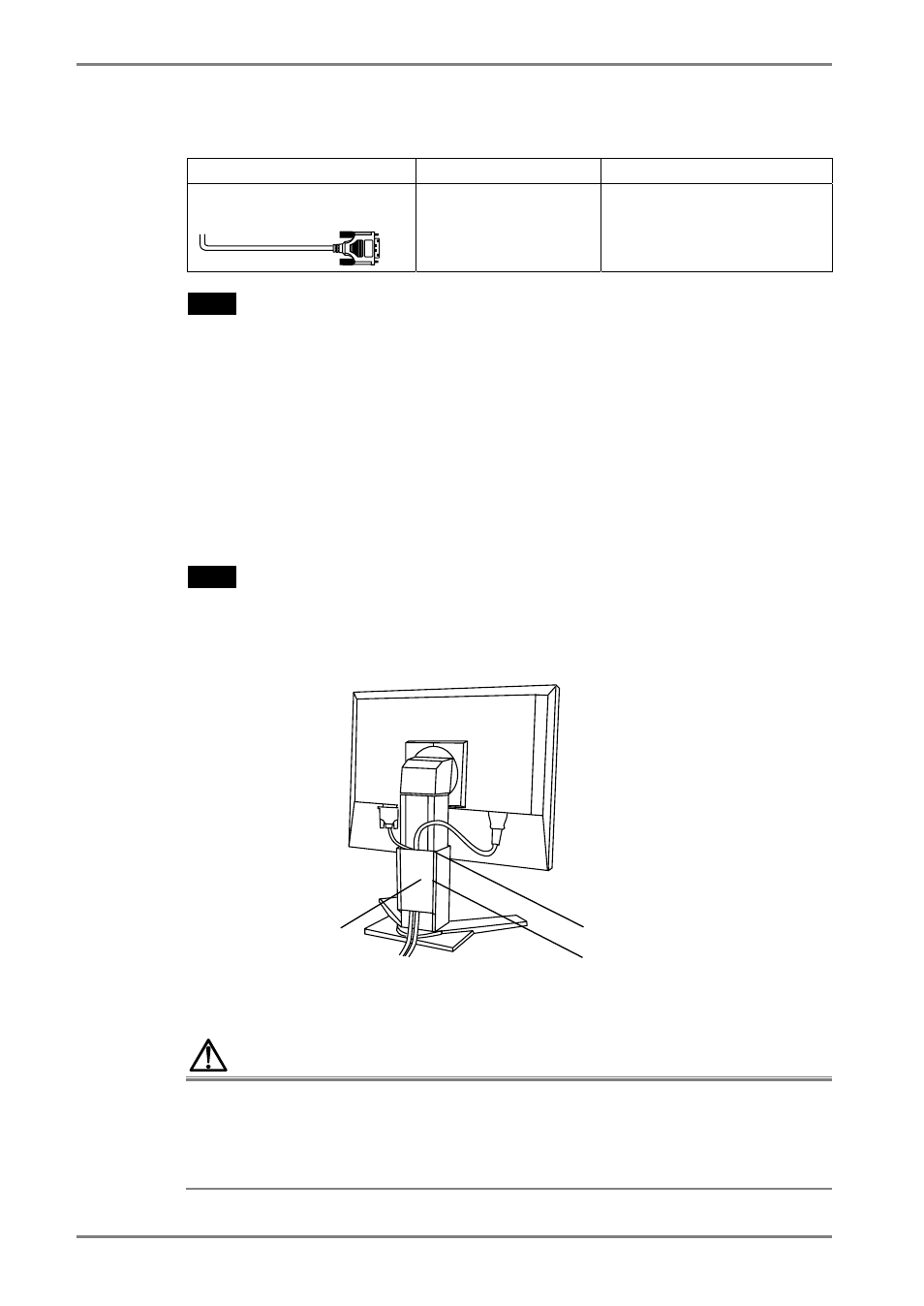

Lead the power cord and signal cable into the cable holder at rear of
the monitor.

NOTE

• When housing the cables into the cable holder, lead them to the cable entrance

side and pinch the projection to open the cable entrance.

Cable Holder

Cable Entrance

Digital Input

Signal Cable

Connector

PC

Signal Cable (FD-C35
enclosed)

Video Output
Connector / DVI

• The cables are recommended to lead with slight sag for the smooth motion of

the stand and the Portrait/Landscape display.

4.

Plug the other end of the power cord into a power outlet.

WARNING

Use the enclosed power cord and connect to the standard
power outlet of your country.

Be sure to remain within the rated voltage of the power cord.
Not doing so may cause in fire or electric shock.


Projection

14

2. CABLE CONNECTION
