REAR EXIT CONVERSION

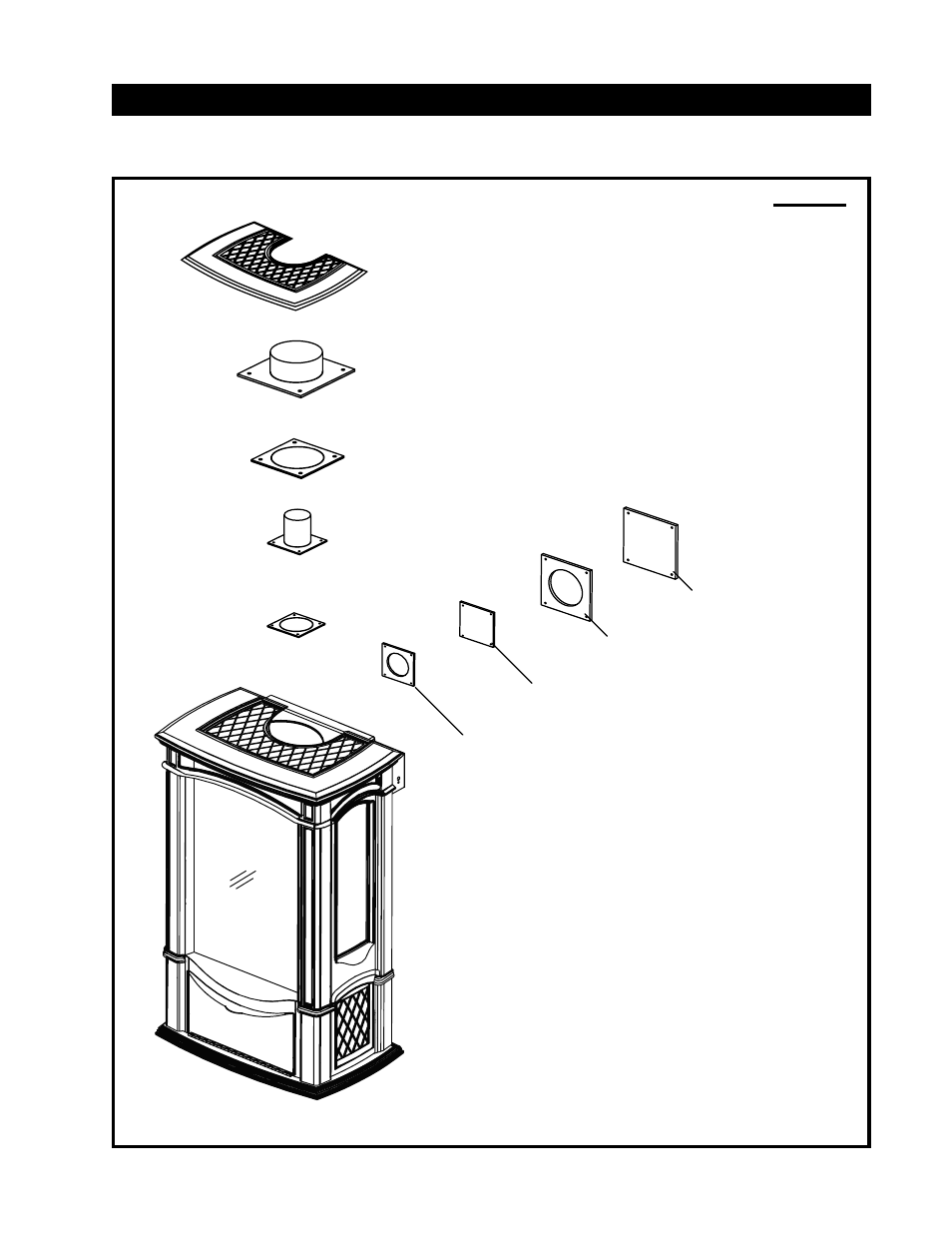

FIGURE 19
4” Gasket
7” Cover Plate
7” Gasket
4” Gasket
4” Collar
7” Gasket
7” Collar
Outer Top
4” Cover Plate
In order to convert the venting confi guration from a top exit to a rear exit, remove components as illustrated:
When reinstalling in the alternate position: Check gaskets for tears, replace if necessary to ensure a proper seal.
