10

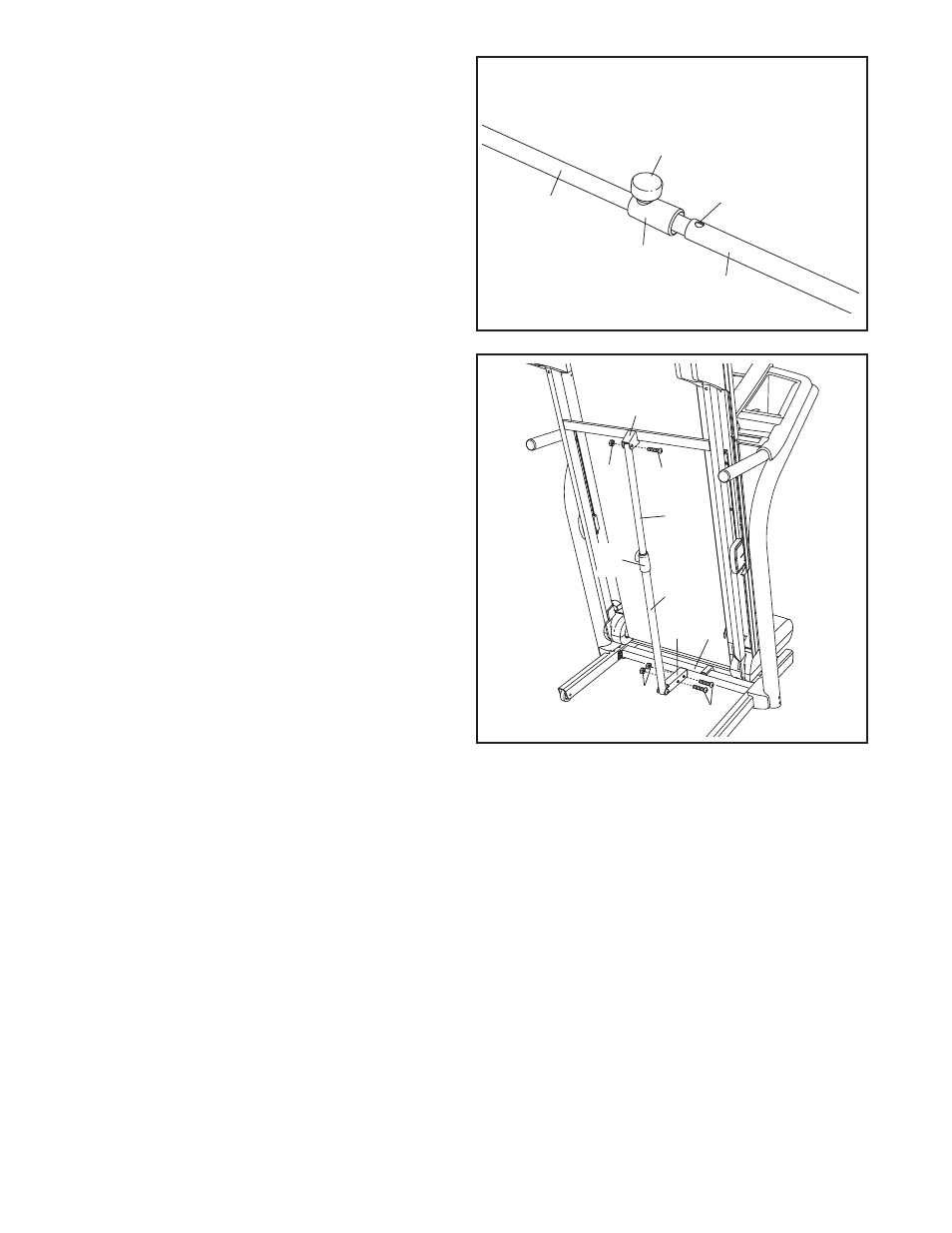

11. Raise the Frame (56) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (53) so that the large
barrel and the Latch Knob (54) are in the posi-
tions shown.
Attach the Latch Bracket (14) and Storage Latch
(53) to the Base (83) with two 3/8" x 2" Bolts (4)
and two 3/8" Nuts (8).
Attach the upper end of the Storage Latch (53)
to the bracket on the Frame (56) with a 3/8" x 2"
Bolt (4) and a 3/8" Nut (8). Note: It may be nec-
essary to move the Frame back and forth to
align the Storage Latch with the bracket.
Lower the Frame (56) (see HOW TO LOWER
THE TREADMILL FOR USE on page 21).
53
8
8
Large
Barrel
83 14
4
56
11
4
54
10. Identify the Storage Latch (53). Remove the tie
from the end of the tube. Make sure that the
sleeve has been slid over hole 1 and that the
Latch Knob (54) is locked into the indicated
hole.
Pull on the sleeve to make sure that it is
locked into place.
10
54
Sleeve
Hole
Tube
53
